Power Window Switch
>>

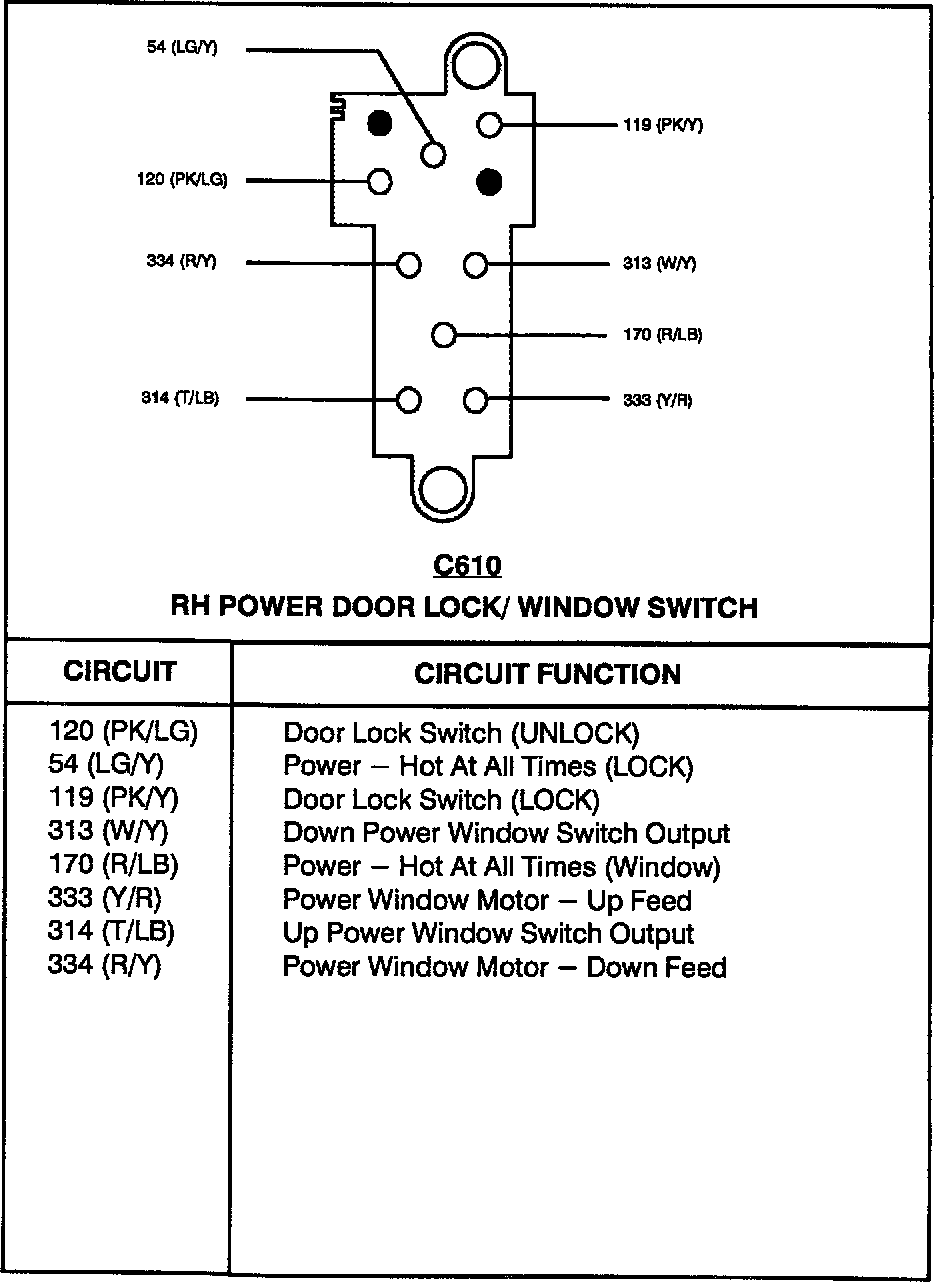

Right Front Window Control Switch
Right Front Window Control Switch
Connector Faces/Pinout Charts:
