LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1992
>>
E 350 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

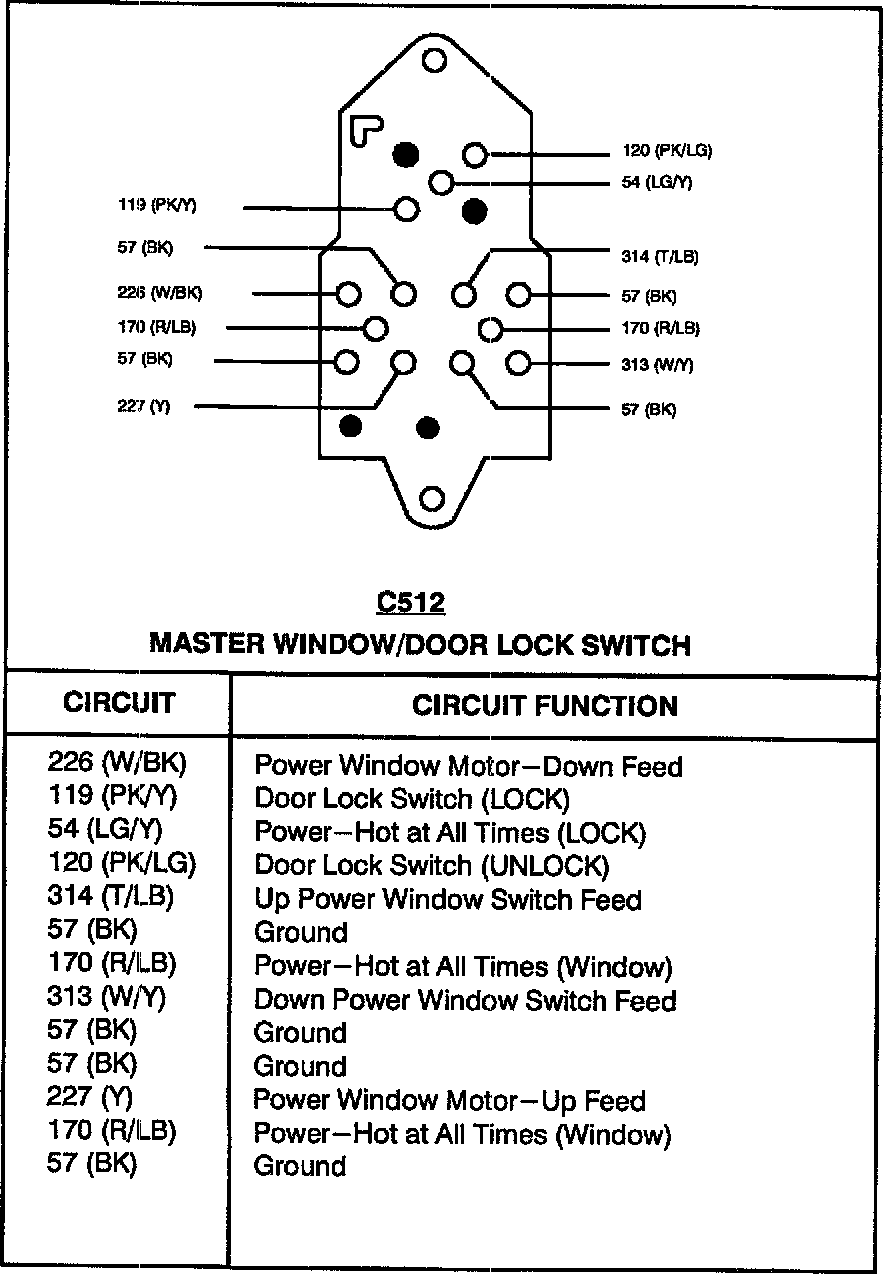

Master Window Control Switch
Master Window Control Switch
Connector Faces/Pinout Charts:
