E 350 Van V8-7.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
Control Module, A/T

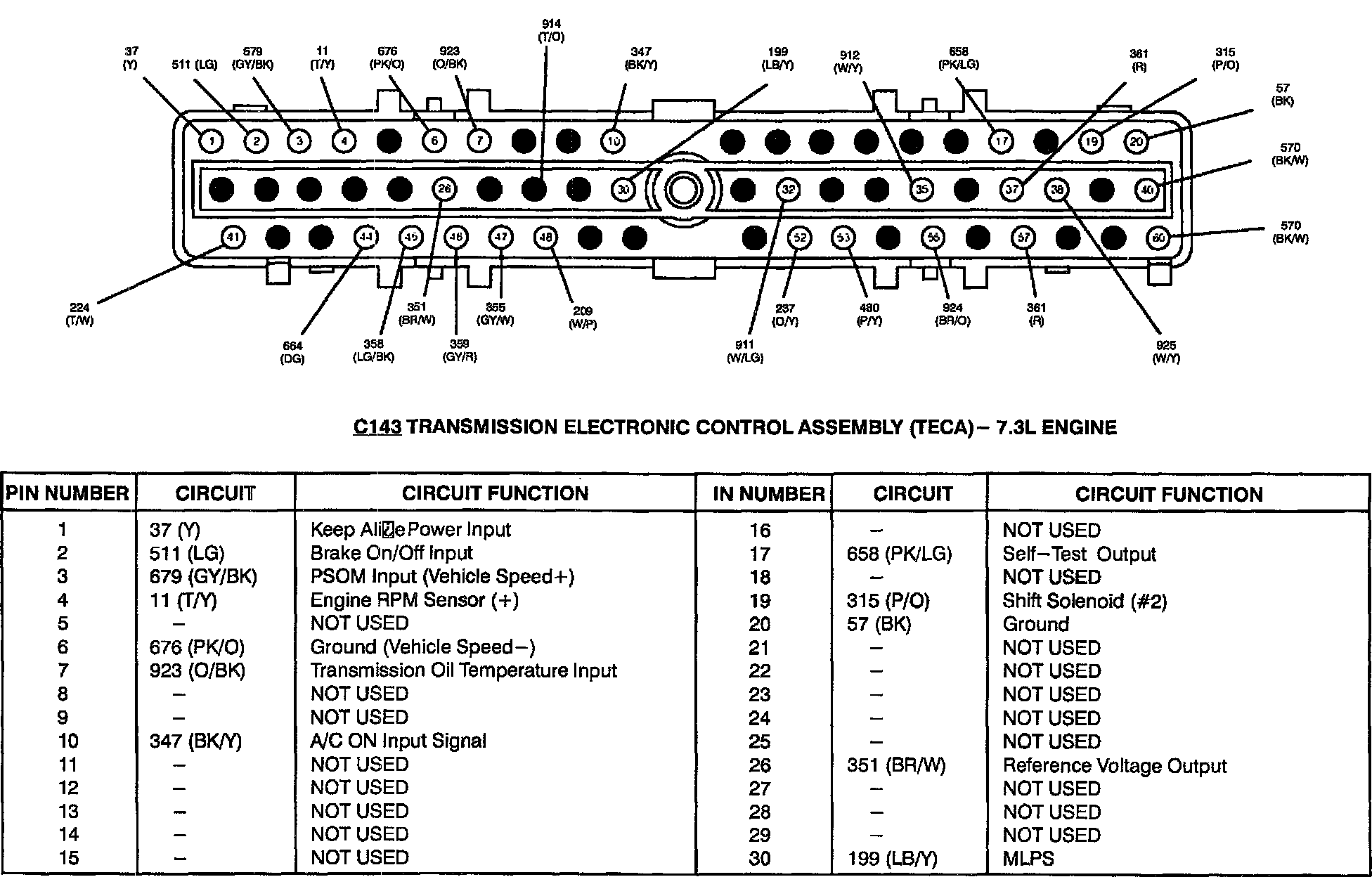

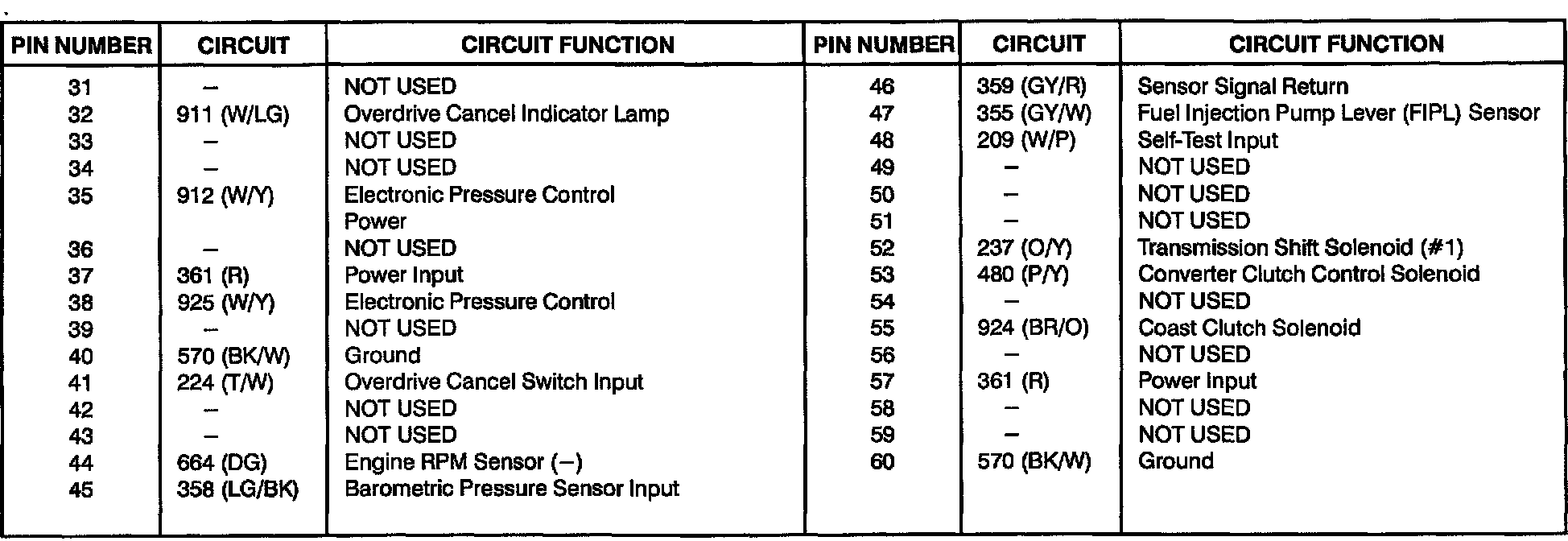

Connector Faces/Pinout Charts:
Connector Faces/Pinout Charts:
