Electronic Brake Control Module
Electronic Brake Control Module

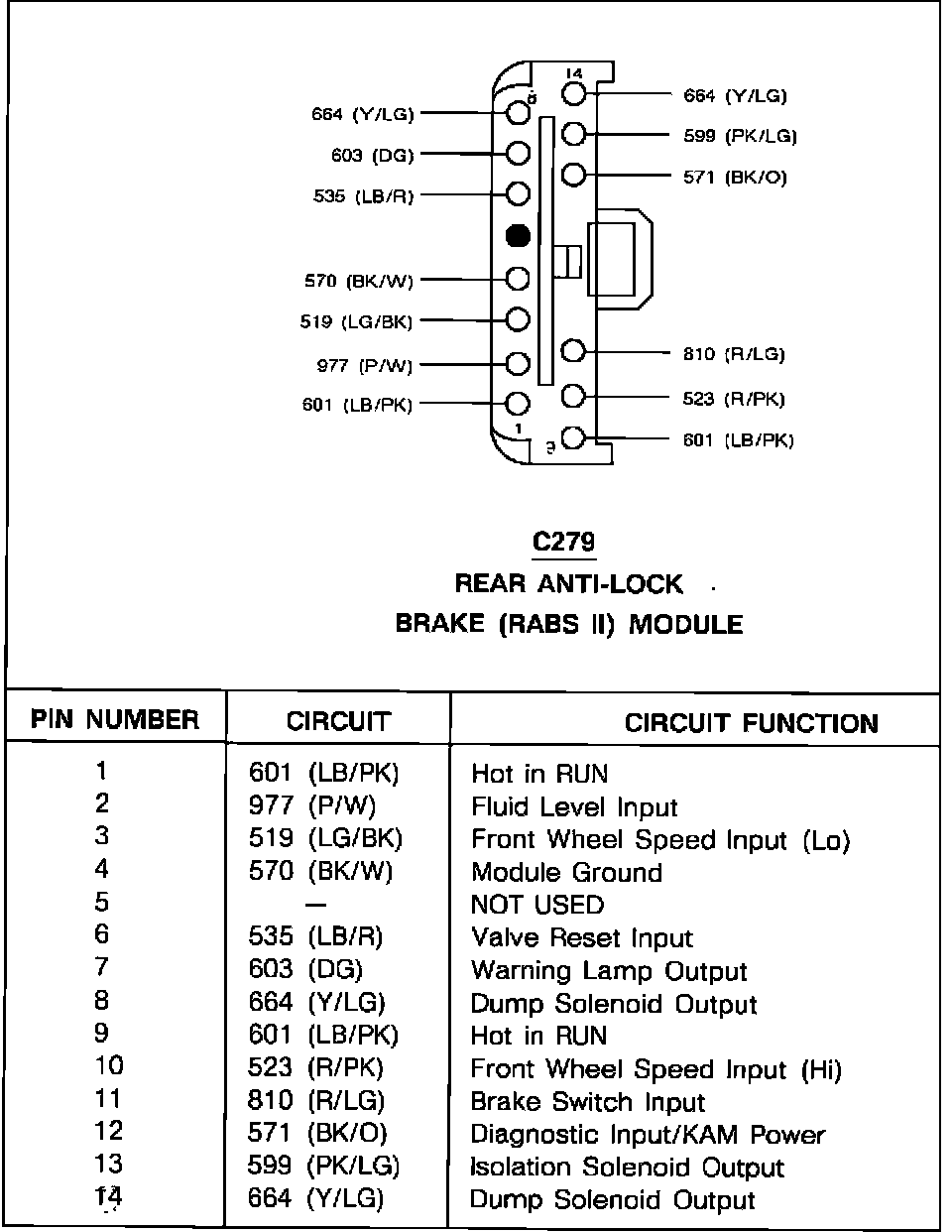

Rear Anti-Lock Brake (RABS II) Module:
