Ford
>>
1991
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Control Module
Ignition Control Module

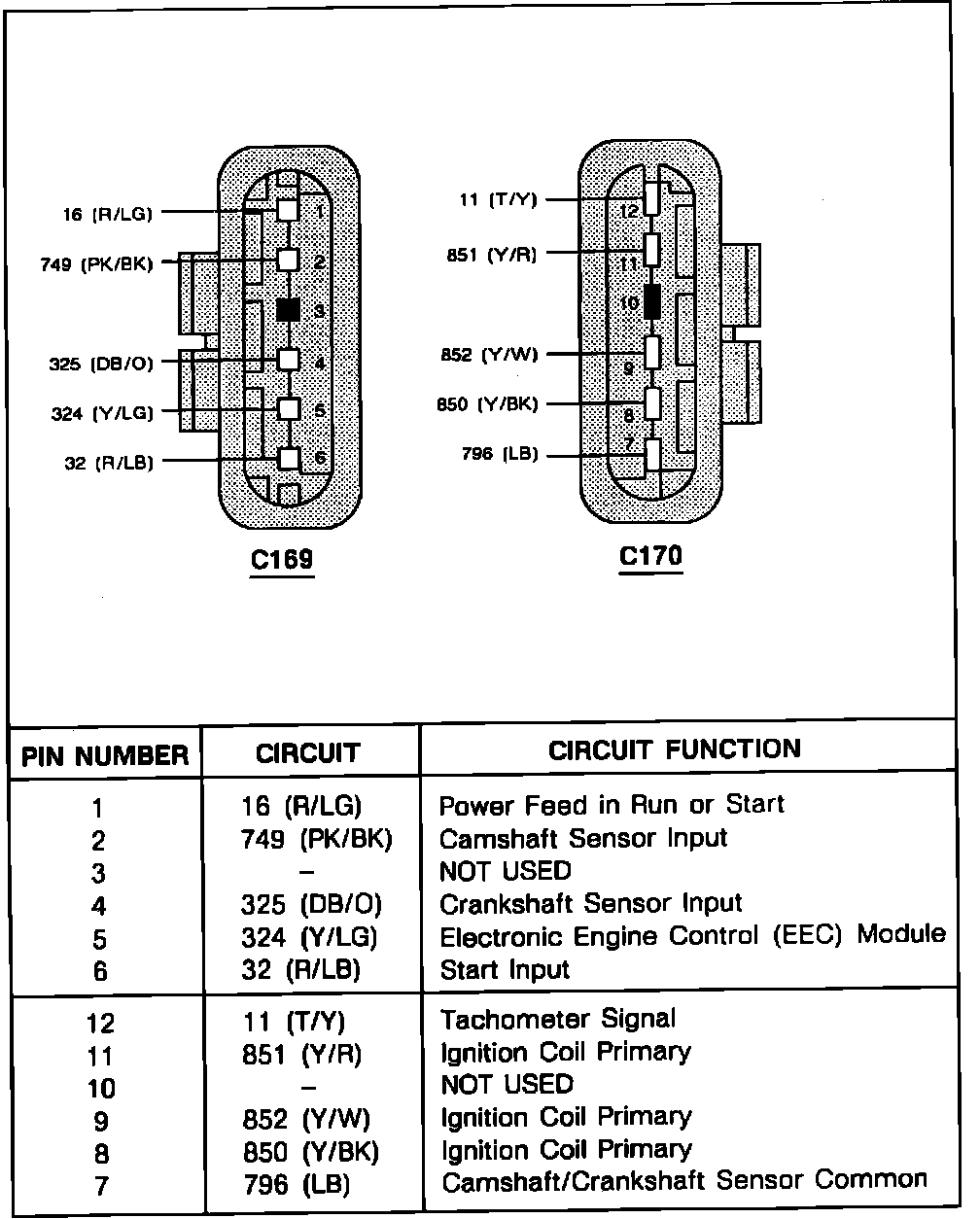

Distributorless Ignition System (DIS) Module Connector:
