Cruise Control Servo: Locations

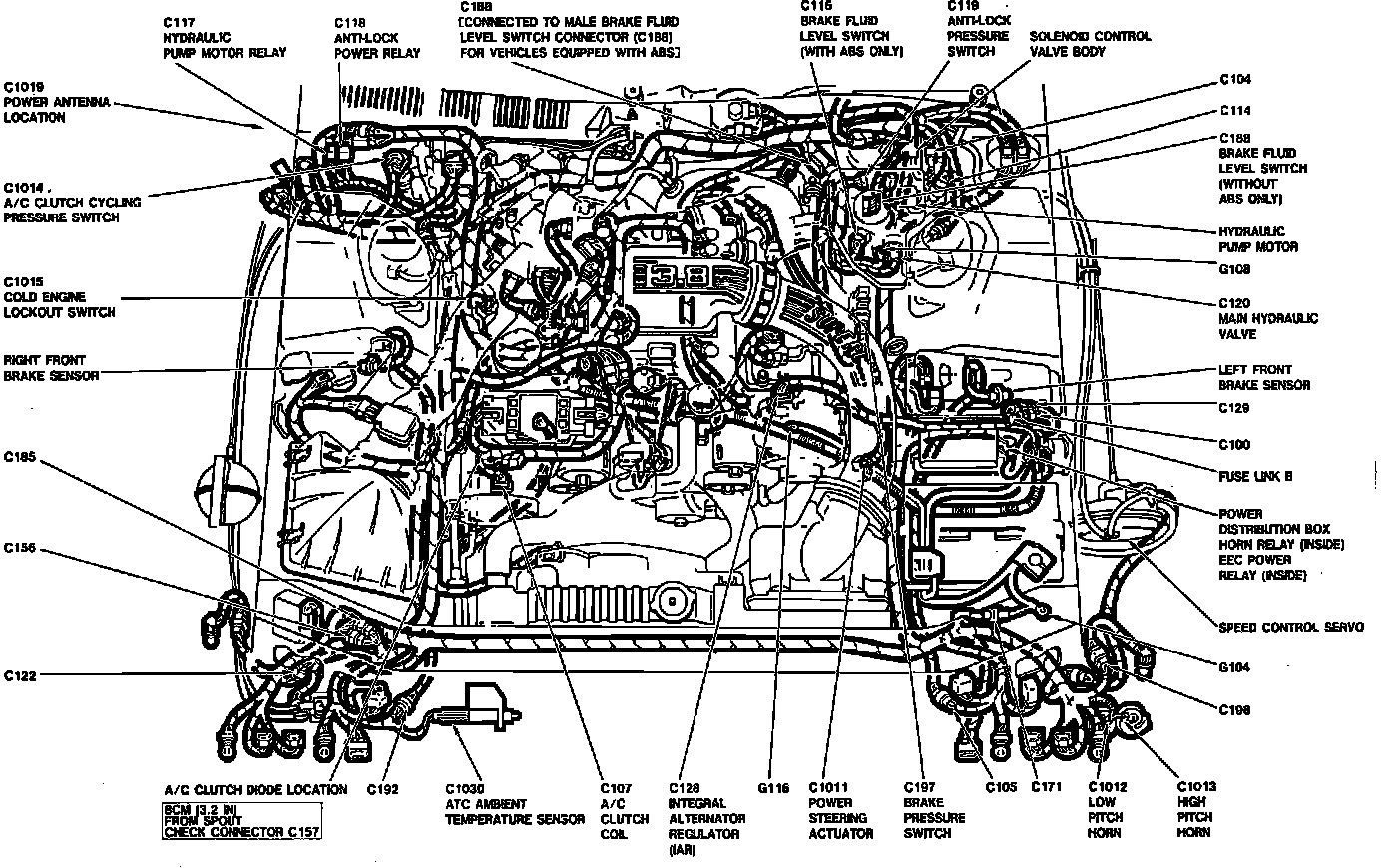

Engine Compartment Components.:




LH Front Of Engine Compartment, Inside Fender

Applicable to: 3.8L/V6-232 Except Supercharged

Engine Compartment Components.:




LH Front Of Engine Compartment, Inside Fender

Applicable to: 3.8L/V6-232 Supercharged

Engine Compartment Components.:




LH Front Of Engine Compartment, Inside Fender

Applicable to: 5.0L/V8-302
