Engine Controls

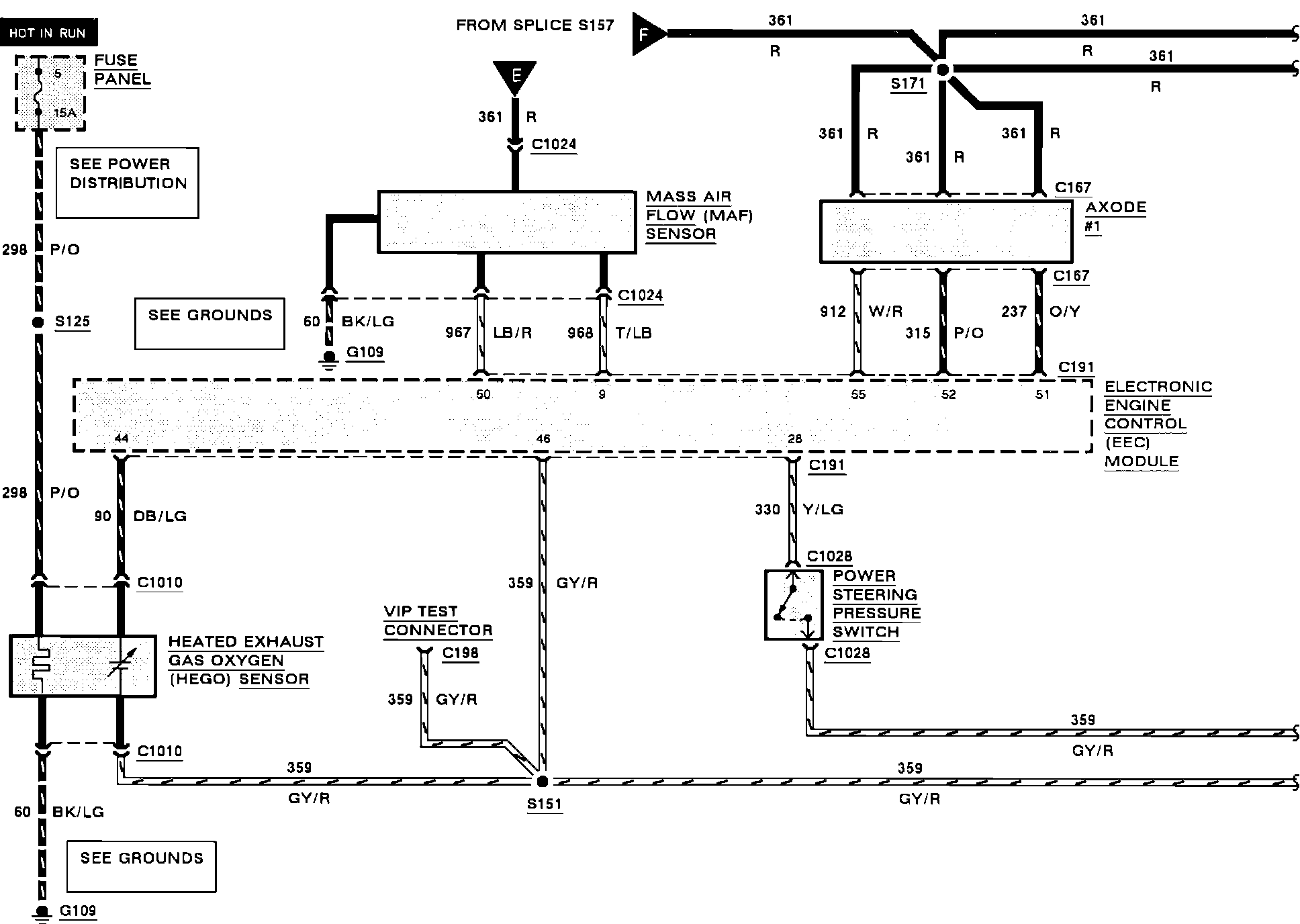

Electronic Engine Control (3.0L):

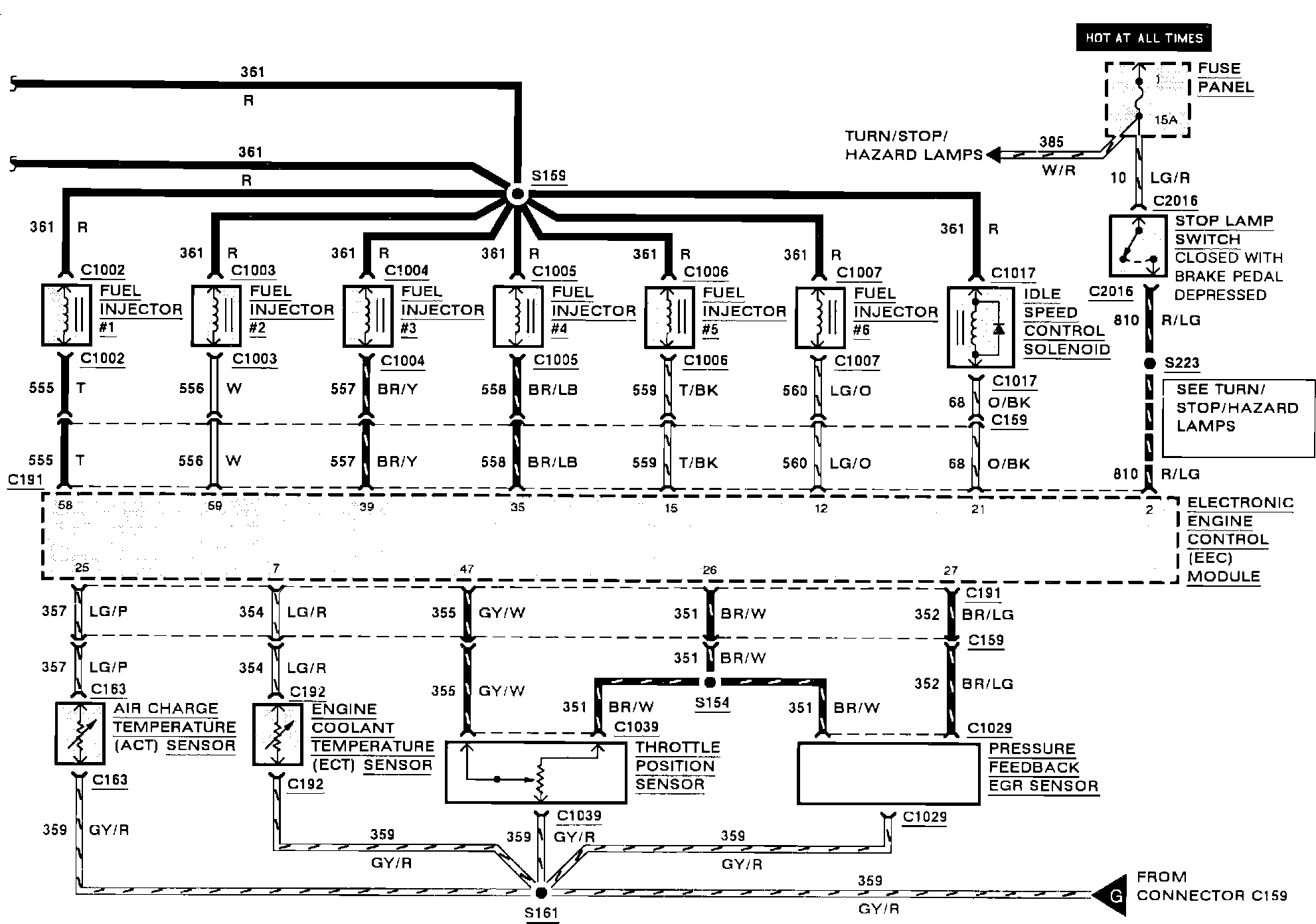

Electronic Engine Control (3.0L):

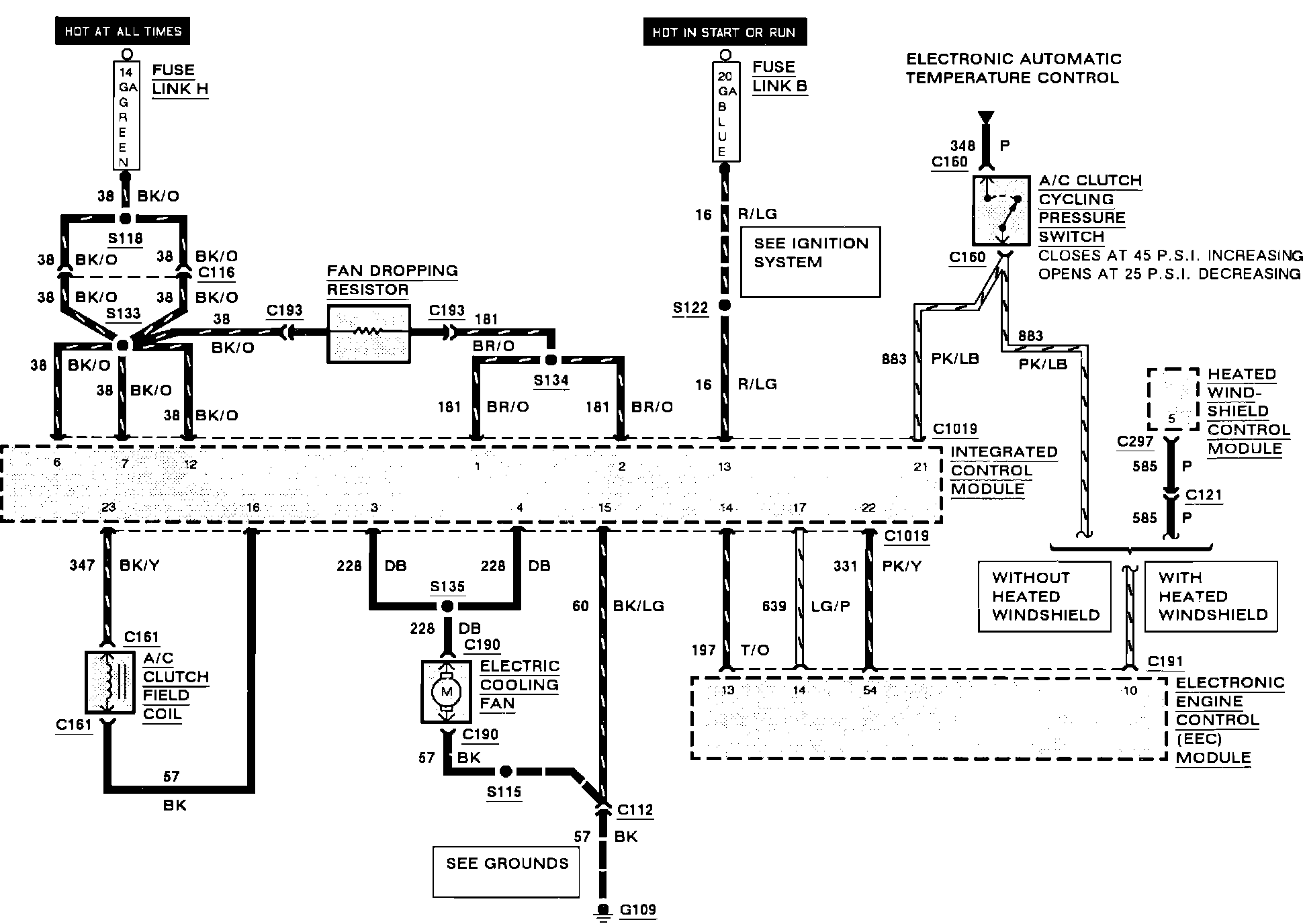

Electronic Engine Control (3.0L):

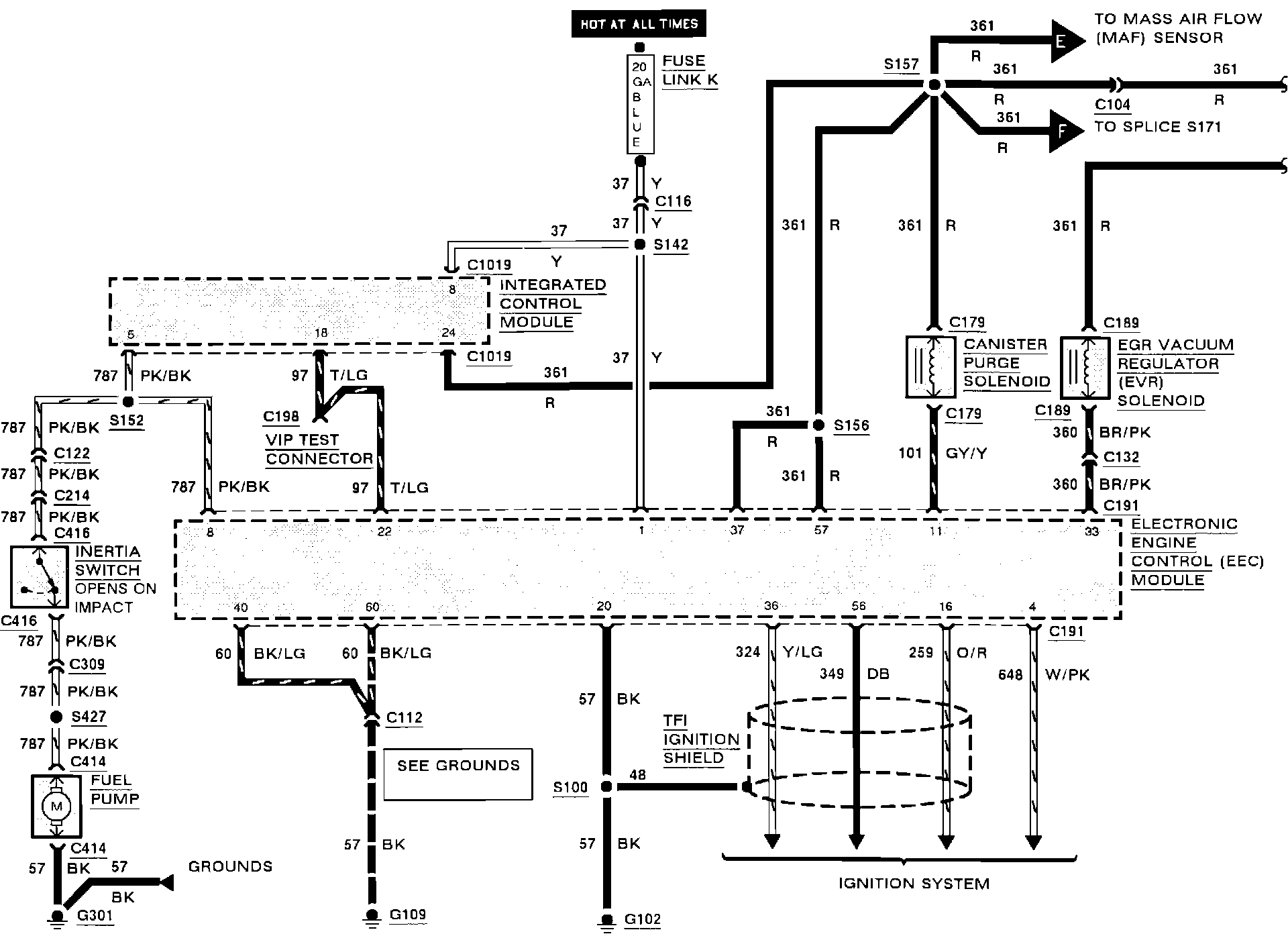

Electronic Engine Control (3.0L):






Electronic Engine Control (3.0L):
