Engine Controls

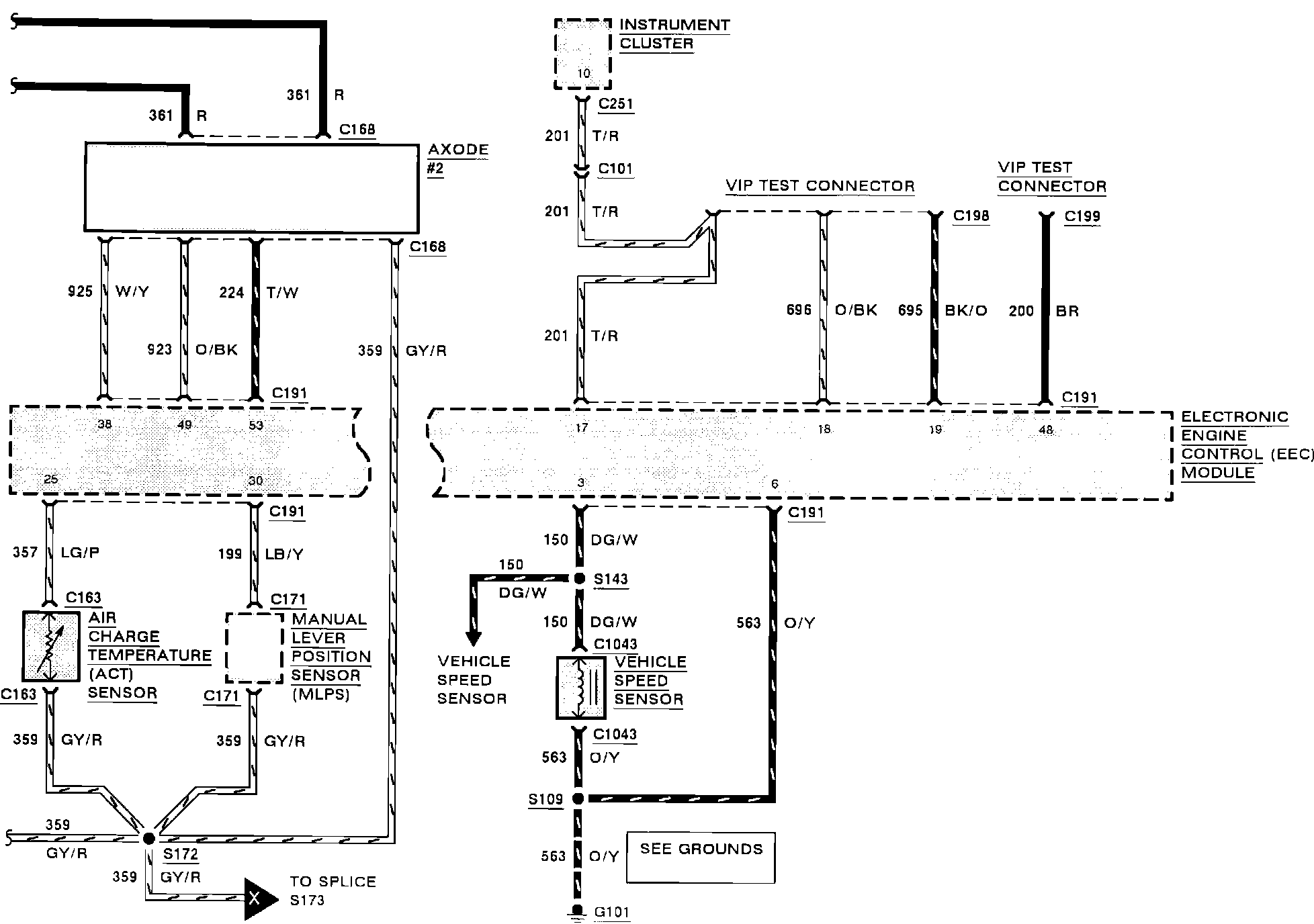

Electronic Engine Control (2.5L):

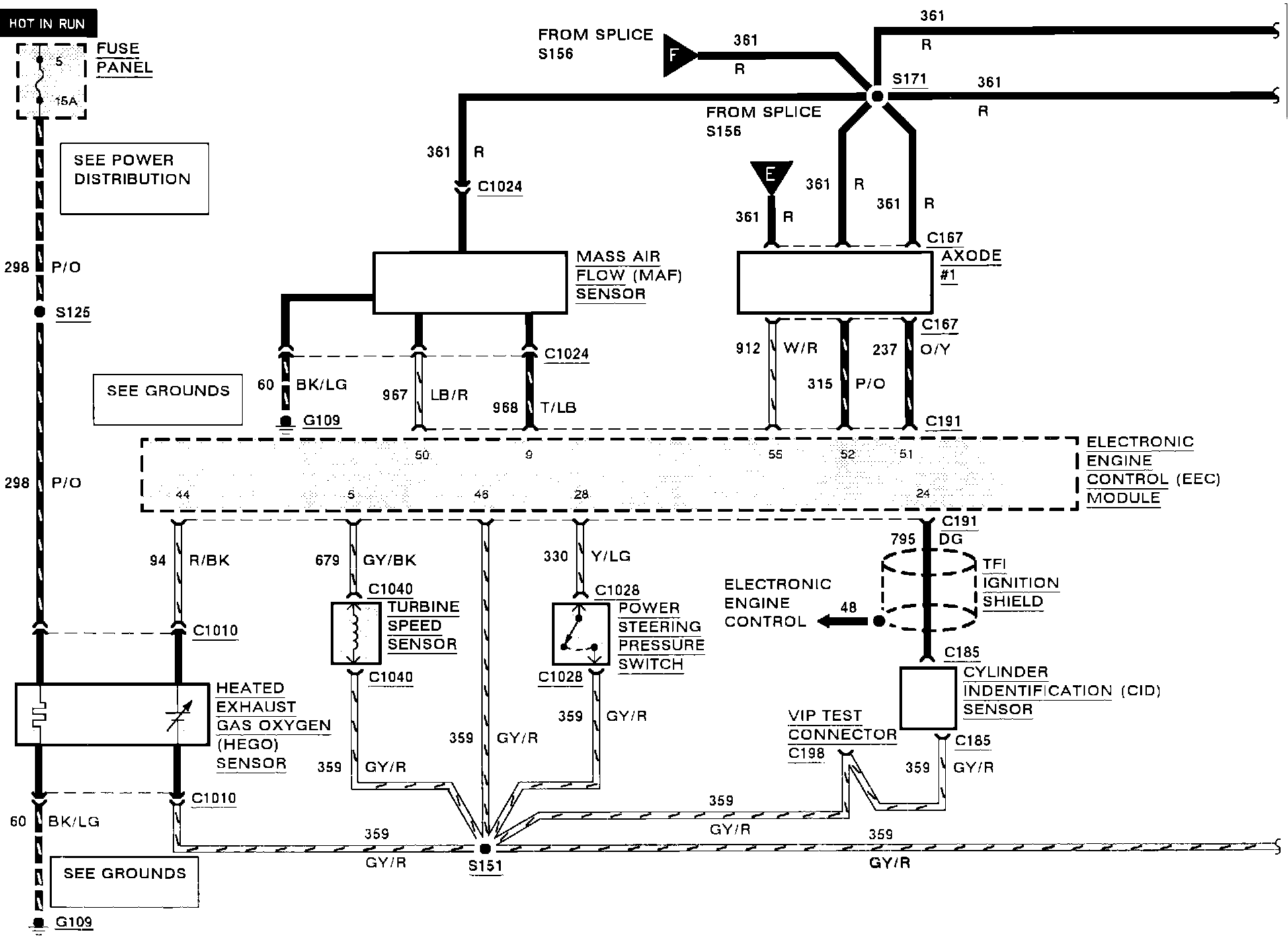

Electronic Engine Control (2.5L):

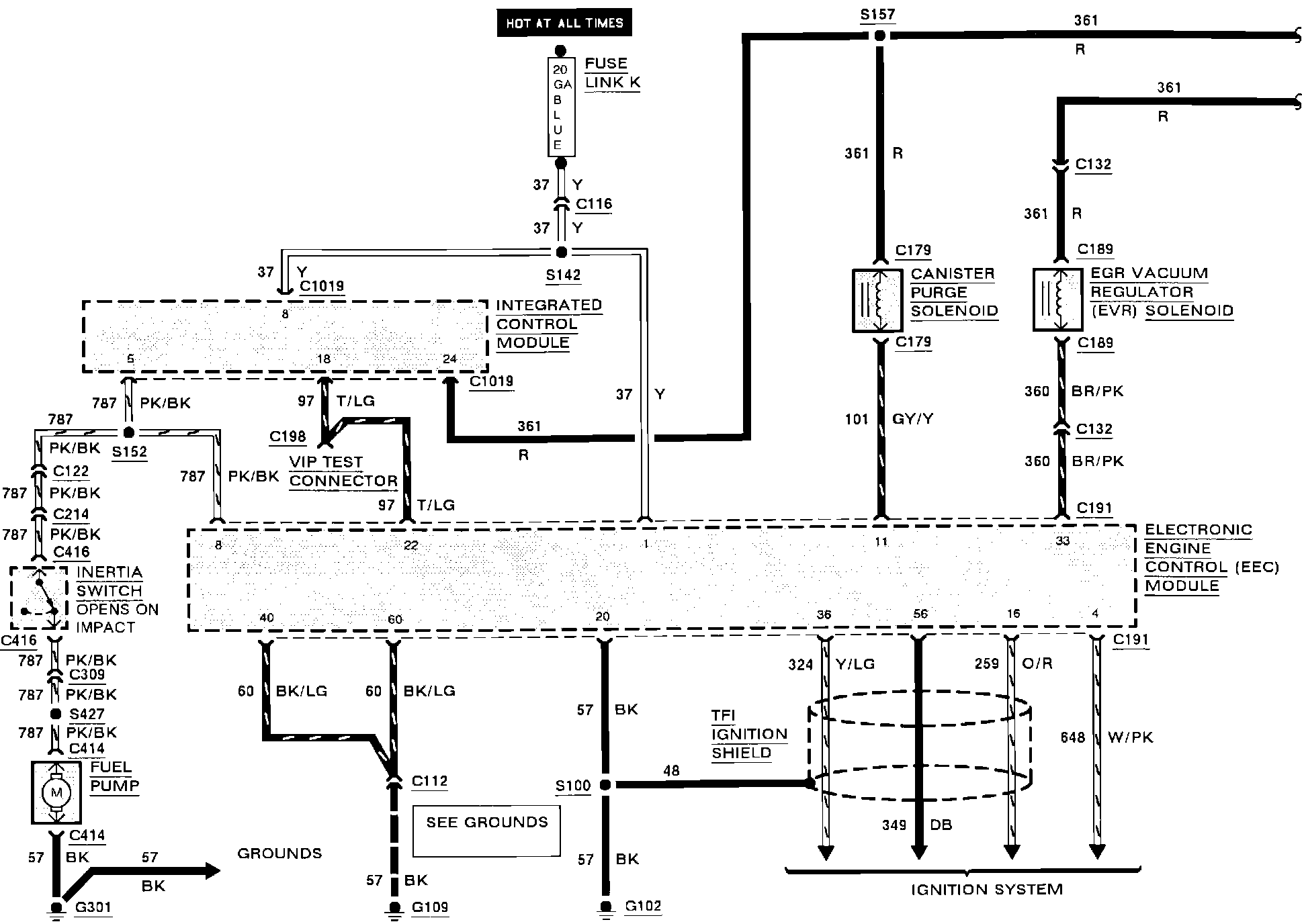

Electronic Engine Control (2.5L):

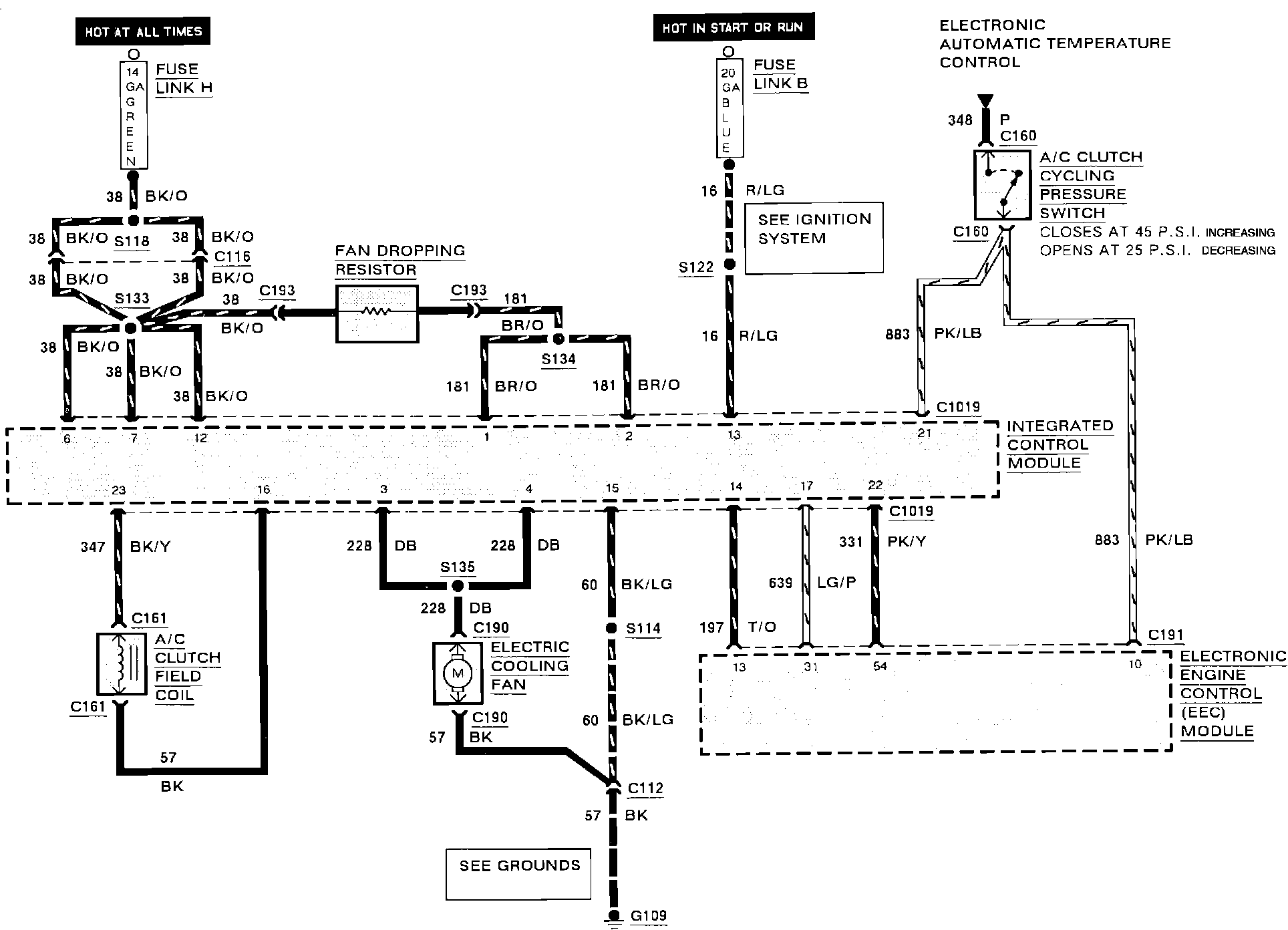

Electronic Engine Control (2.5L):

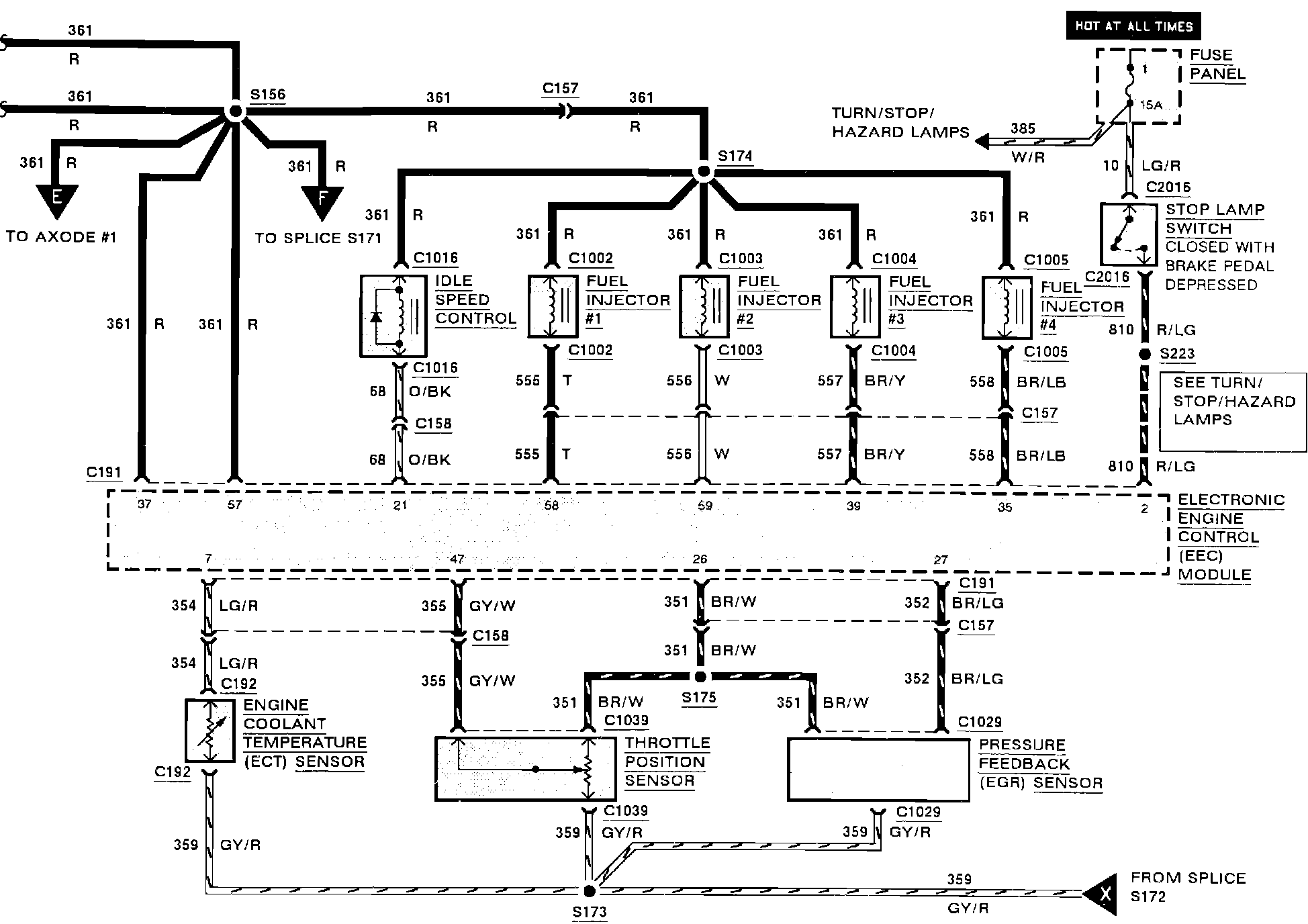

Electronic Engine Control (2.5L):
