Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Dashboard / Instrument Panel
Dashboard / Instrument Panel

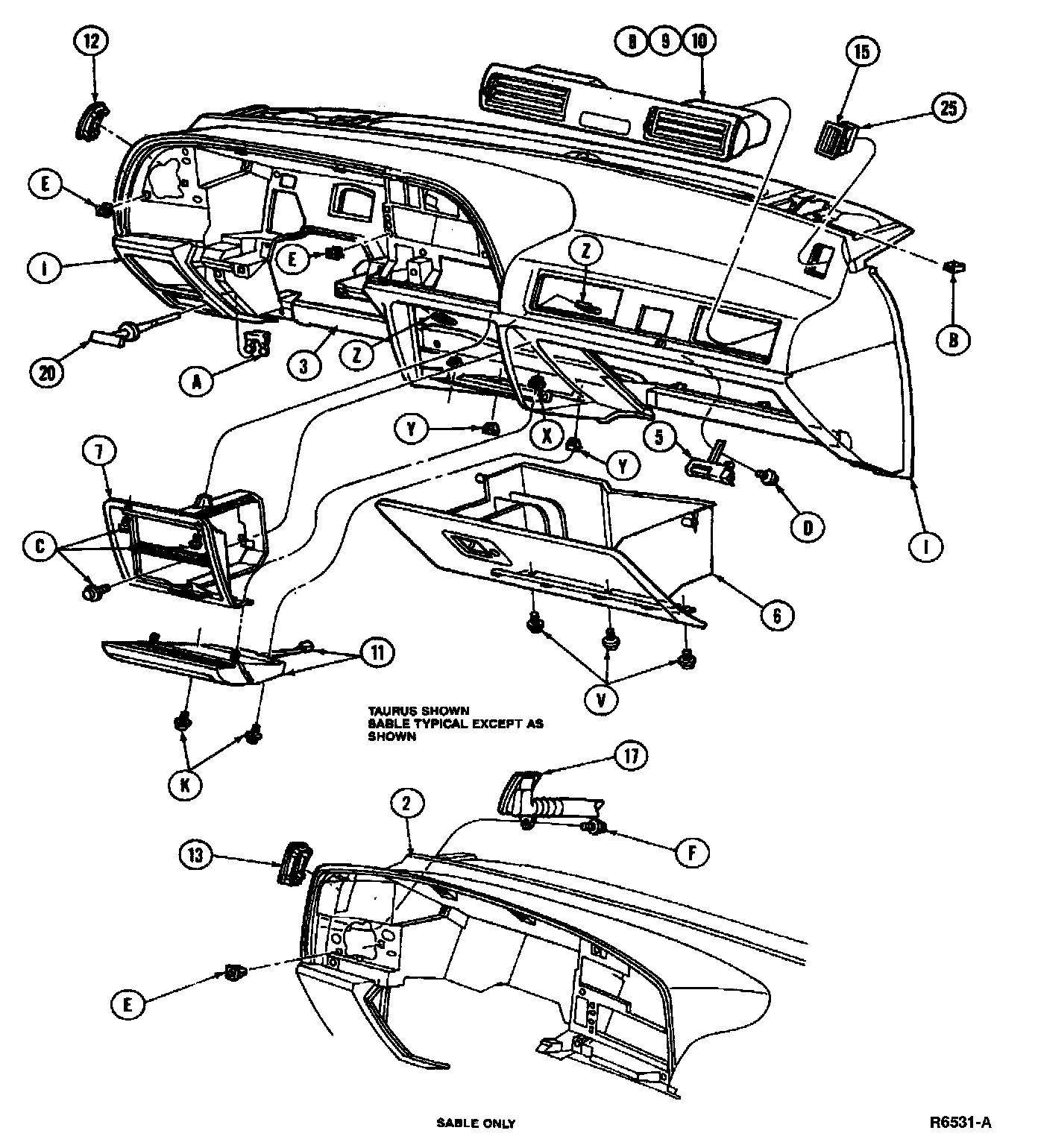

Front

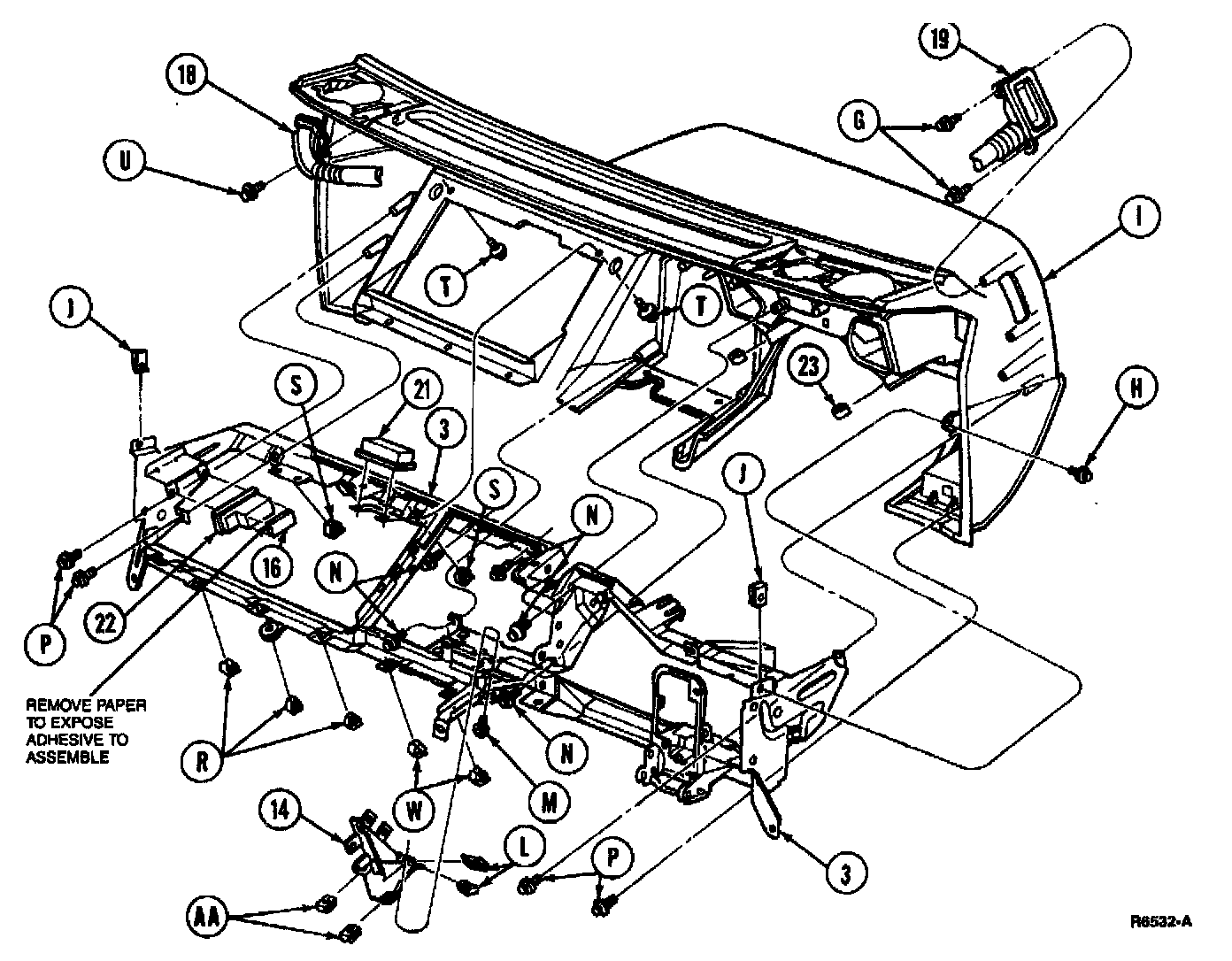

Rear

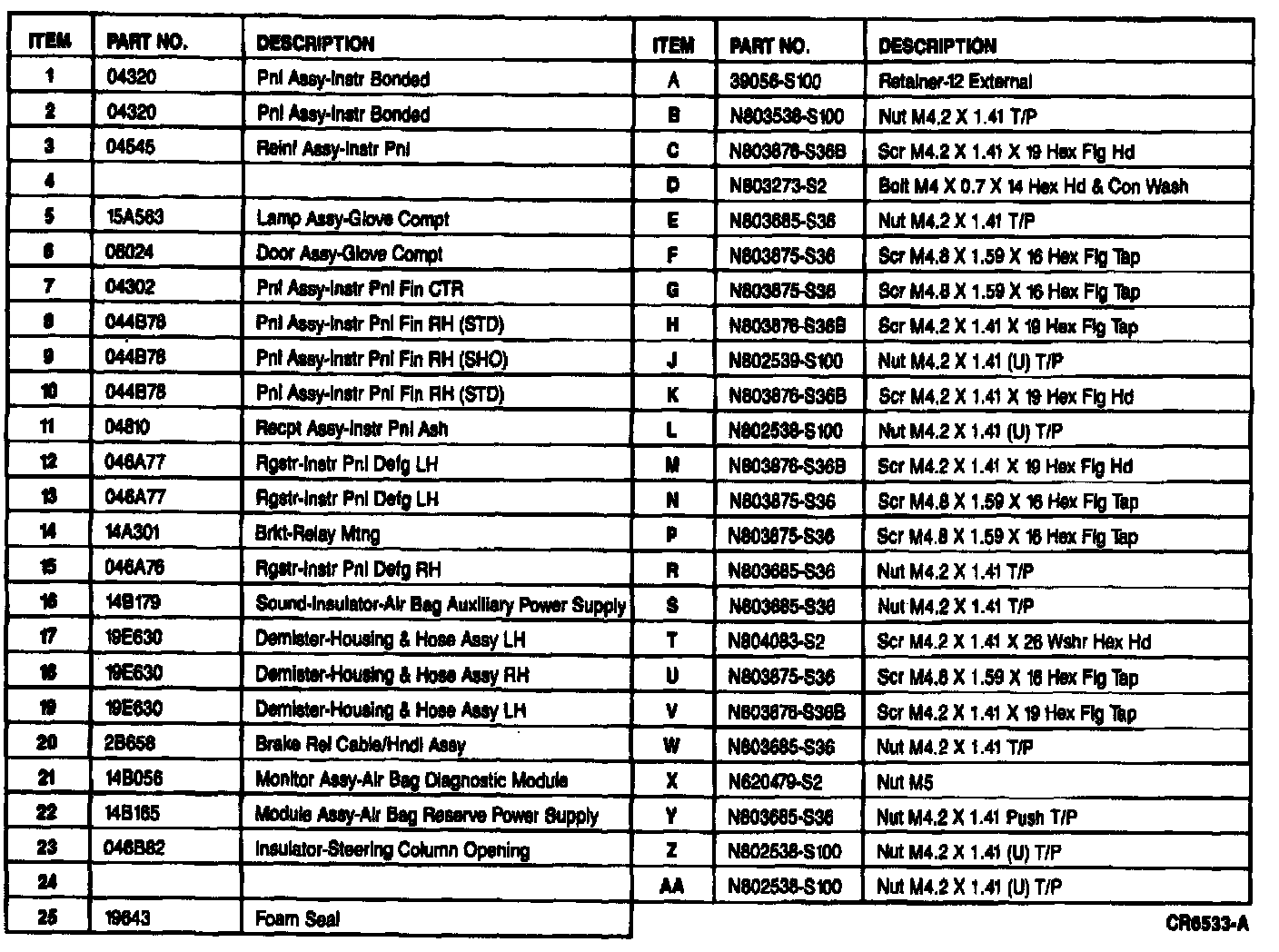

Exploded and Harness View Index
