Ford
>>
1991
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Power Door Lock Switch
>>
Less Keyless Entry System
Less Keyless Entry System

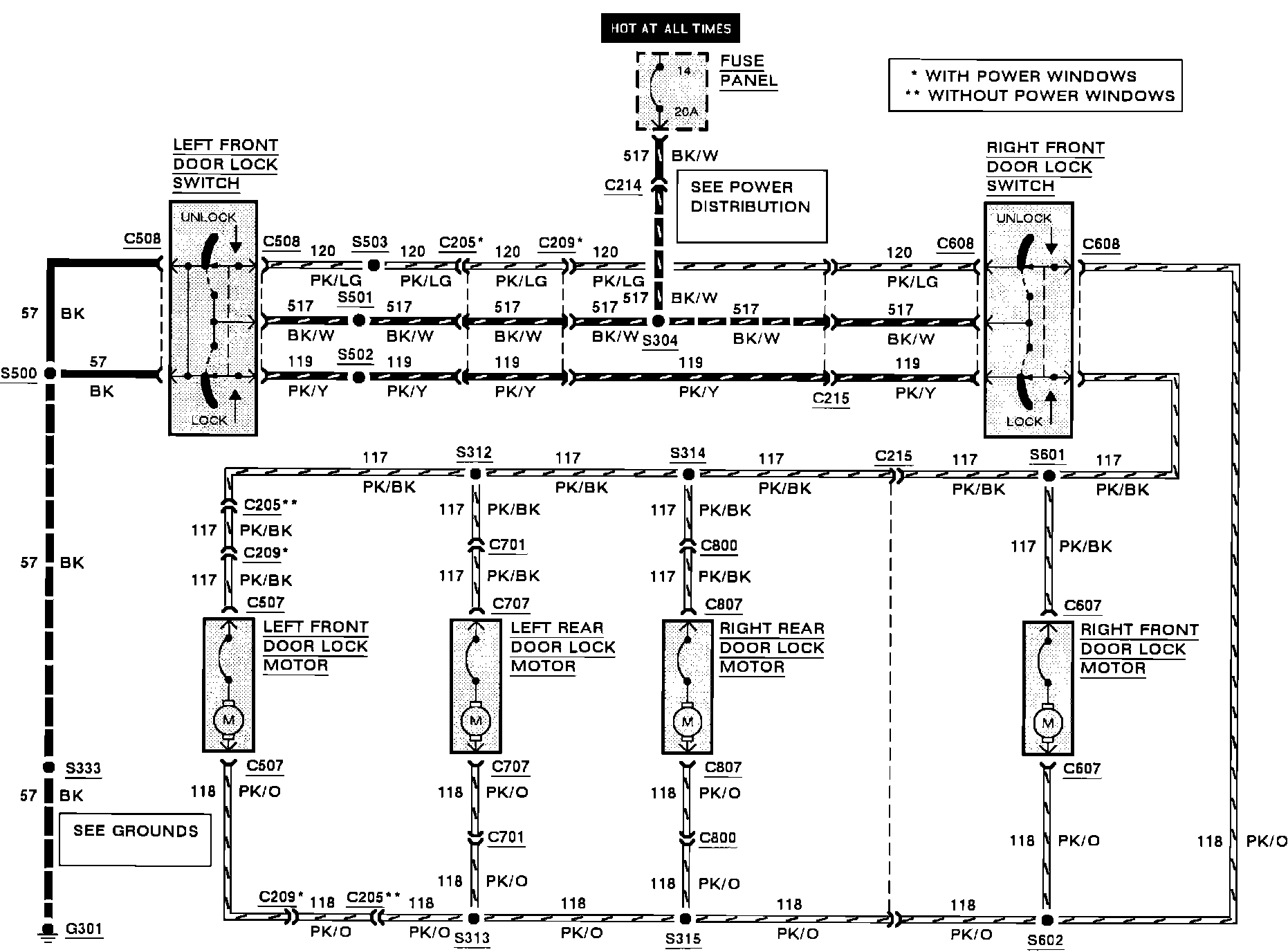

Power Door Locks:
