DP - Testing Notes and Schematic

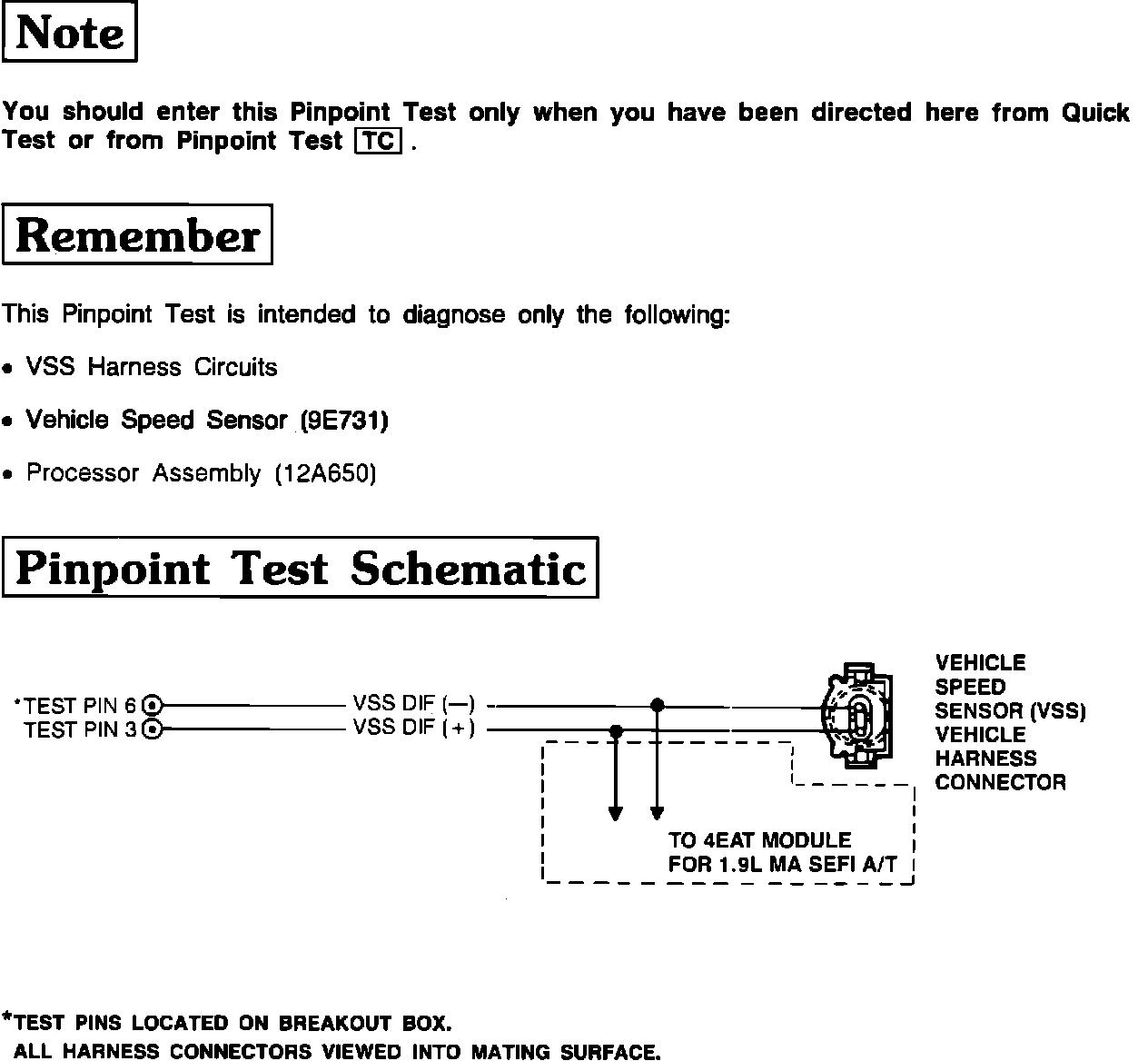

Pinpoint Test DP, Testing Notes And Schematic:



Pinpoint Test DP, Test Schematic Wire Colors:
