Probe L4-133 2.2L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Computers and Control Systems
>>
System Specifications
>>
Diagnostic Reference Values
>>
Non-Turbo W/Manual Transmission
Non-Turbo W/Manual Transmission
*** UPDATED BY TSB #91-14-B1 DATED 7/1/91

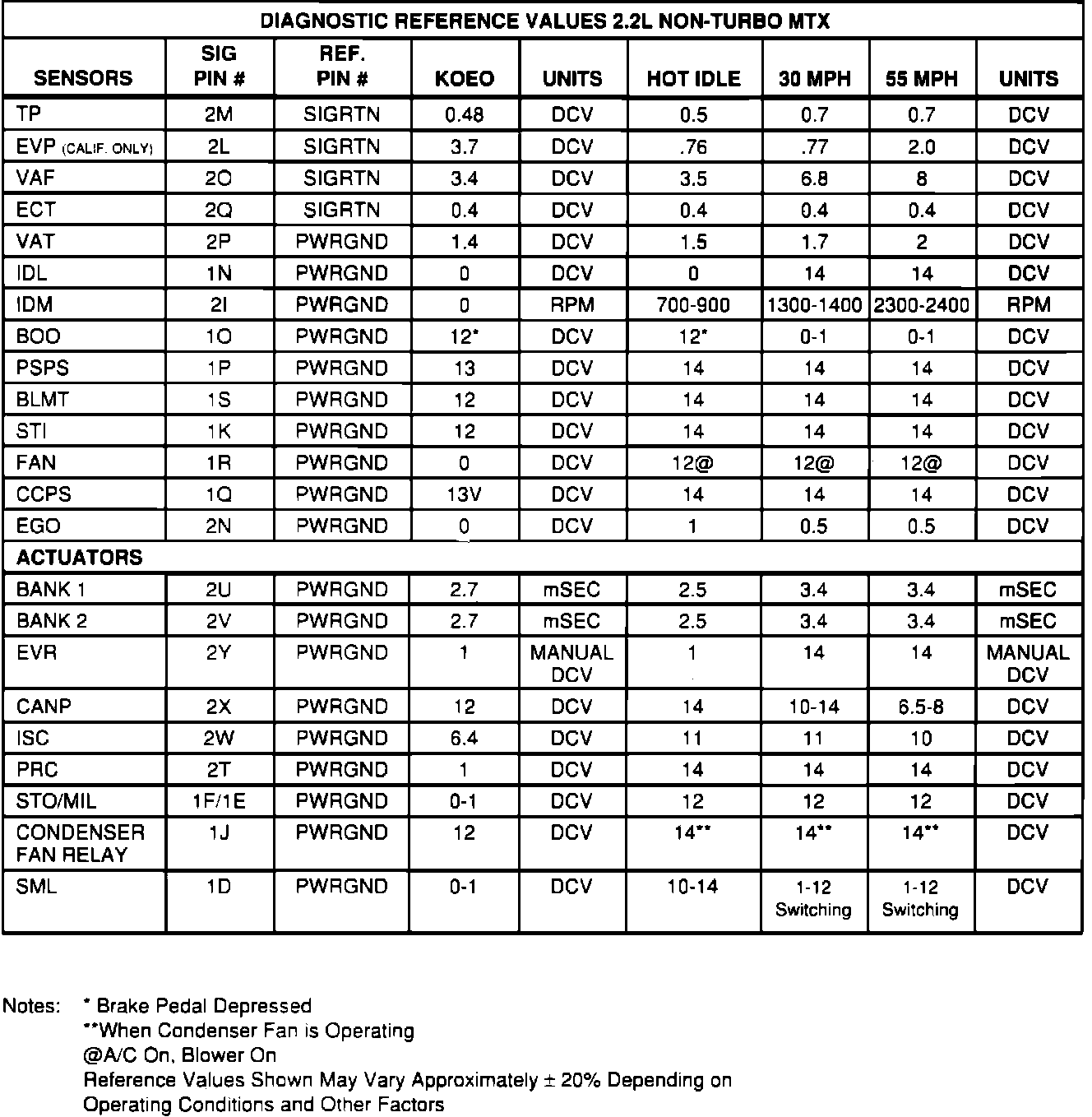

Diagnostic Reference Values 2.2L MTX:
