Home >> Ford >> 1991 >> Mustang L4-140 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test E - Continuous Memory Code 213 >> Step E9

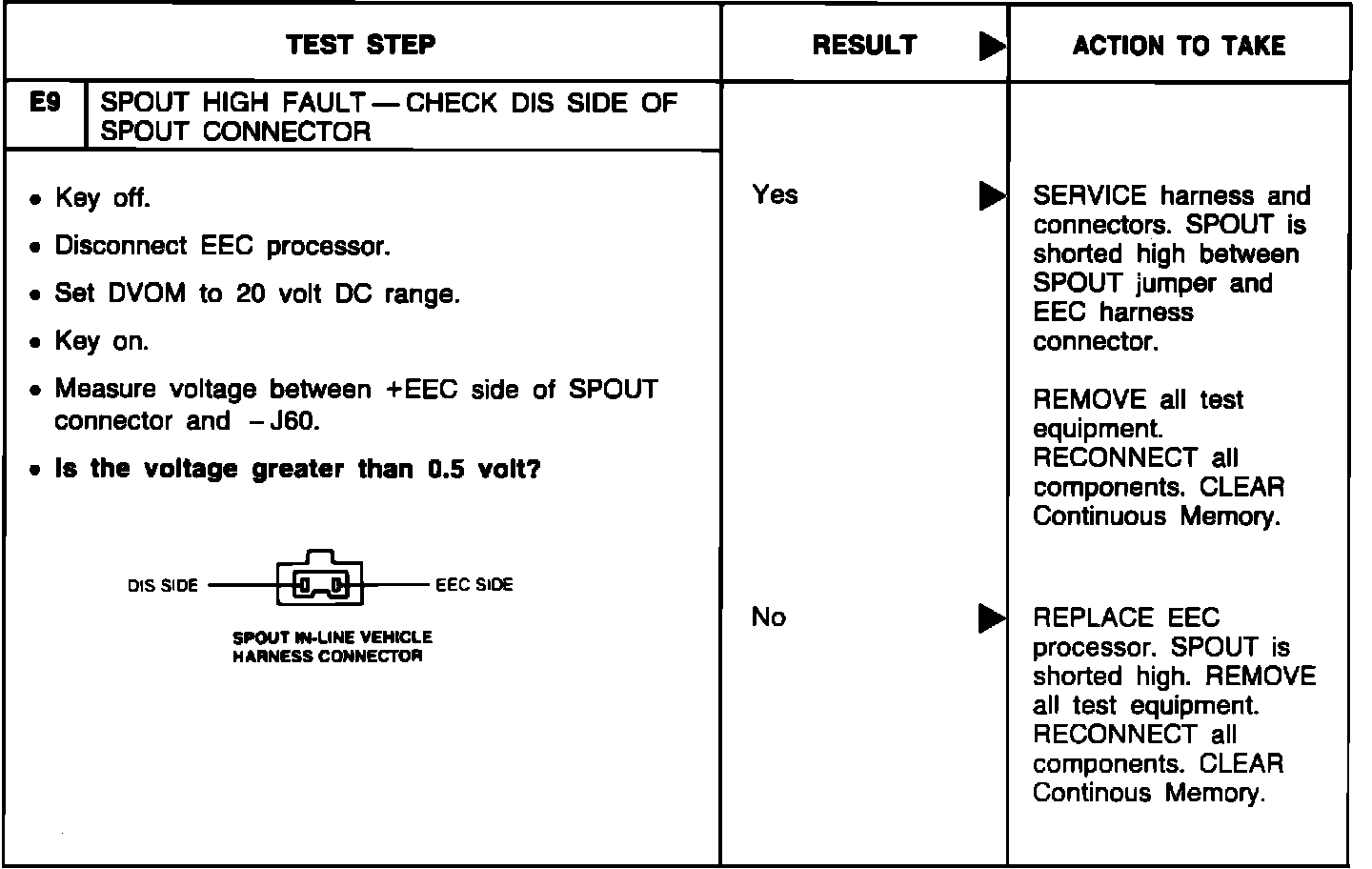

Step E9

Distributorless Ignition System Pinpoint Test:
