Diagnostic Mode Switch/Connector: Diagrams

Diagnostic Connector (STO/STI):

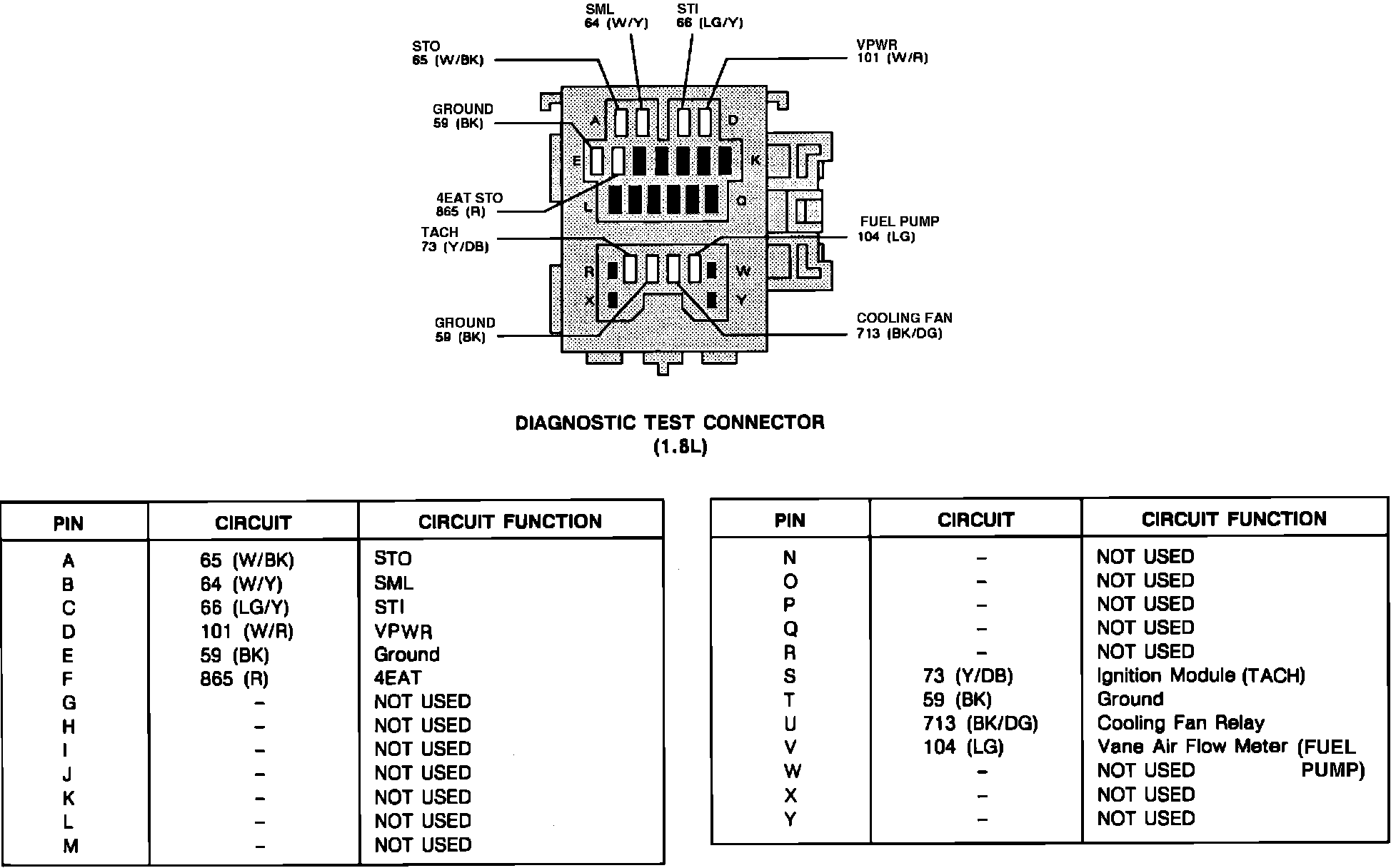

Diagnostic Test Connector (STO/STI):
