Vehicle Speed Sensor: Locations

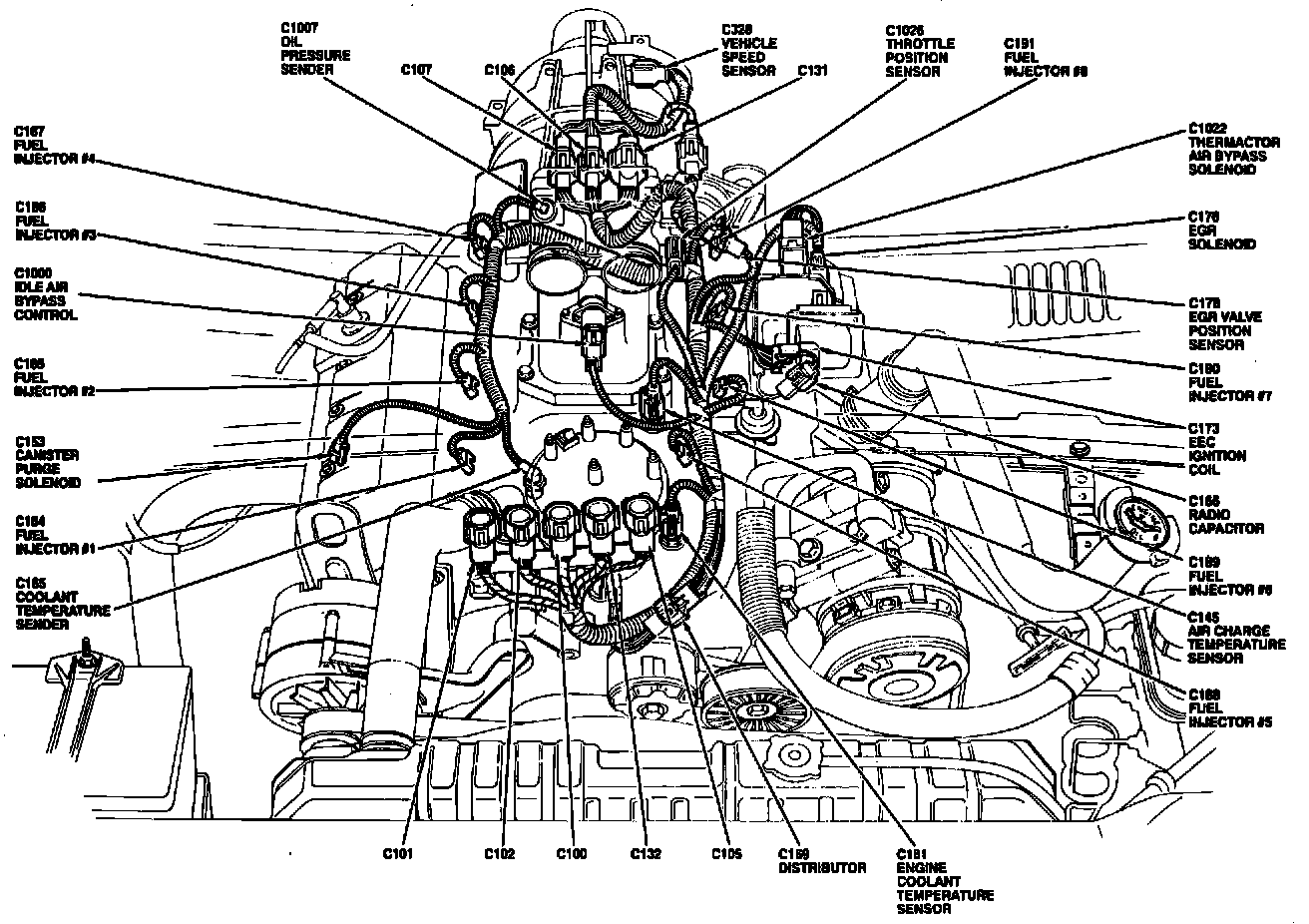

Engine Component Locations.:

LH Top Of Transmission

Applicable to: 1991 7.5L/V8-460

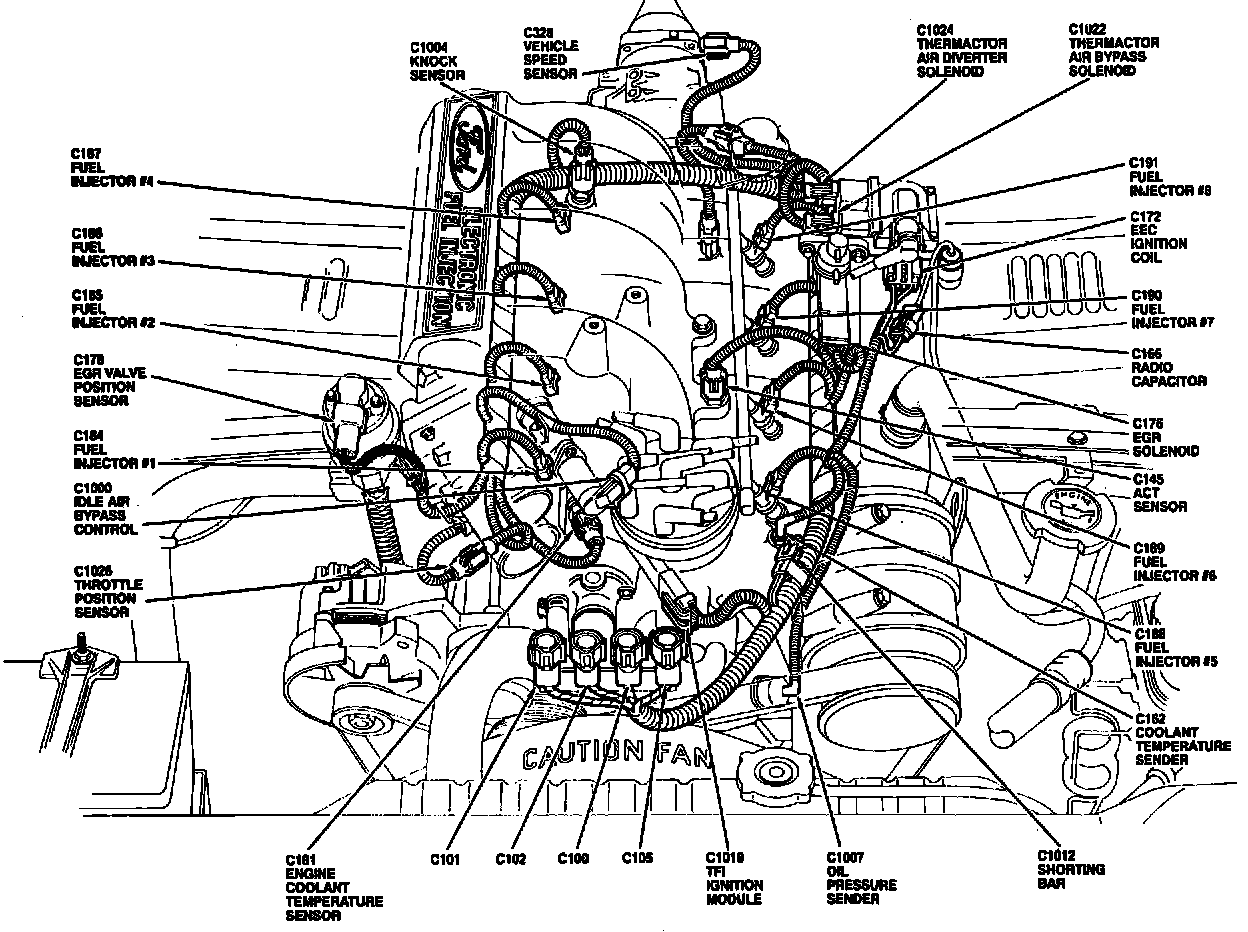

Engine Component Locations.:

LH Top Of Transmission

Applicable to: 1991 5.0L/V8-302

Engine Component Locations.:

LH Top Of Transmission

Applicable to: 1991 7.3L/V8-445

Body Component Locations.:

LH Top Of Transmission

Applicable to: 1991
