Base Ignition Timing Specifications

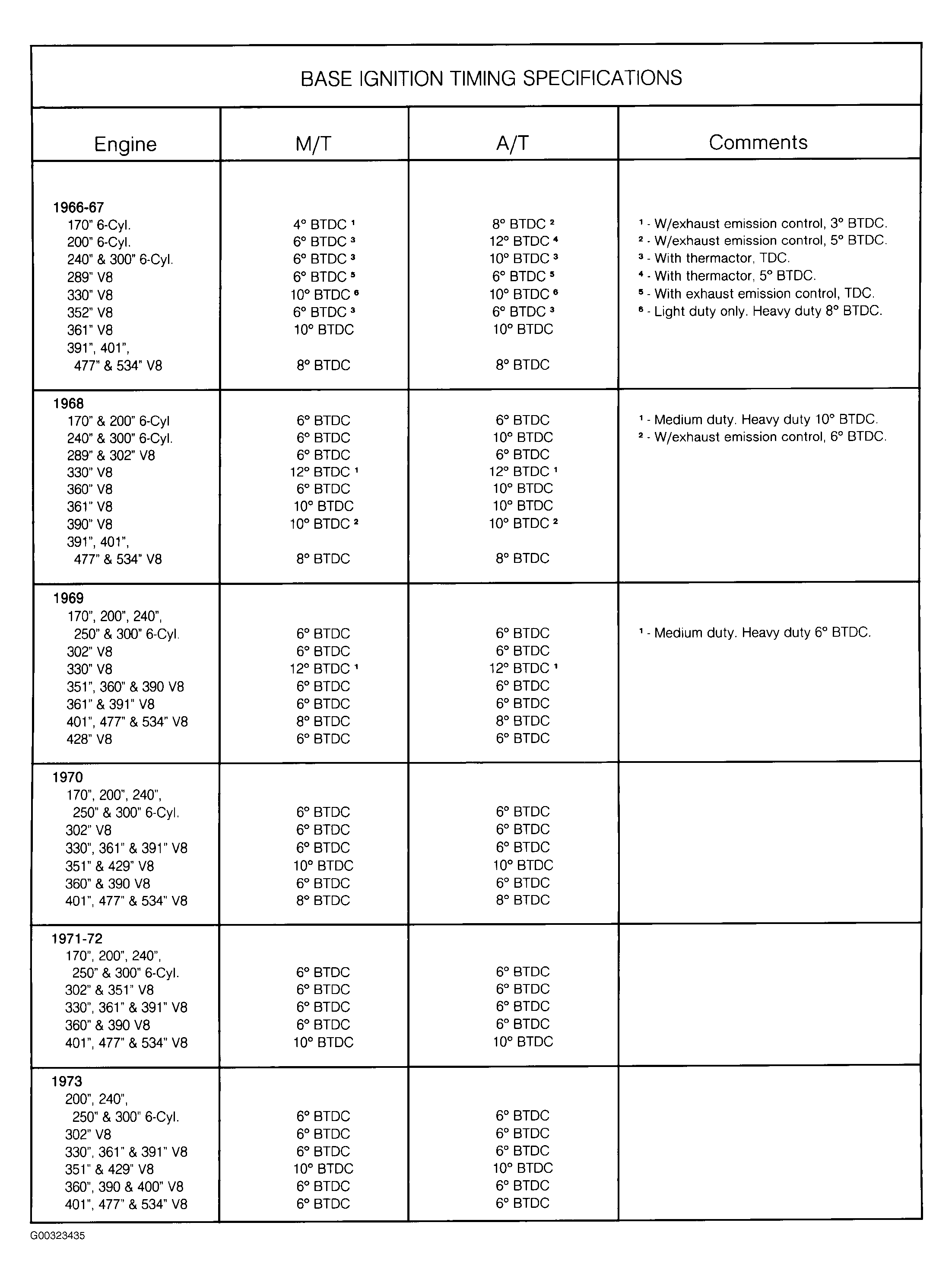

Fig 1:

G00323435

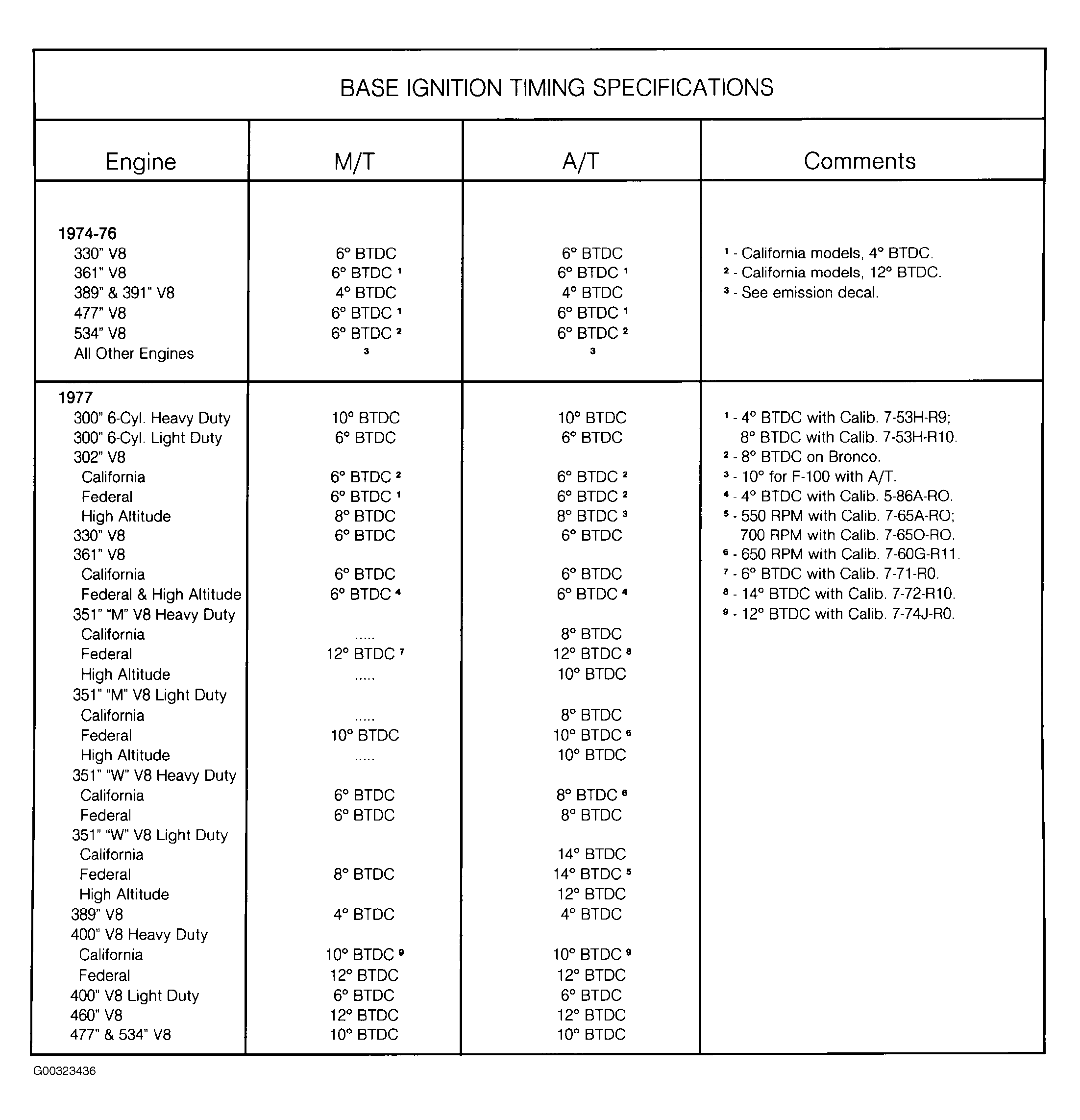

Fig 2:

G00323436

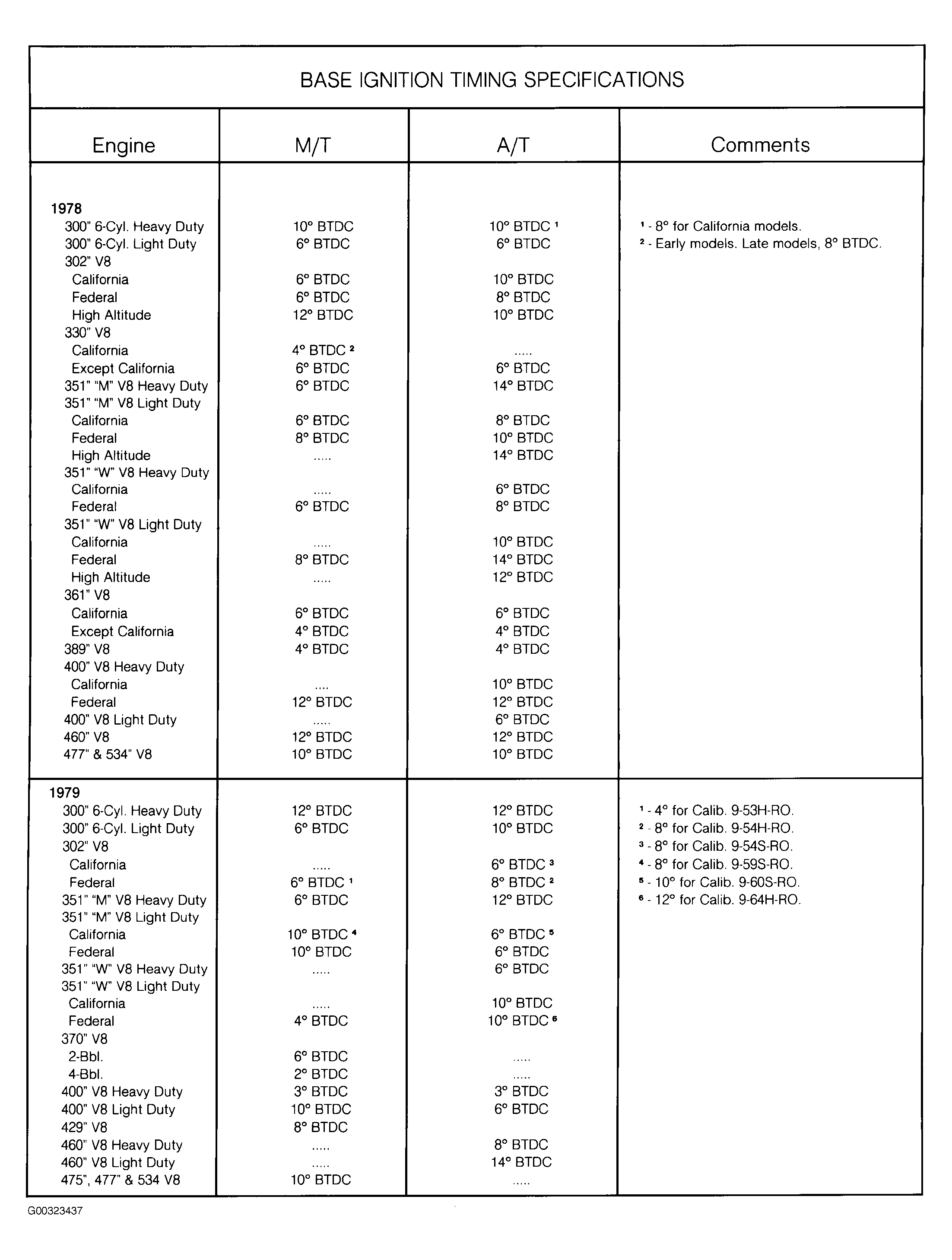

Fig 3:

G00323437

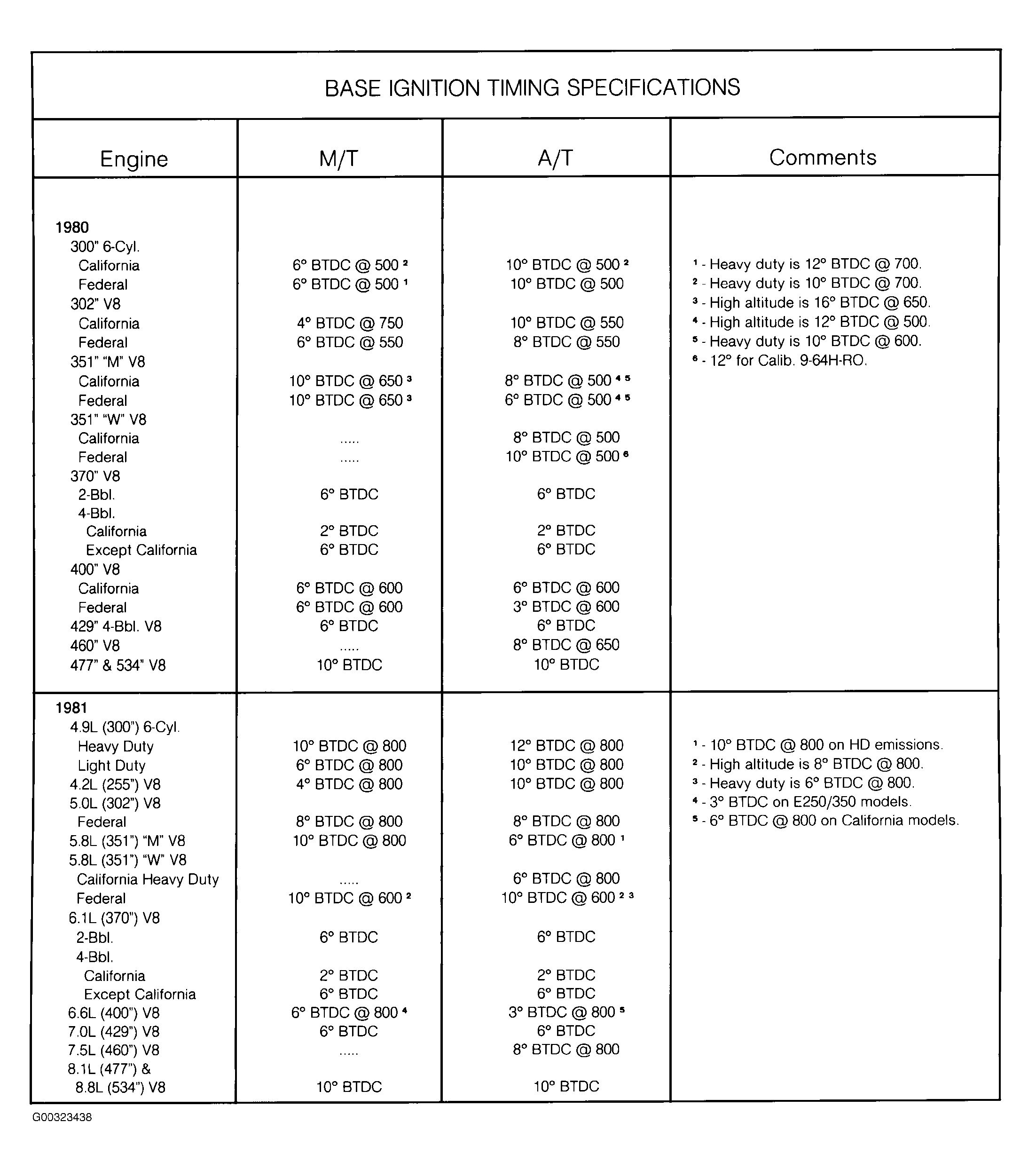

Fig 4:

G00323438

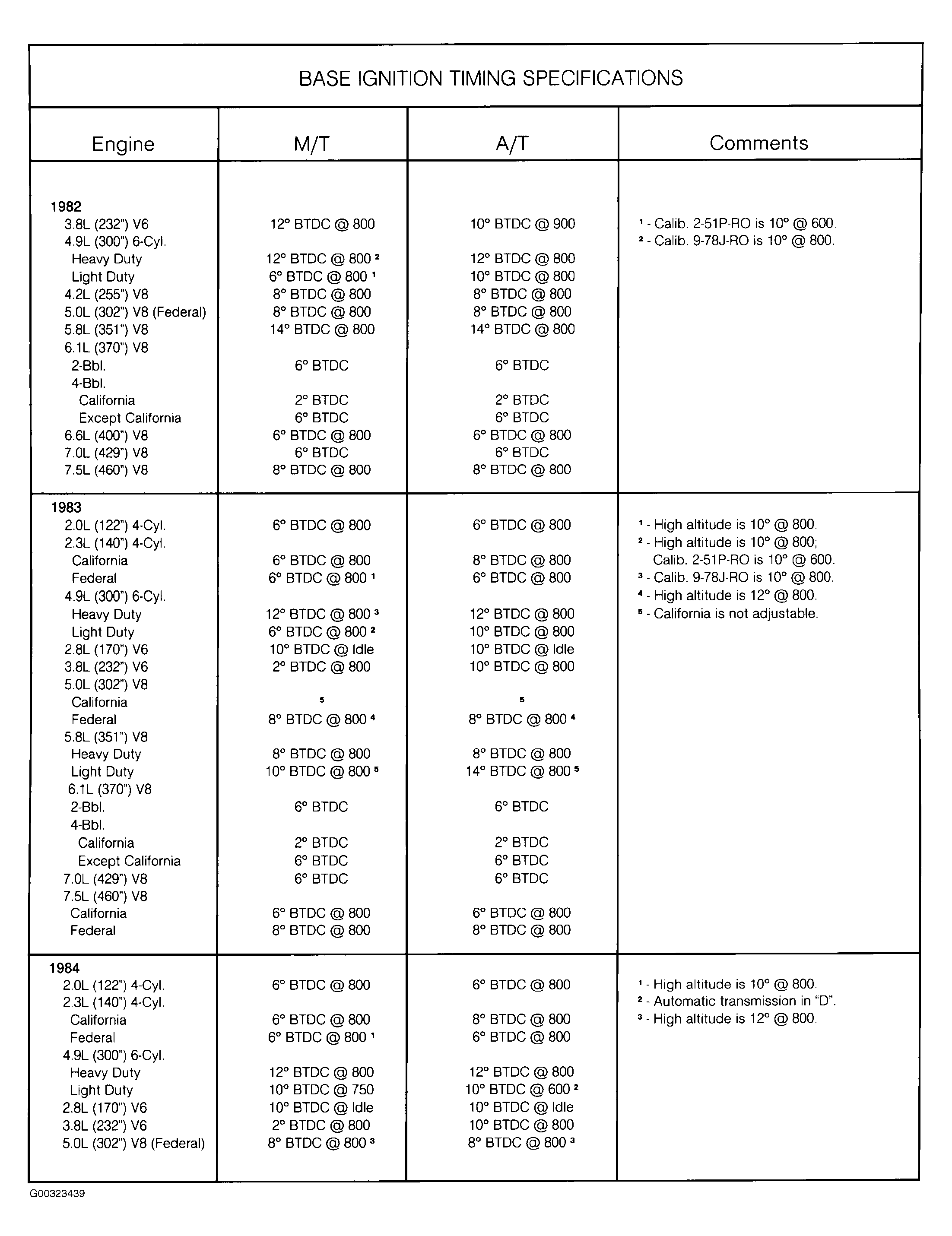

Fig 5:

G00323439

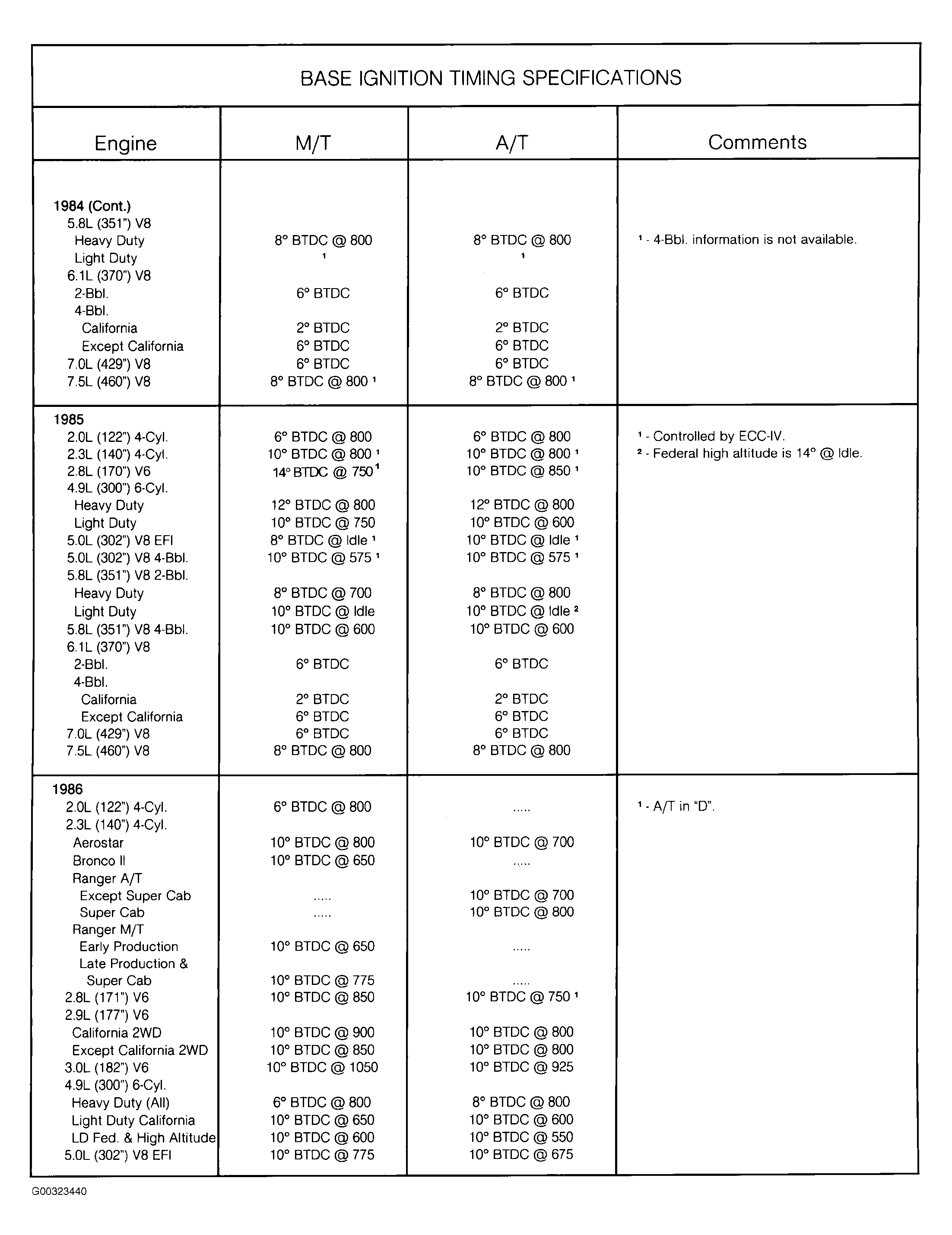

Fig 6:

G00323440

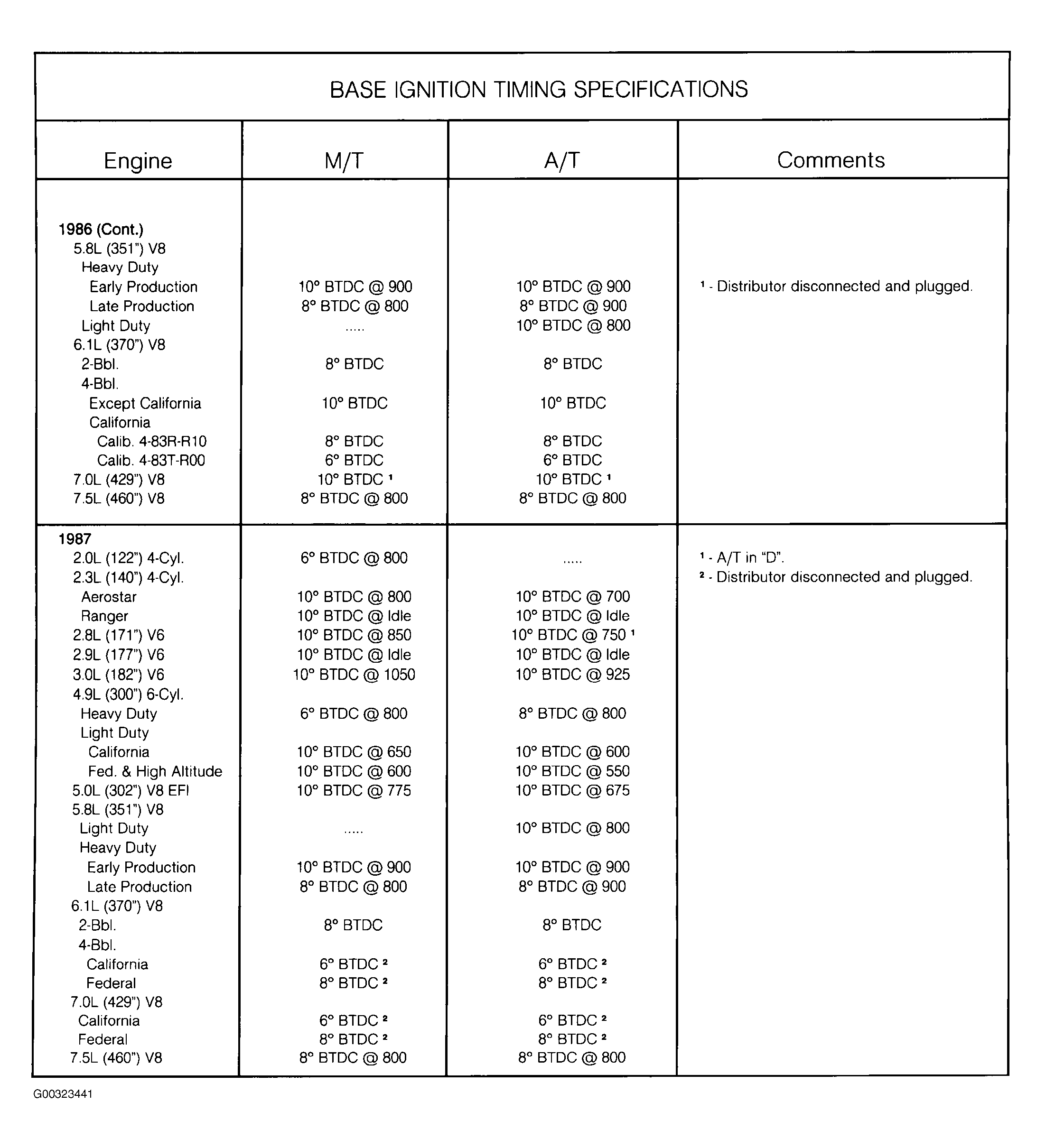

Fig 7:

G00323441

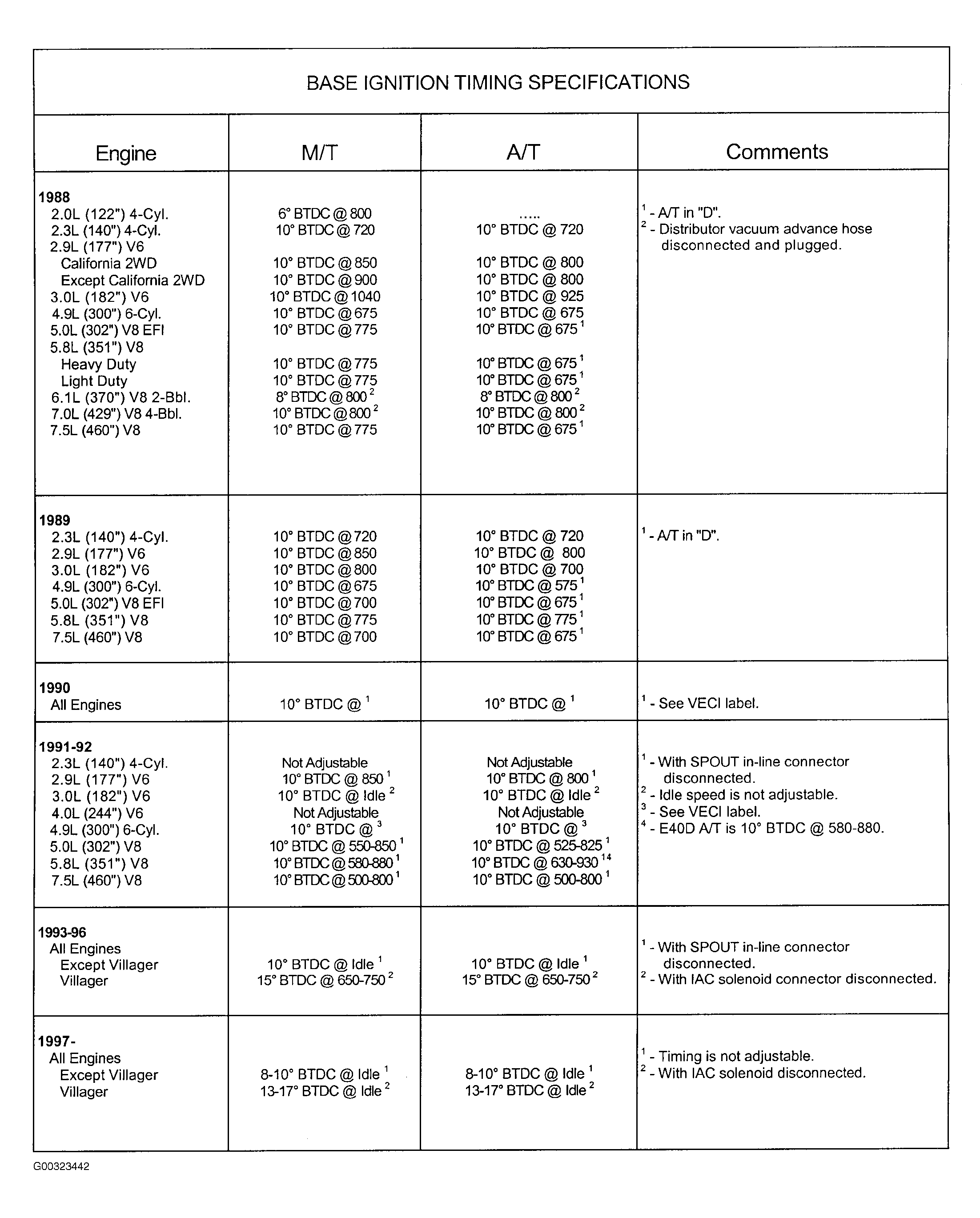

Fig 8:

G00323442
