Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse Panel
>>
Primary Junction Block
Primary Junction Block

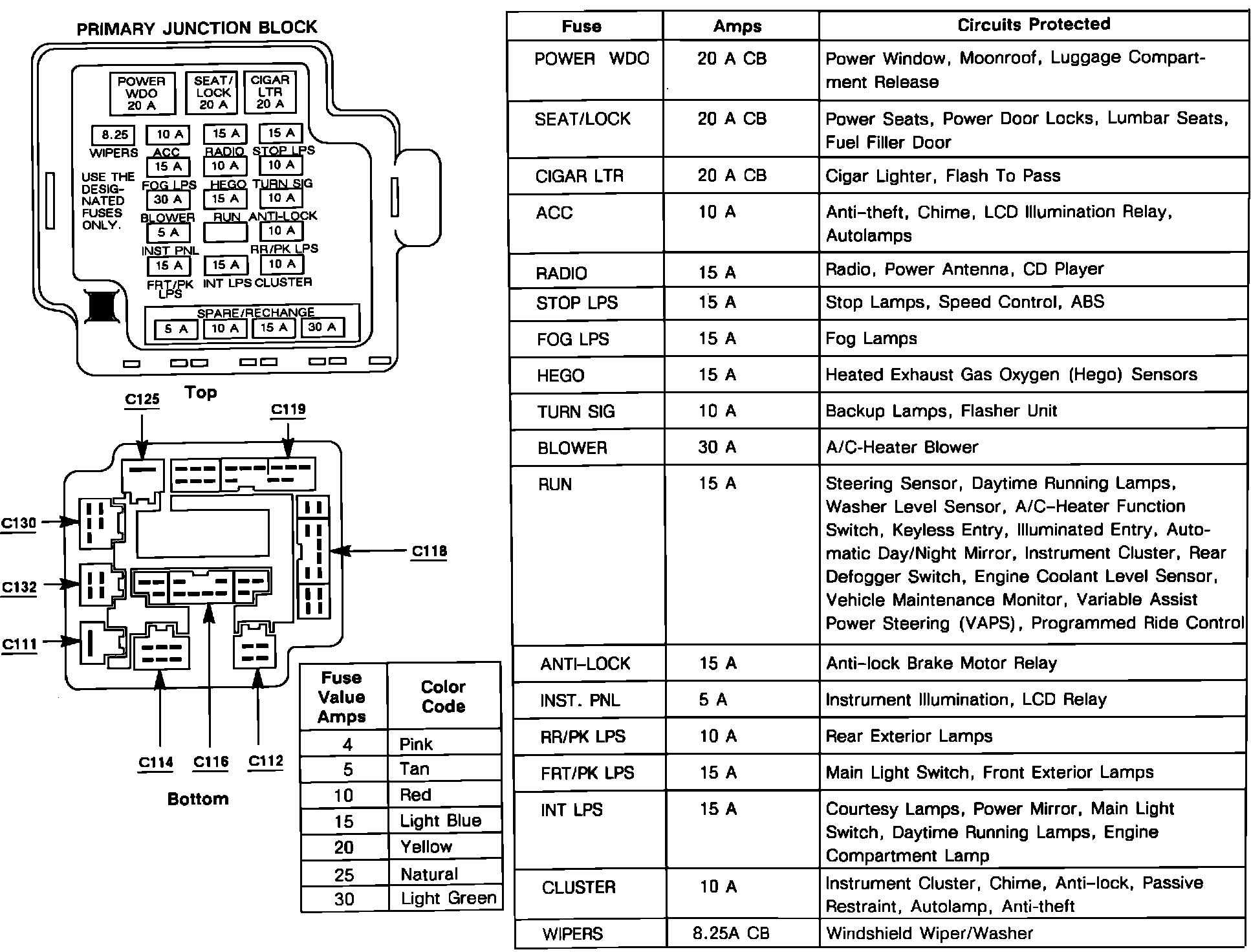

Primary Junction Block:
