Cruise Control Servo Cable: Adjustments

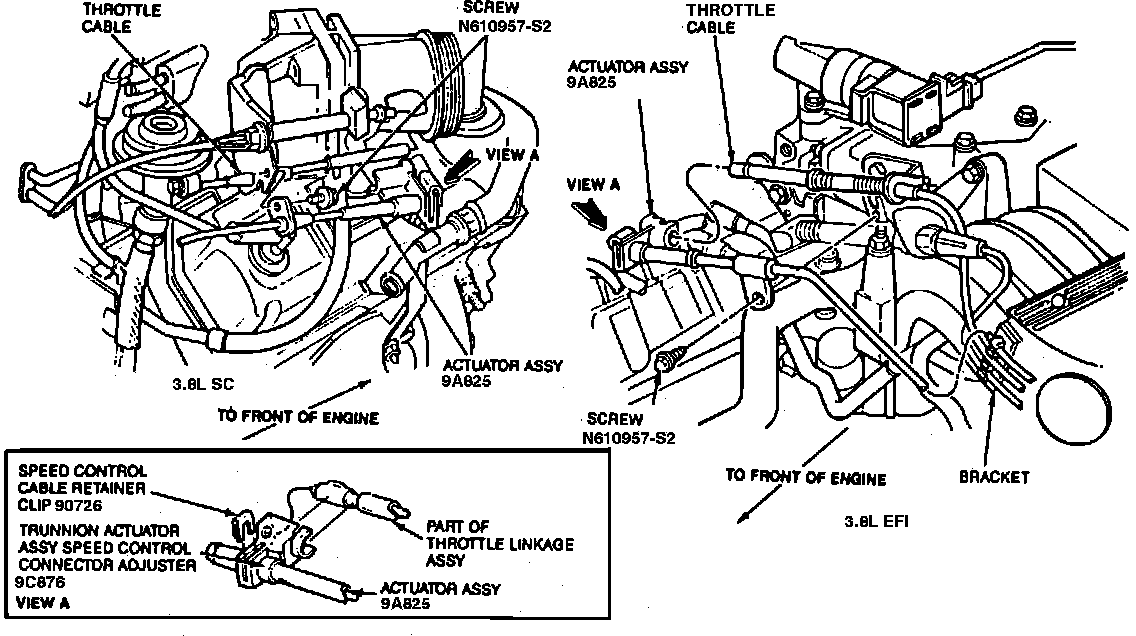

Fig. 14 Actuator Cable:





1. Remove speed control actuator cable retaining clip, Fig. 14.
2. Push actuator cable through adjuster until slight tension is felt.
3. Insert cable retaining clip and snap into place.
