Engine Controls

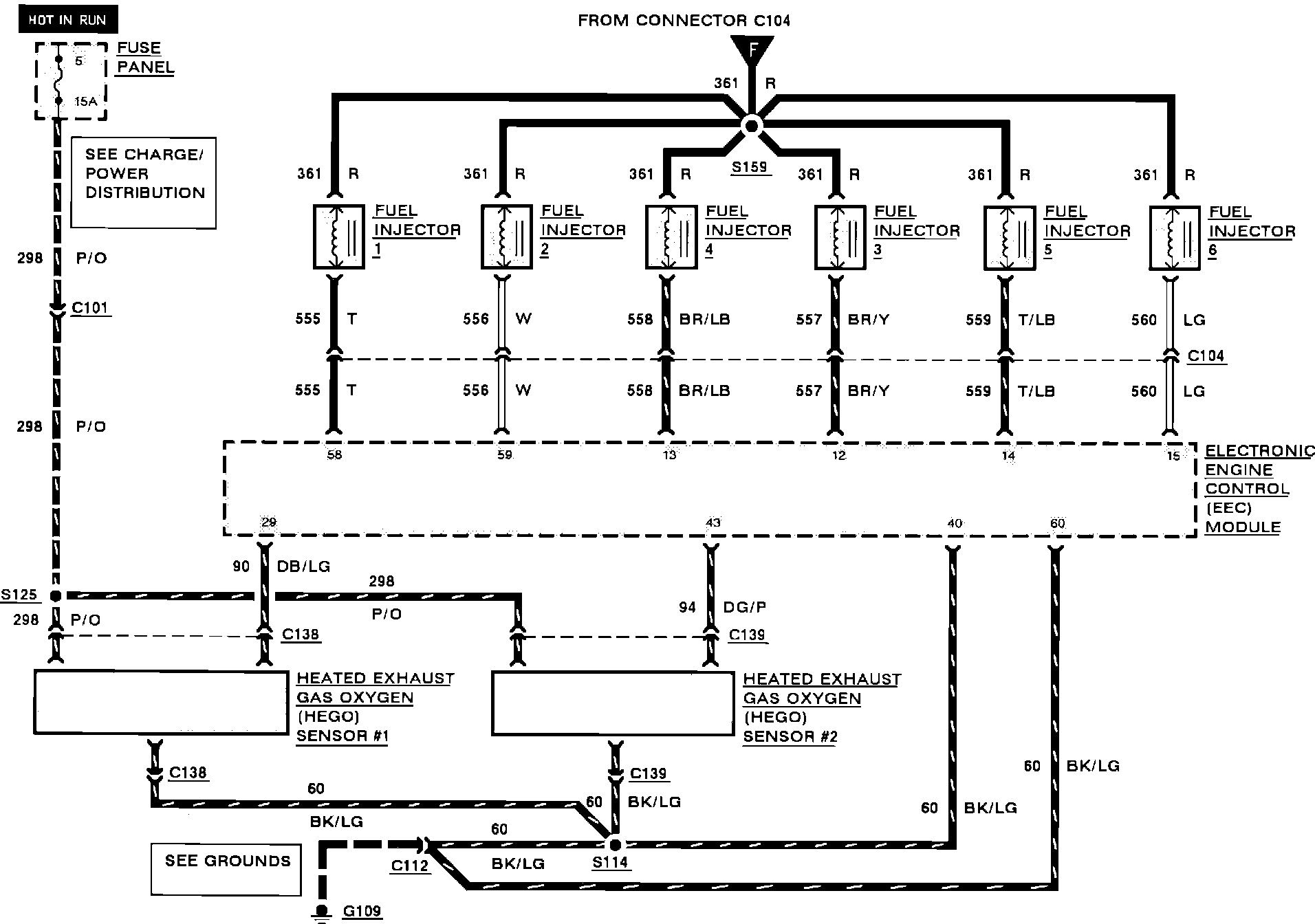

Electronic Engine Control:

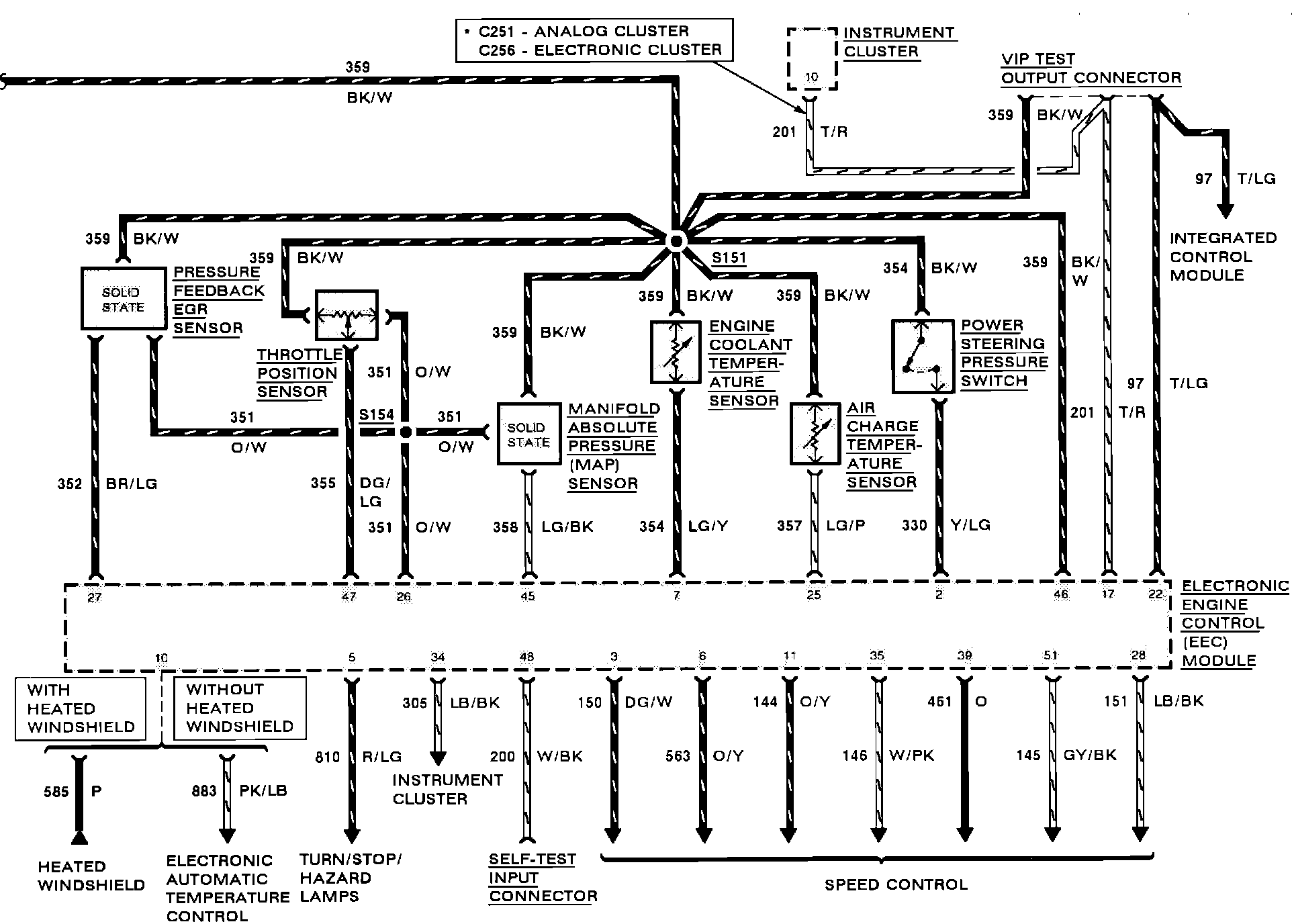

Electronic Engine Control:

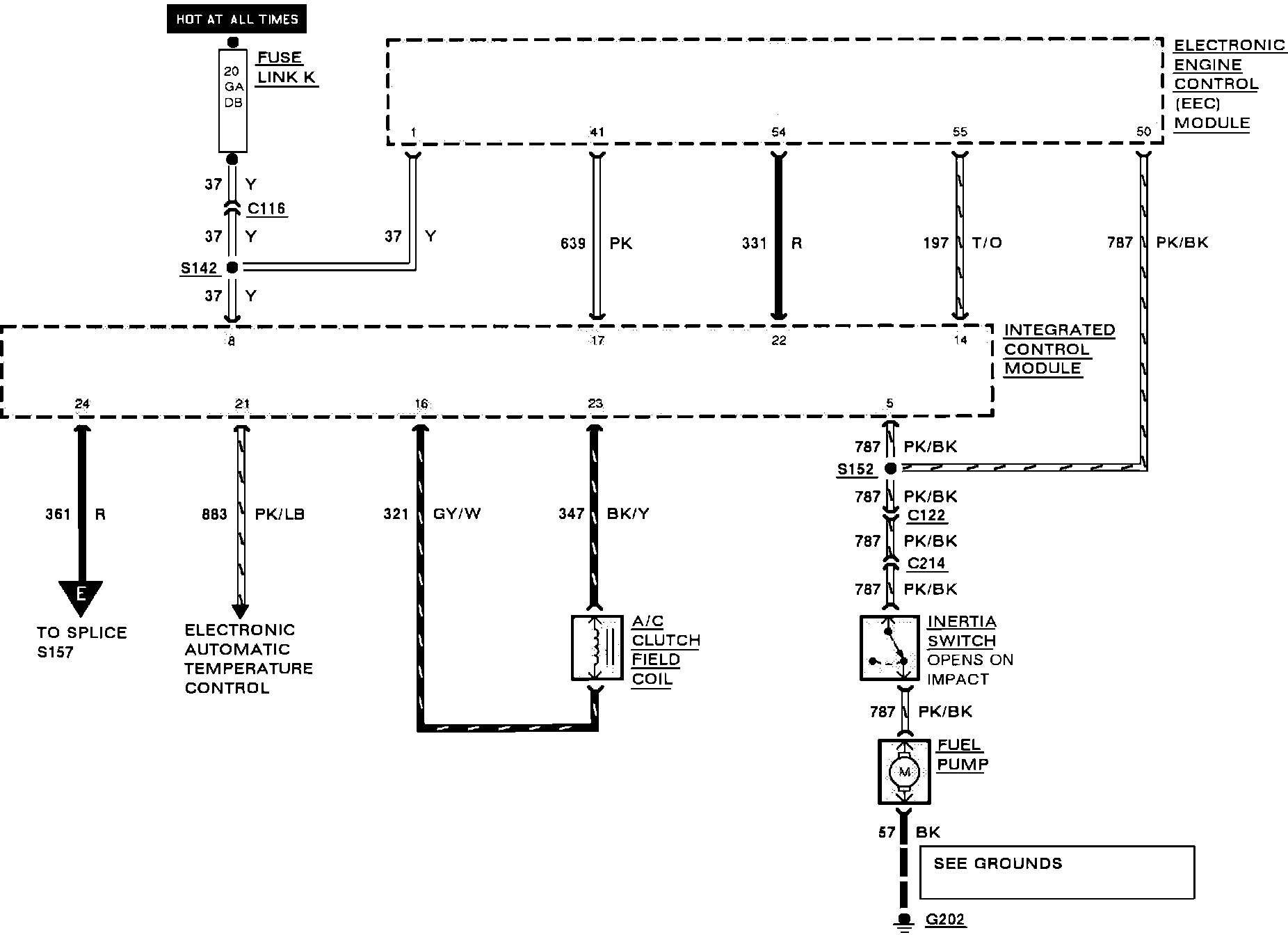

Electronic Engine Control:

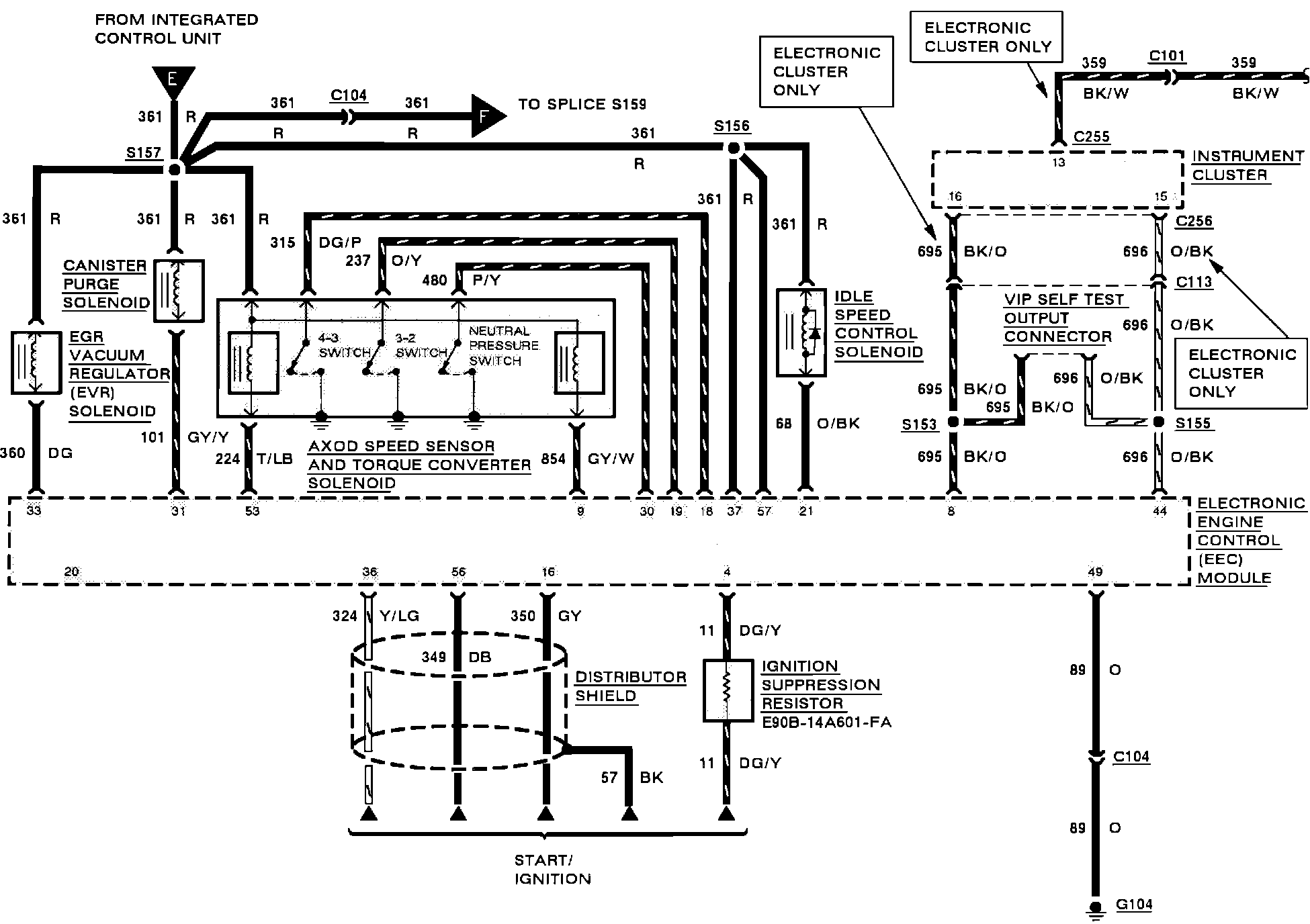

Electronic Engine Control:

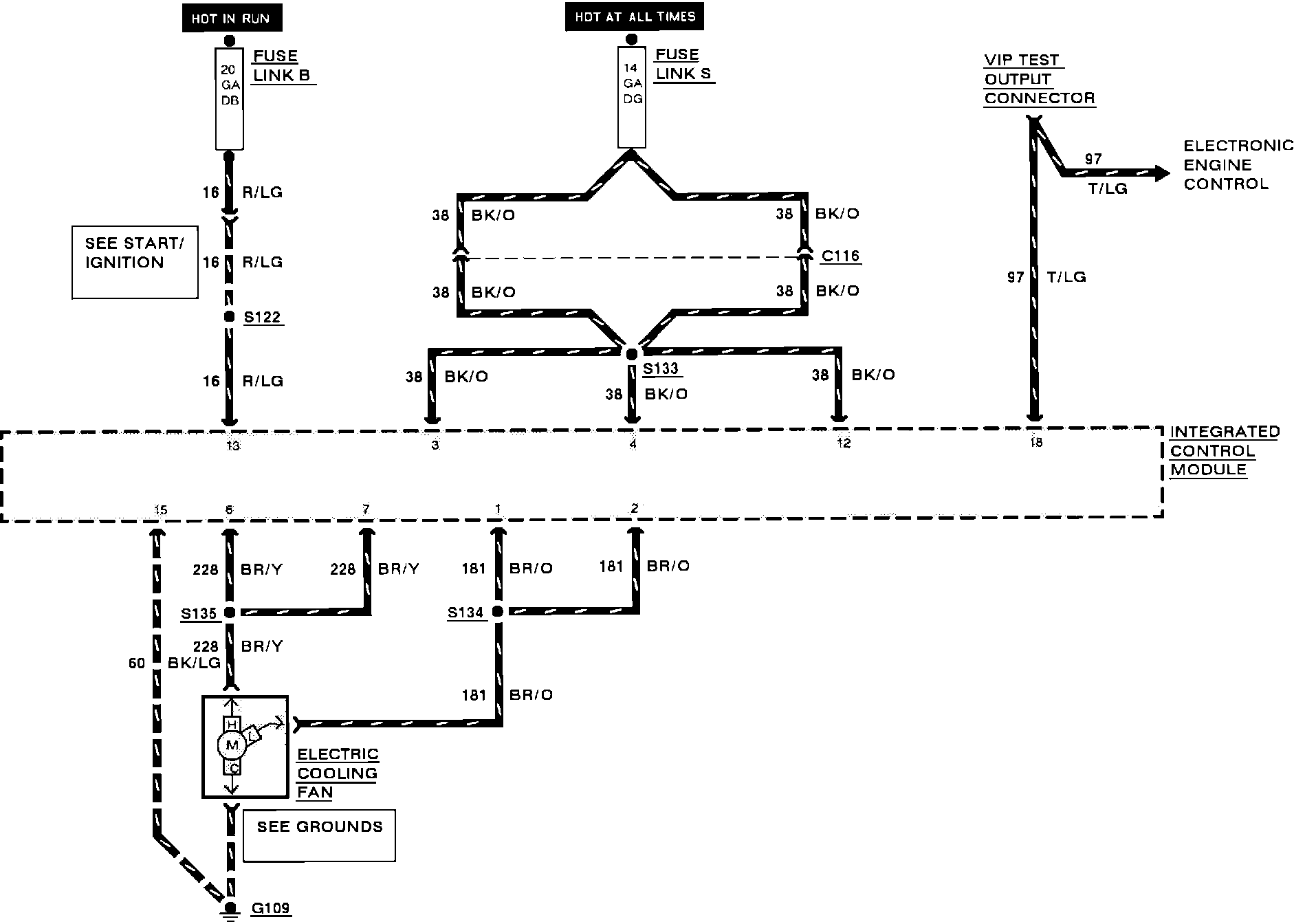

Electronic Engine Control:
