Service Indicator & Warning Lights
>>
Service Indicator & Warning Lights
>>
Notes
Service Indicator & Warning Lights: Notes

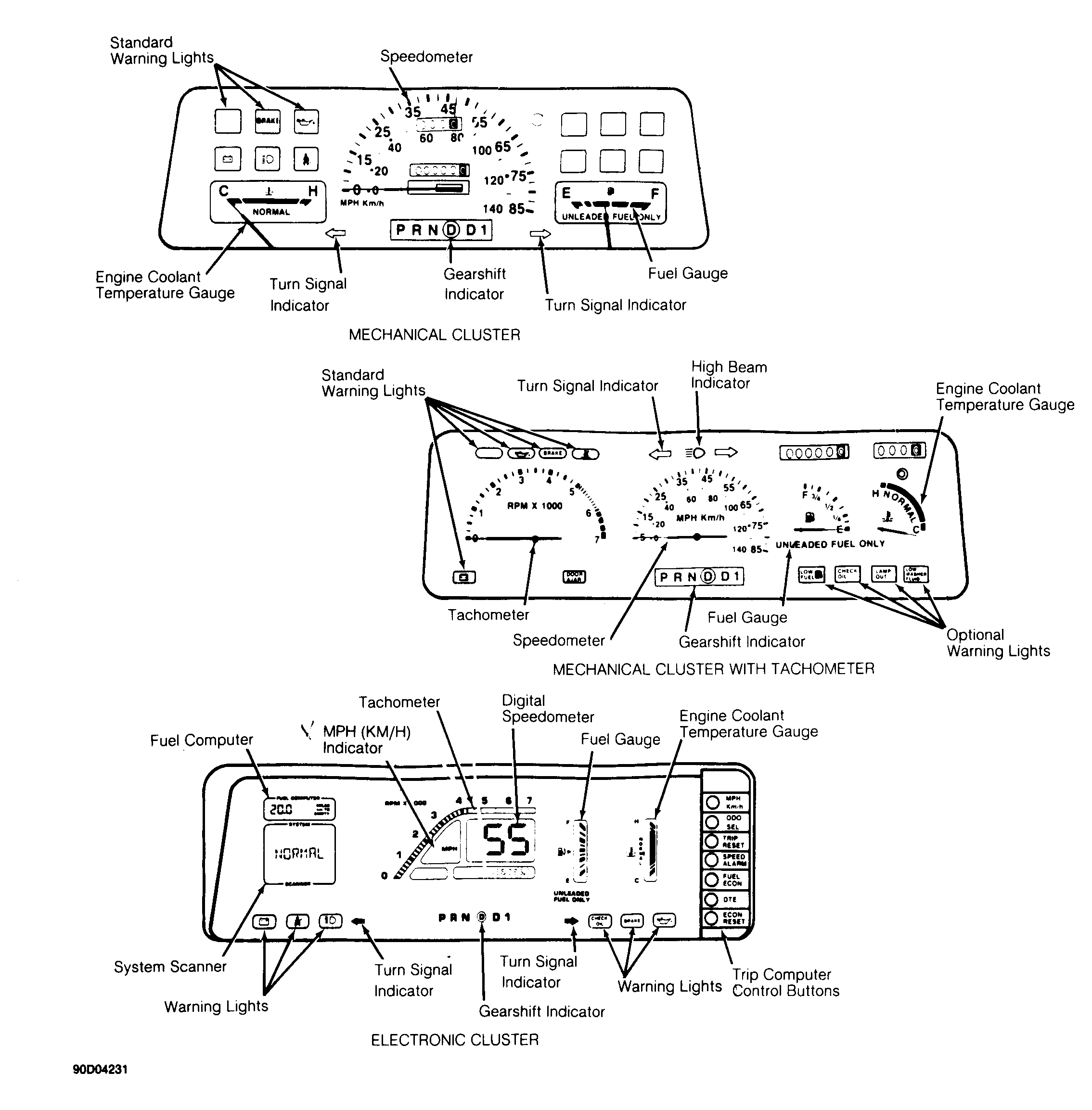

Fig 1: Dash Gauges & Warning Lights (1986-89)
Courtesy of FORD MOTOR CO.

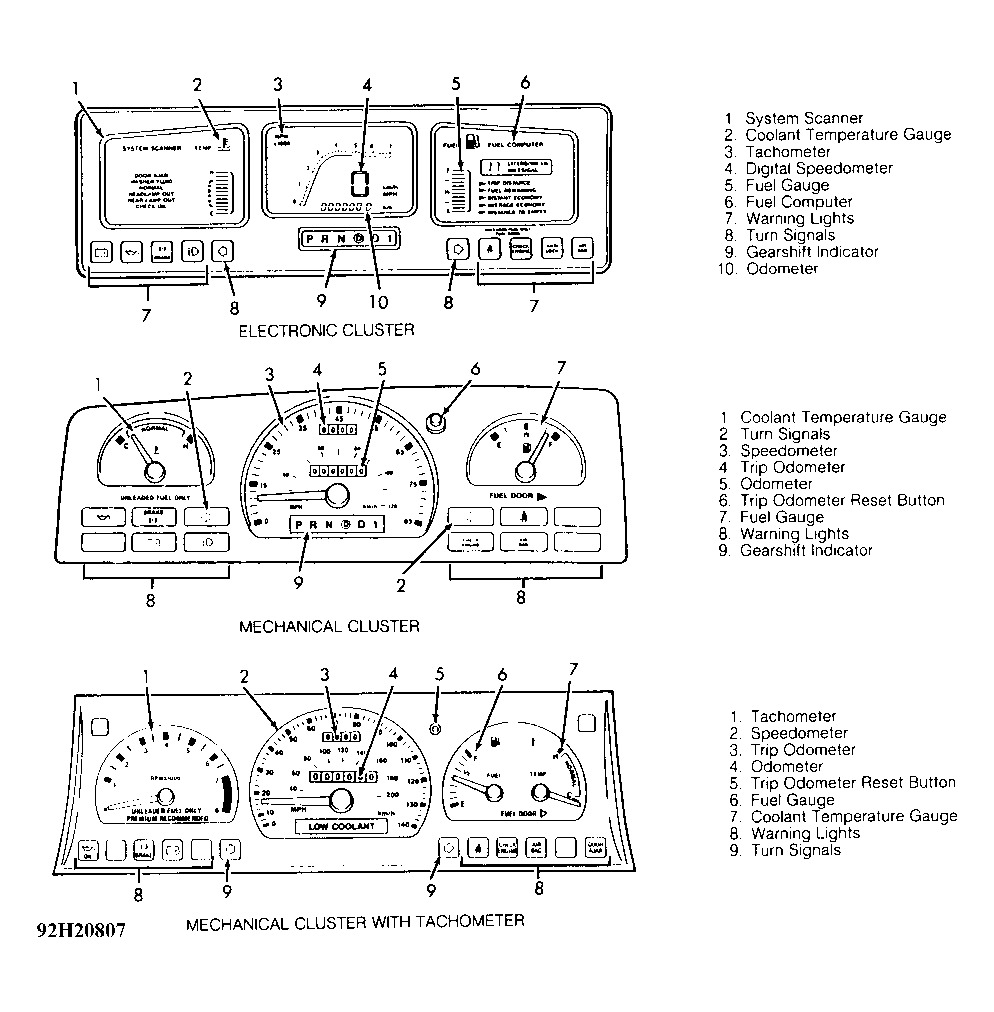

Fig 2: Dash Gauges & Warning Lights (1990-92)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
