A/T Torque Data

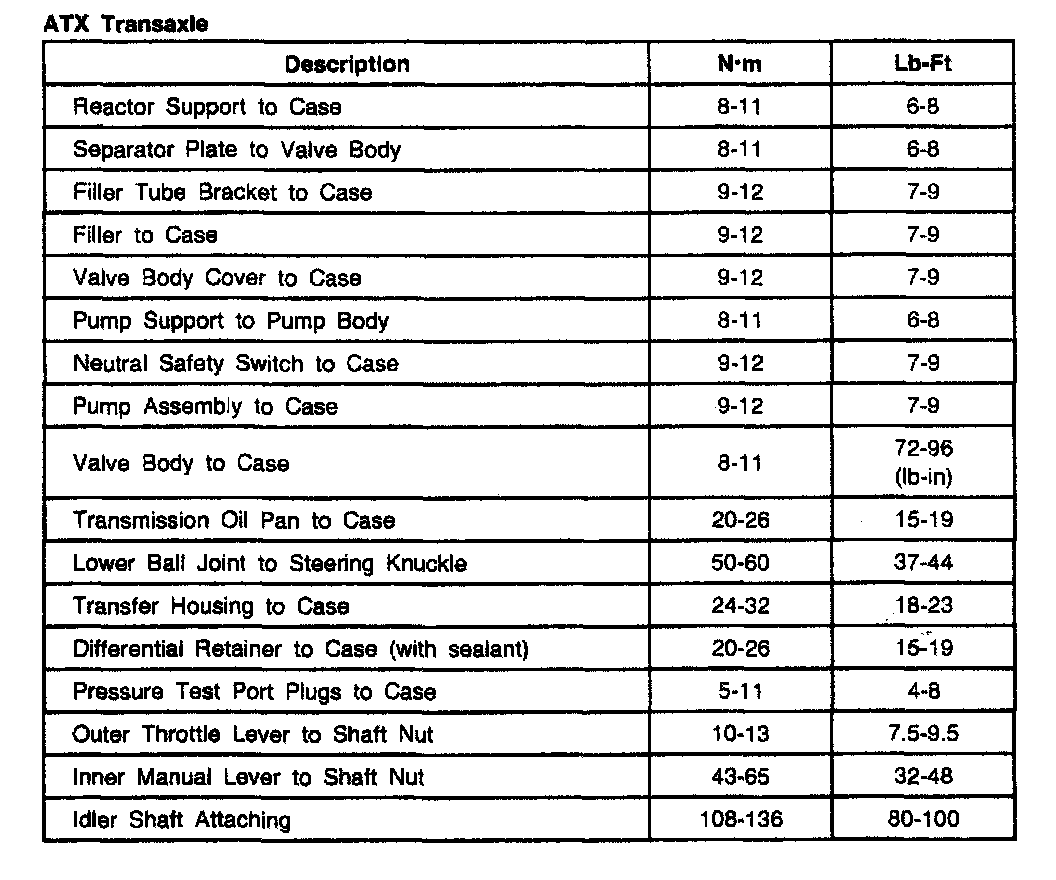

ATX 3-spd A/T, Transaxle Torque:

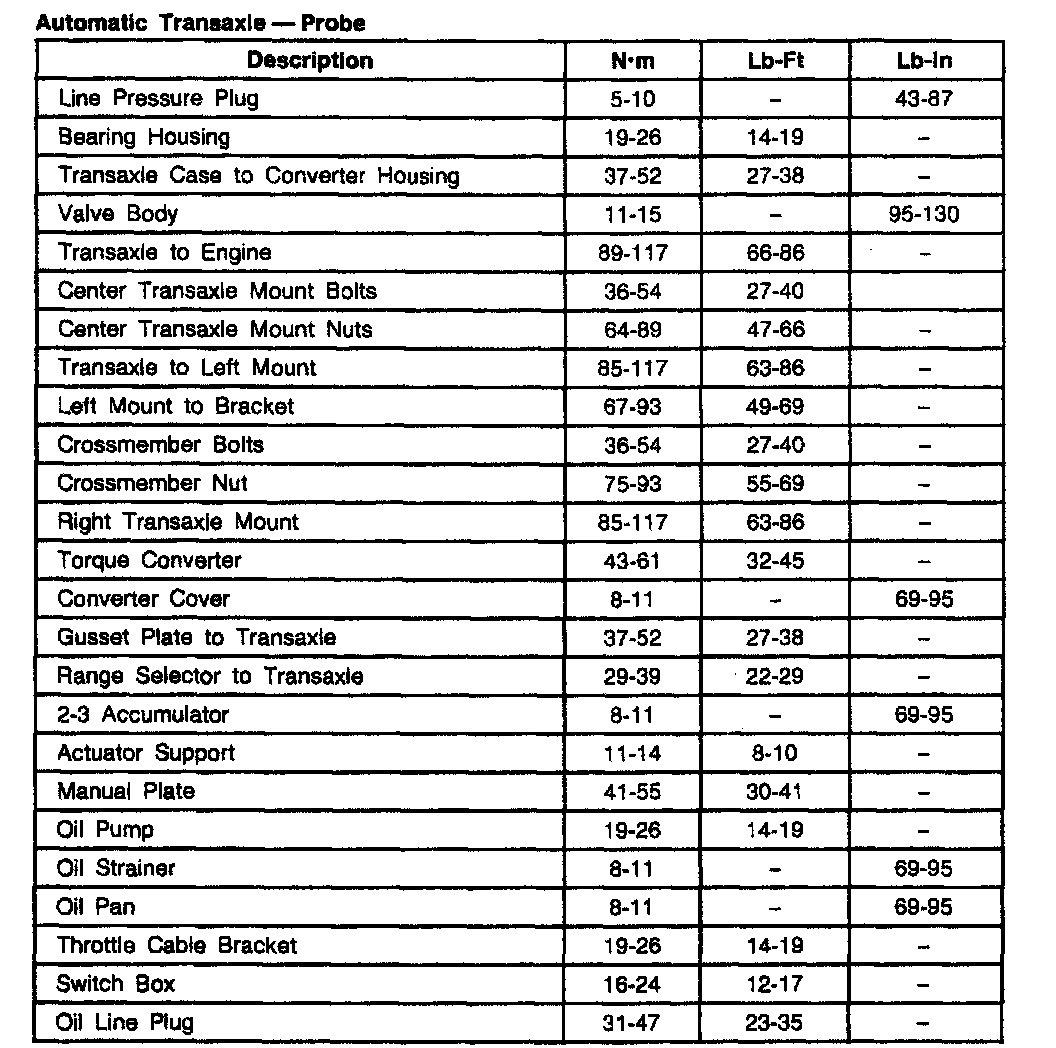

ATX 3-spd A/T, (Probe) Transaxle:

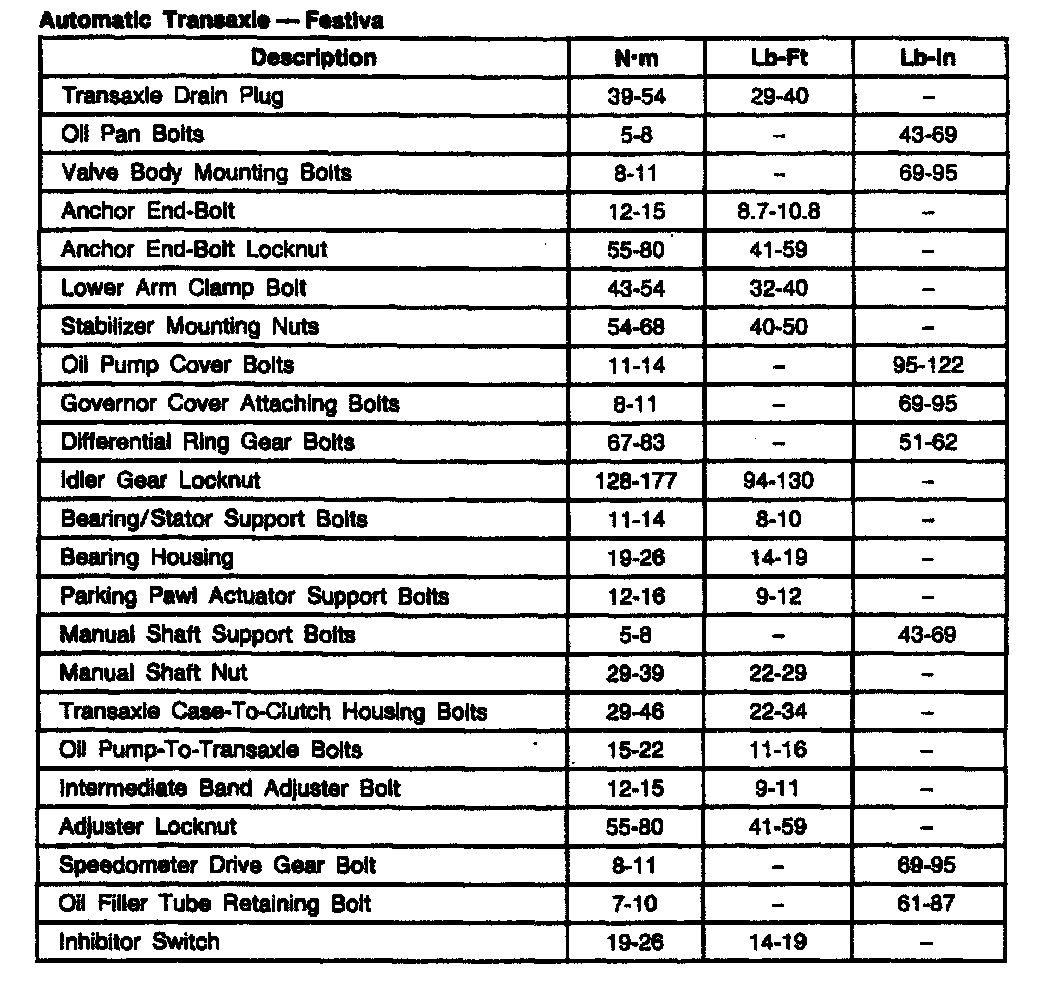

ATX 3-spd A/T, (Festiva):





ATX 3-spd A/T, (Tempo/Topaz, Escort):

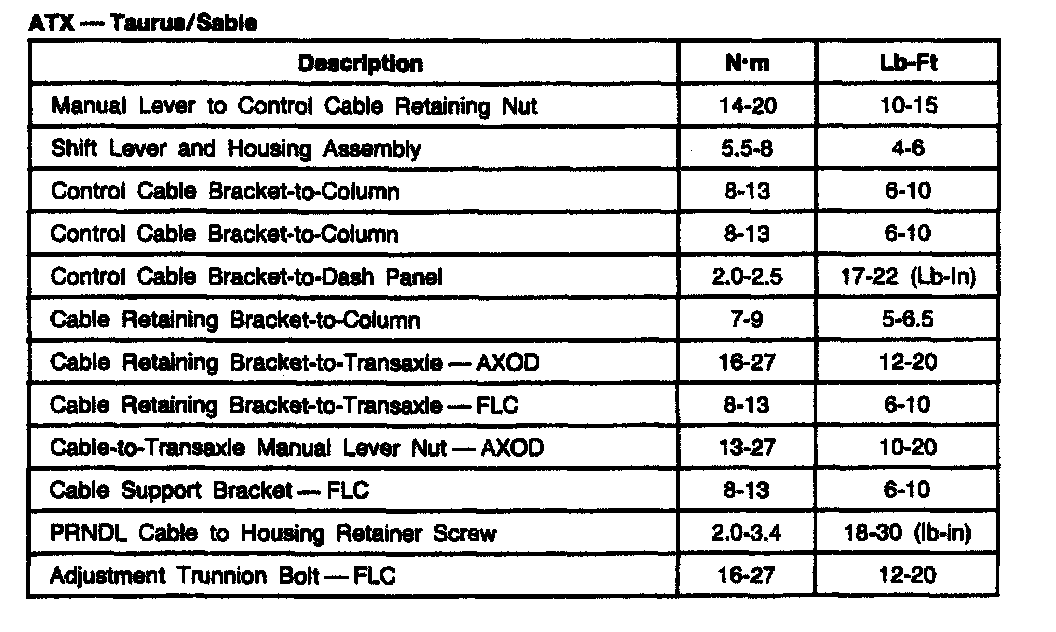

ATX 3-spd A/T, (Taurus/Sable):





ATX 3-spd A/T, Cooler Line Fittings:
