Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Power and Ground Distribution >> Diode >> Locations

Diode: Locations

Inside RH Front Fender:

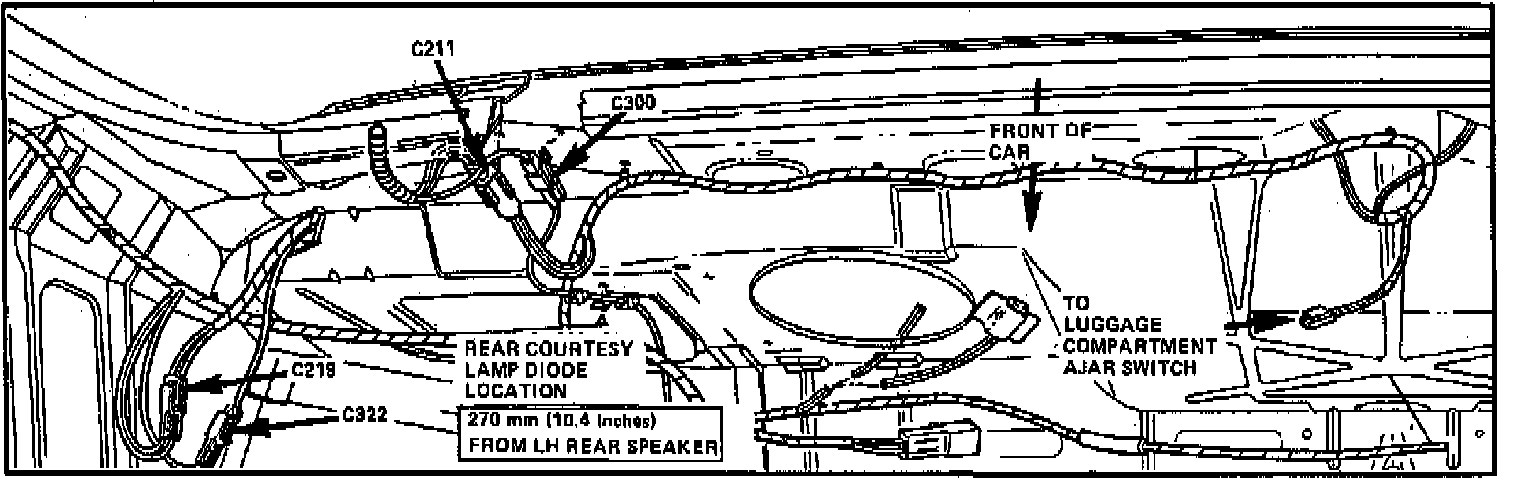

Rear Lamp Harness LH Side Of Package Tray
