Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Heating and Air Conditioning >> Cabin Temperature Sensor / Switch >> Testing and Inspection

Cabin Temperature Sensor / Switch: Testing and Inspection

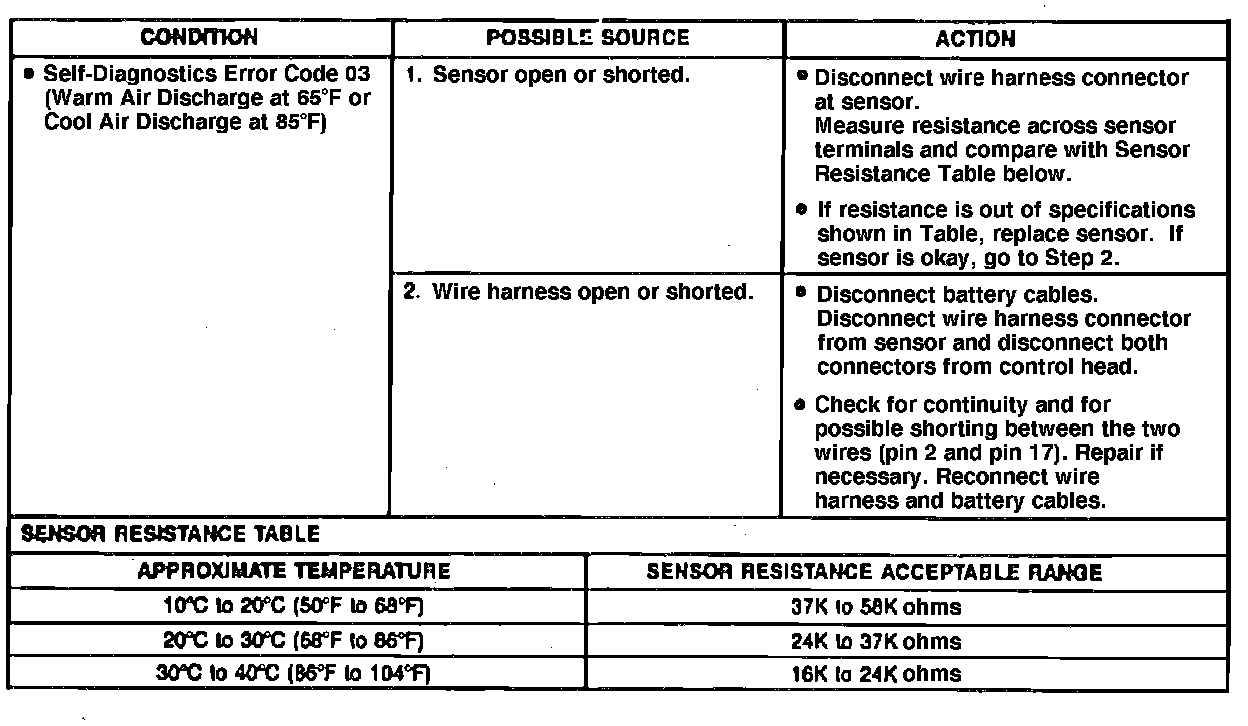

Fig. 6 In Car Temperature Sensor Diagnosis:
