Home >> Ford >> 1990 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Heating and Air Conditioning >> Ambient Temperature Sensor / Switch HVAC >> Testing and Inspection

Ambient Temperature Sensor / Switch HVAC: Testing and Inspection

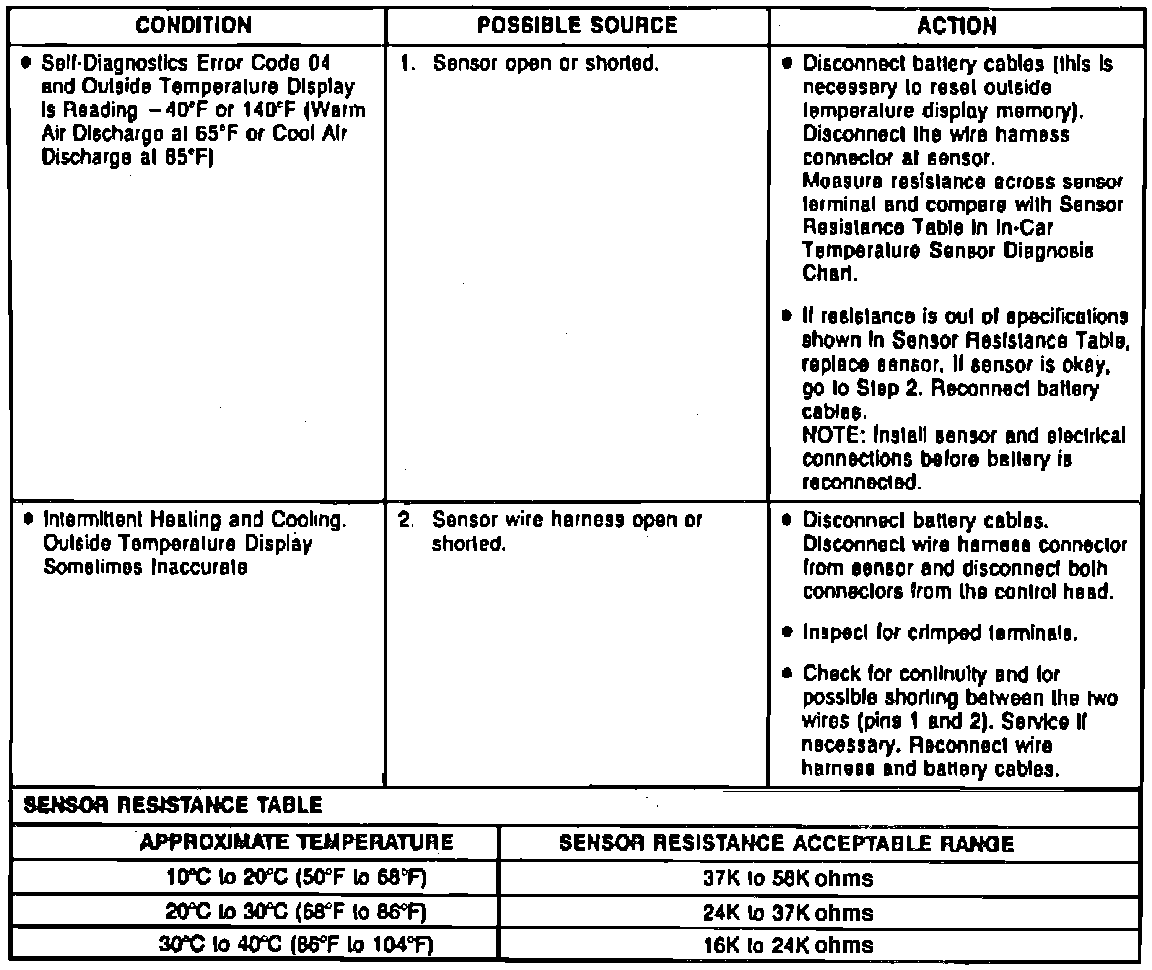

Fig. 7 Ambient Temperature Sensor Diagnosis:
