Home
>>
Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Diagrams
>>

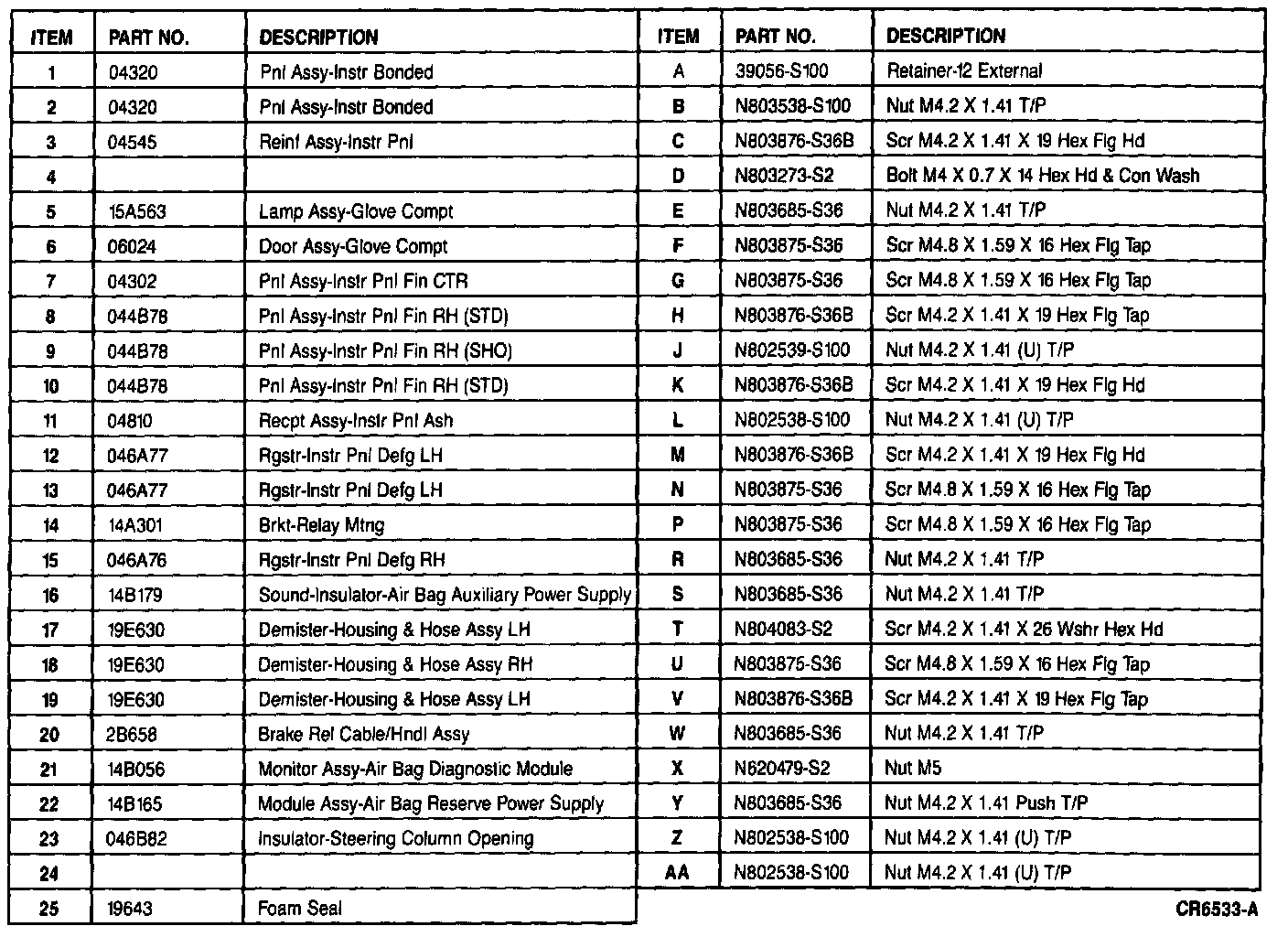

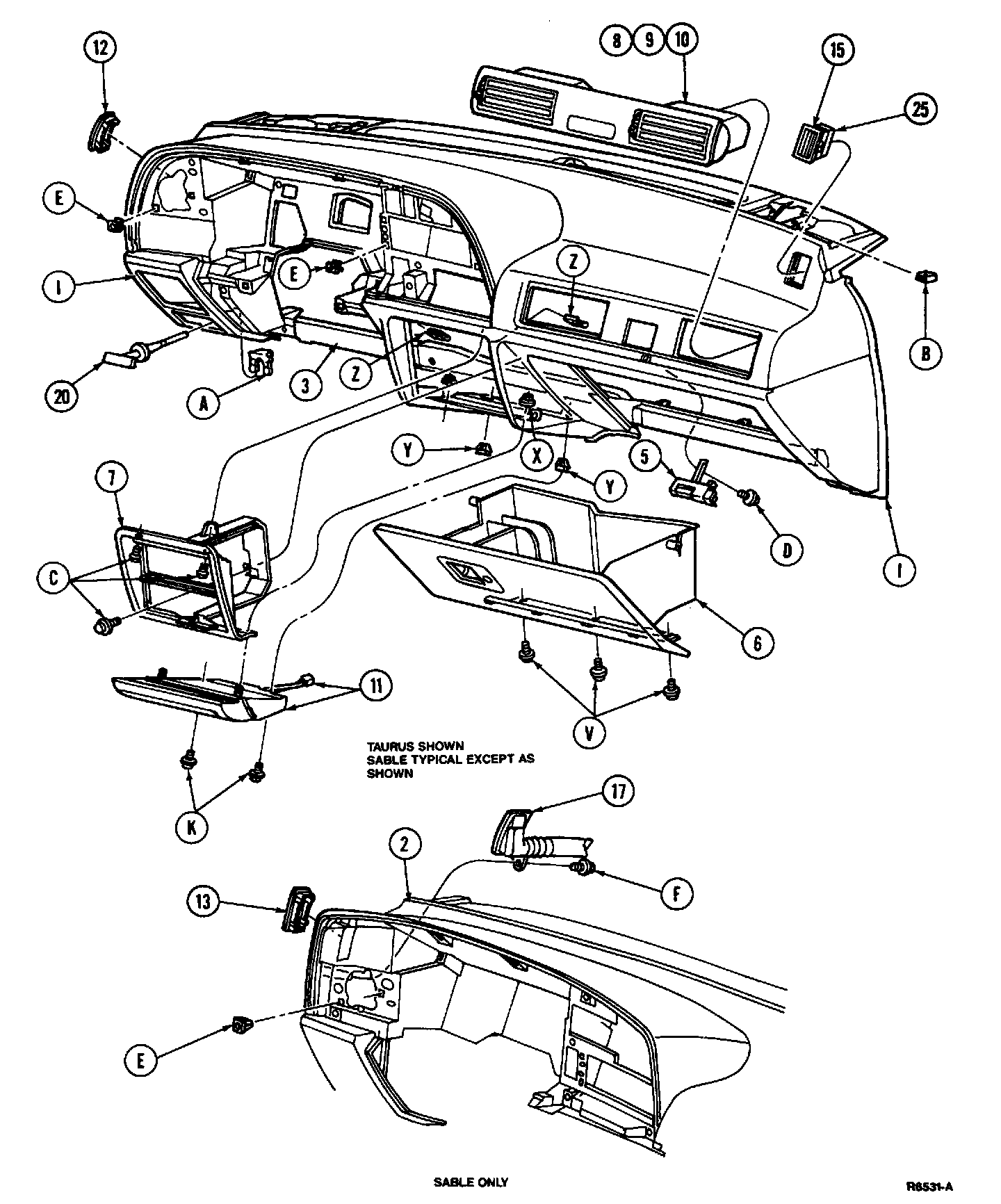

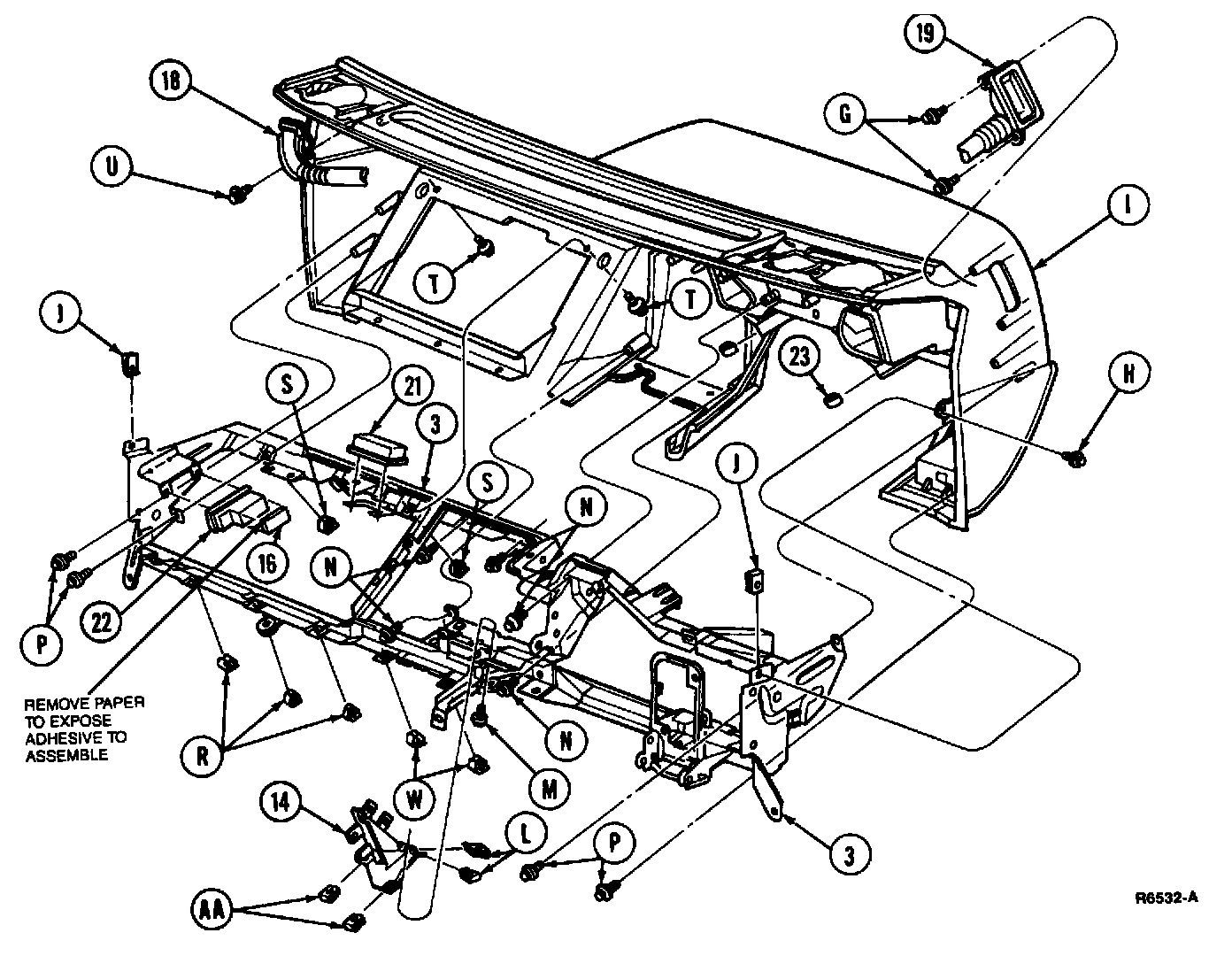

Exploded Views
>>
Dashboard / Instrument Panel
Dashboard / Instrument Panel
