Engine Controls

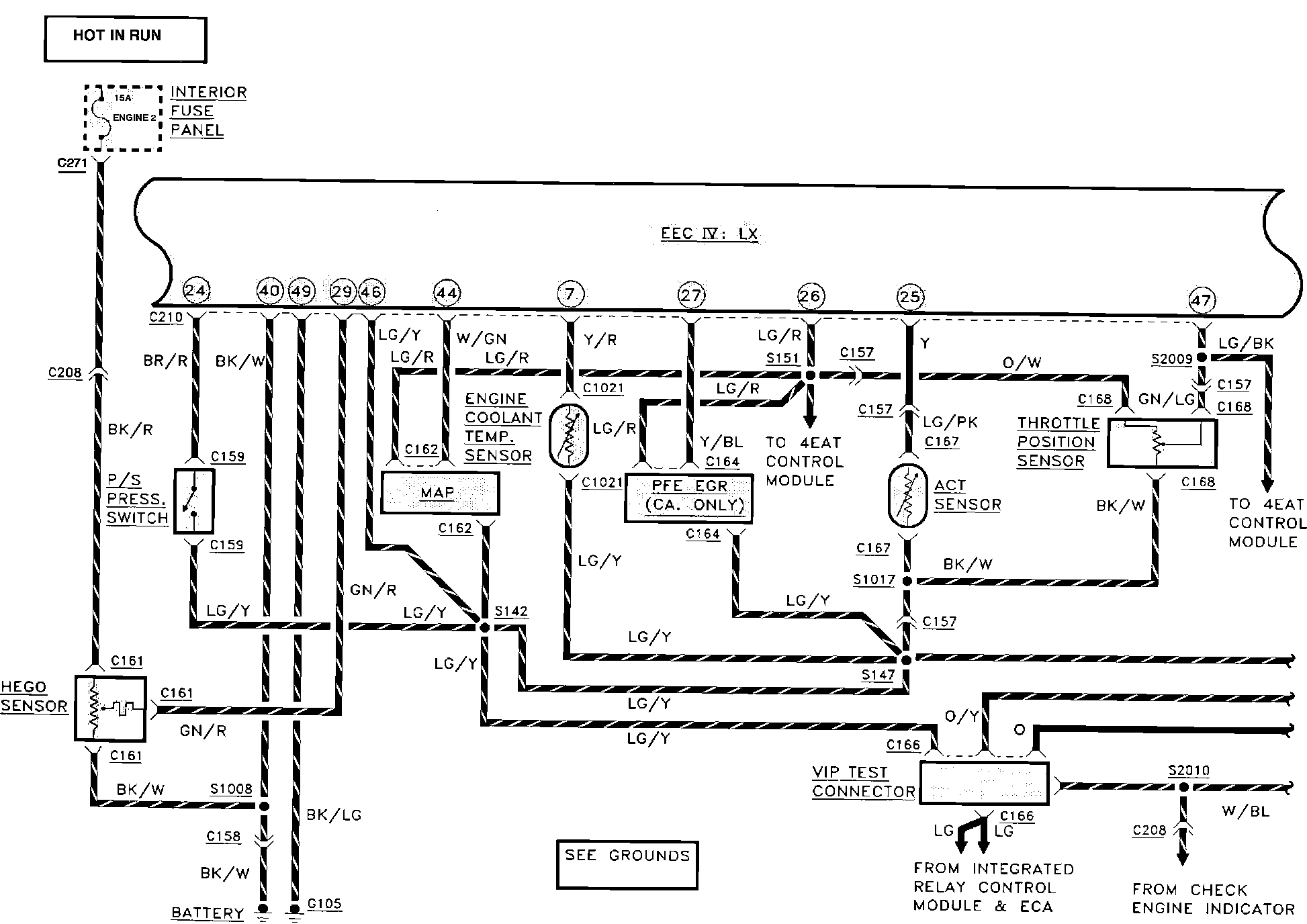

Engine Controls - LX Models:

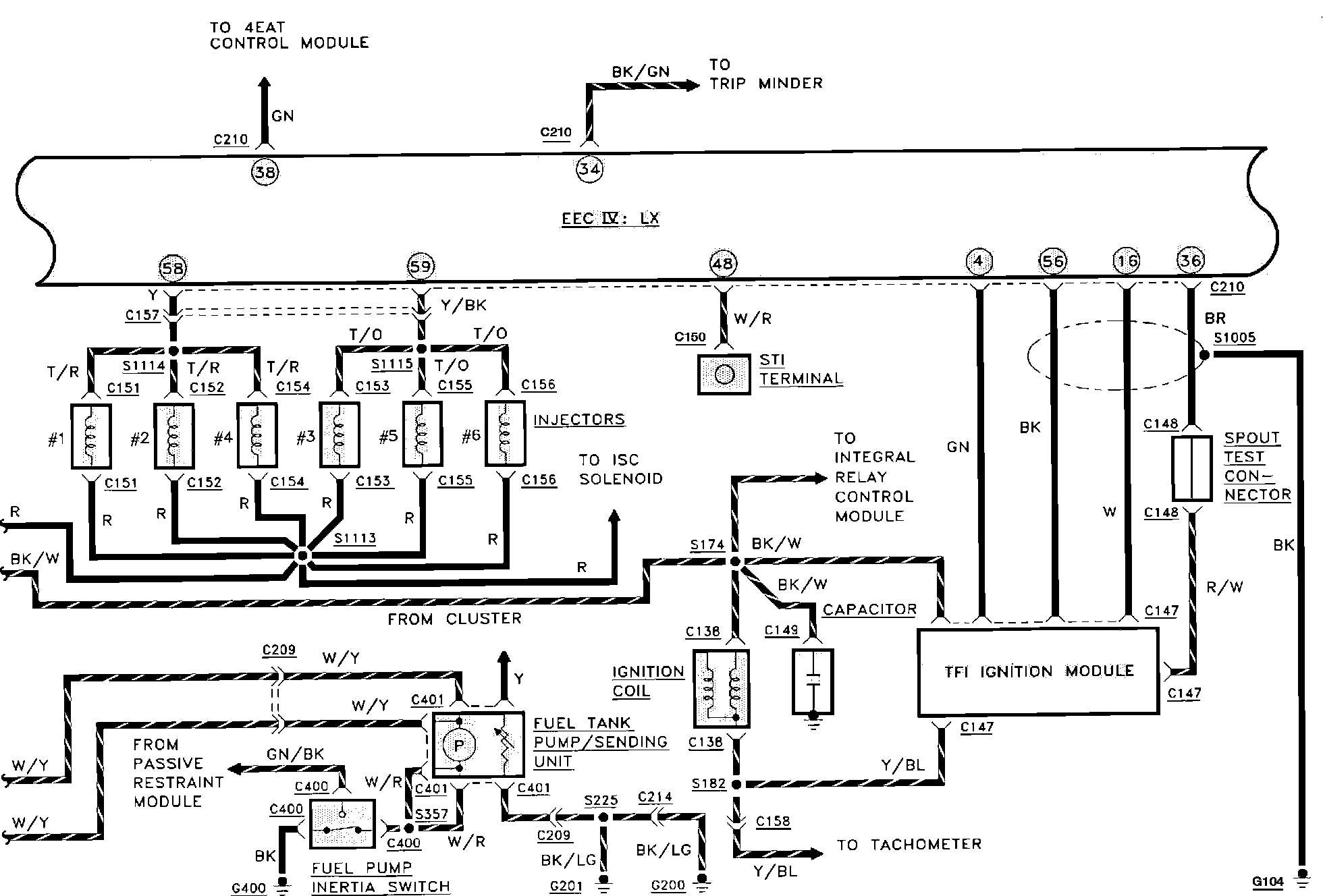

Engine Controls - LX Models:

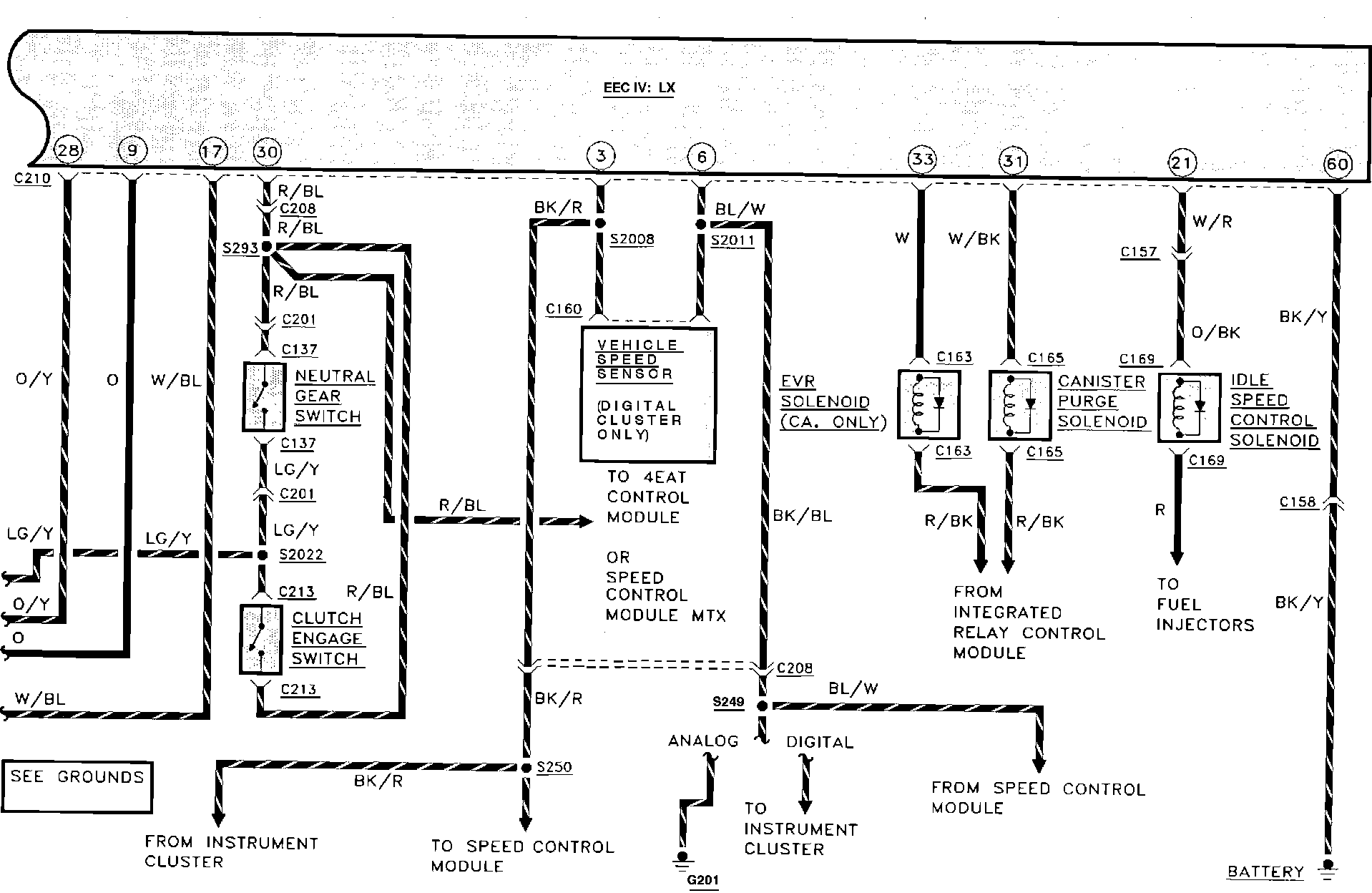

Engine Controls - LX Models:

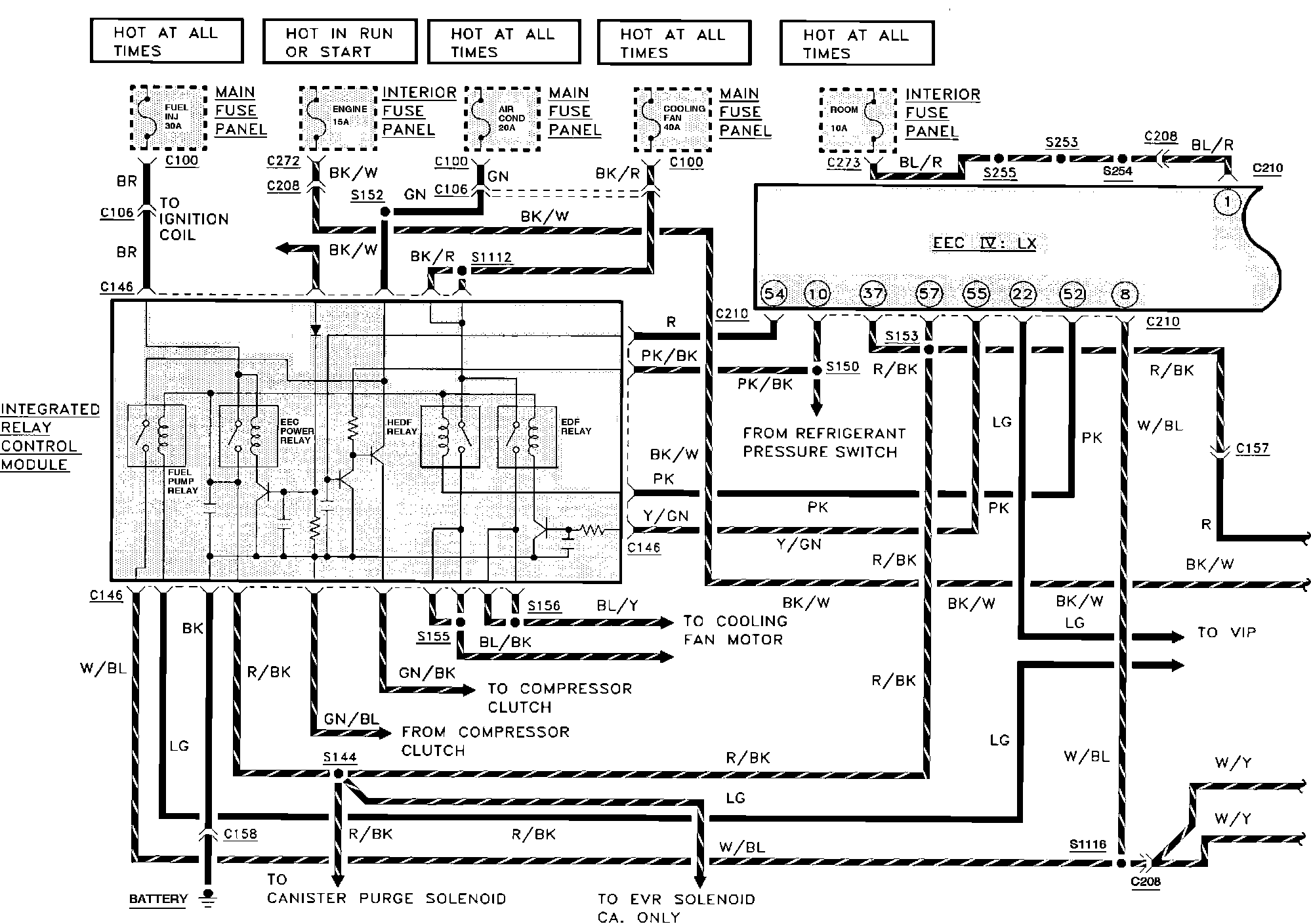

Engine Controls - LX Models:
