Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations

Fuse: Locations

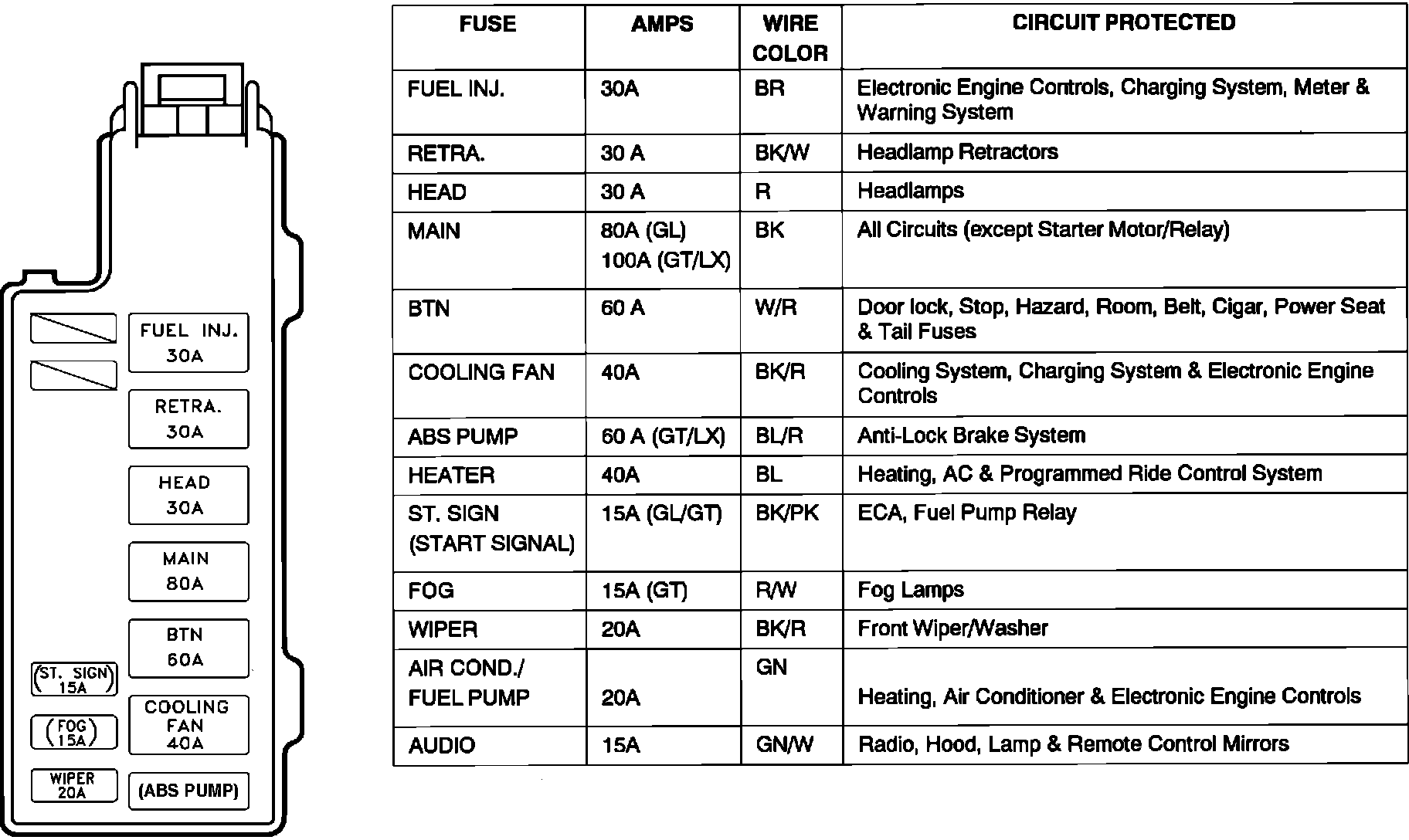

Fuse Panel Details:
