Cooling System
>>
Radiator Cooling Fan Control Module

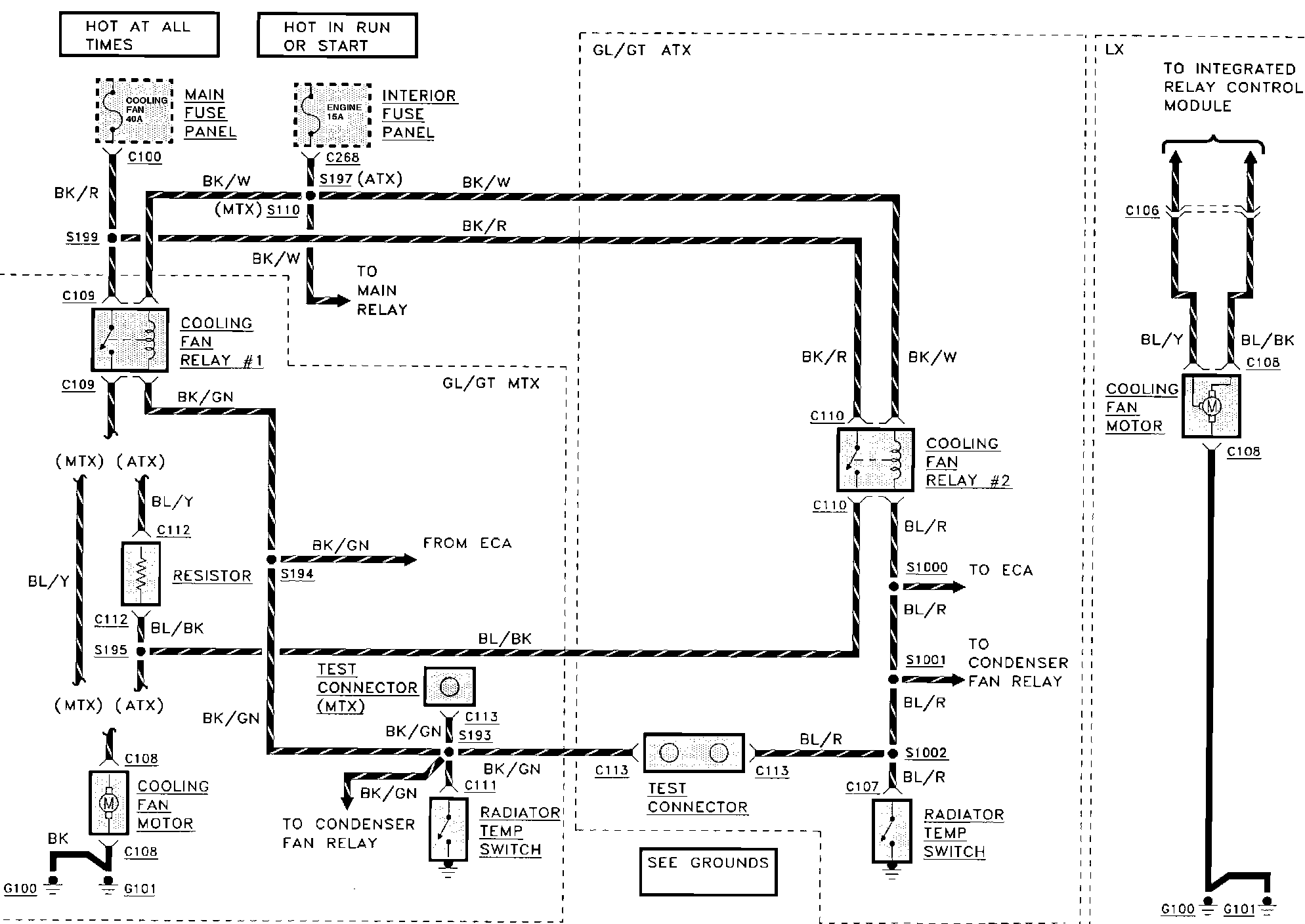

Radiator Cooling Fan Control Module
Cooling Fans:
