Home >> Ford >> 1990 >> Probe L4-133 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> TP - Throttle Position Sensor >> TP - Data Sheet

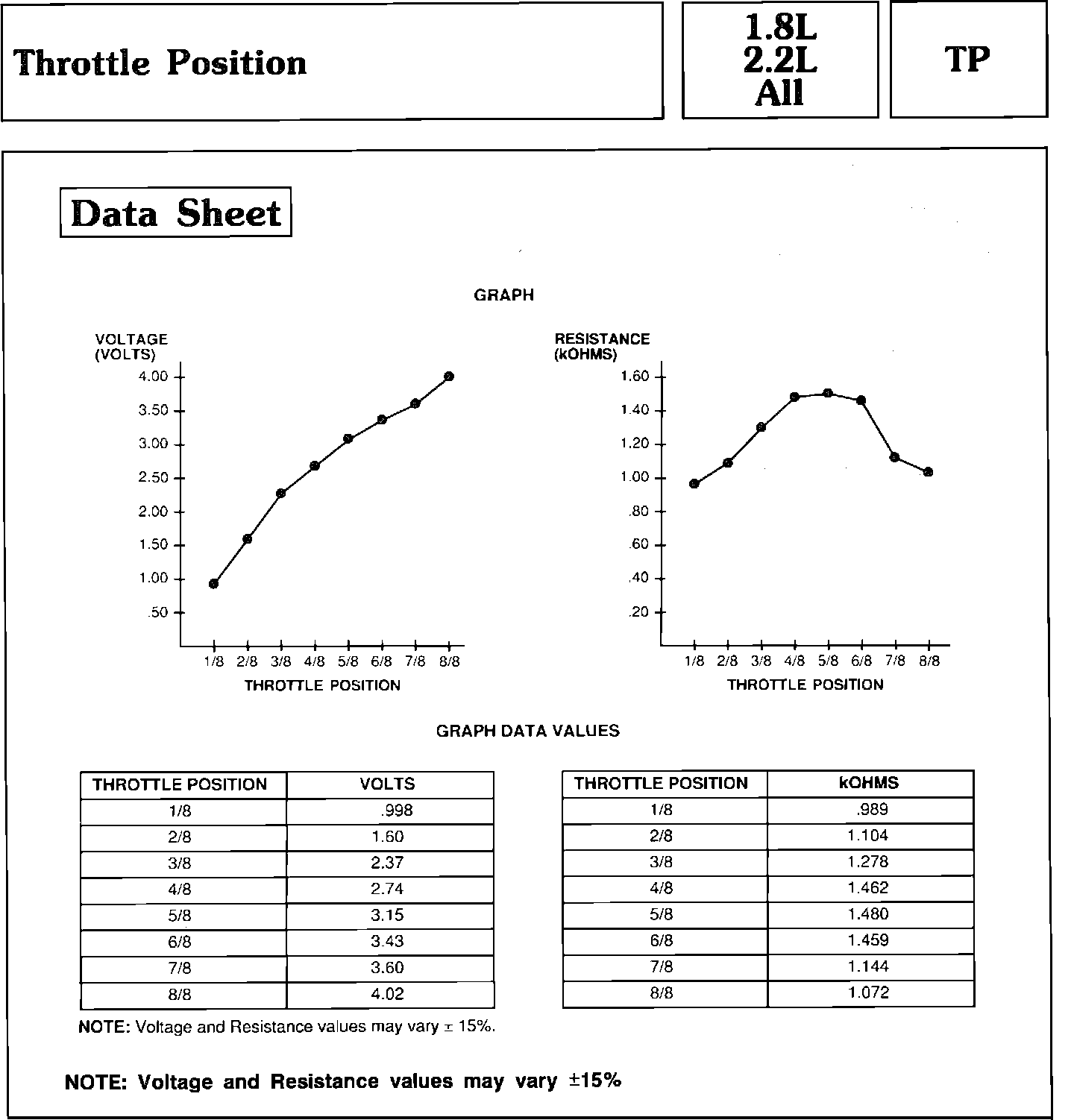

TP - Data Sheet

Pinpoint Test TP - Throttle Position:
