Coolant Temperature Sensor/Switch (For Computer): Locations

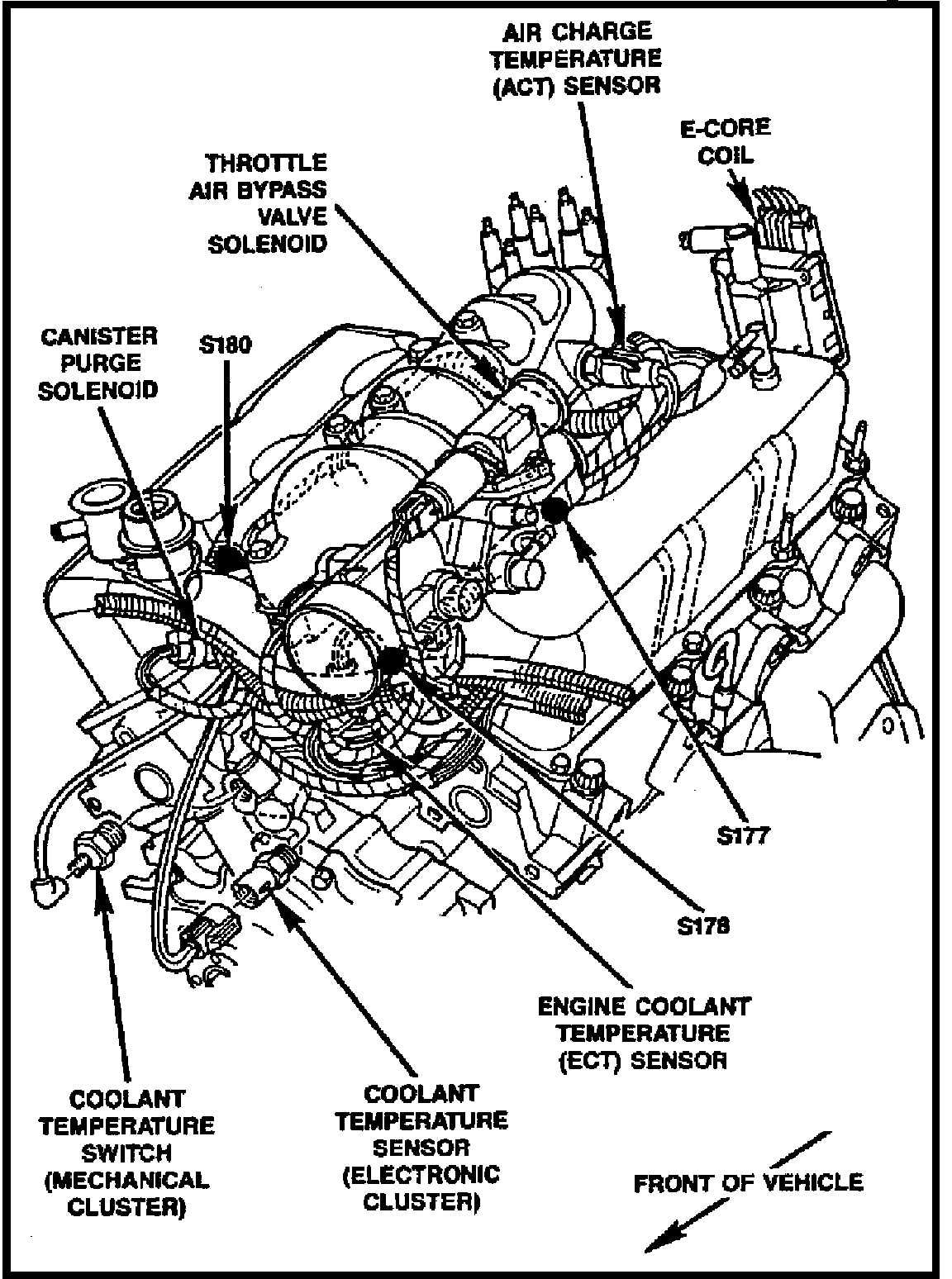

Front Of Engine:




Front Top Of Engine
