Home >> Ford >> 1989 >> Thunderbird V6-232 3.8L SC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Intake Manifold >> Reference Images

Reference Images

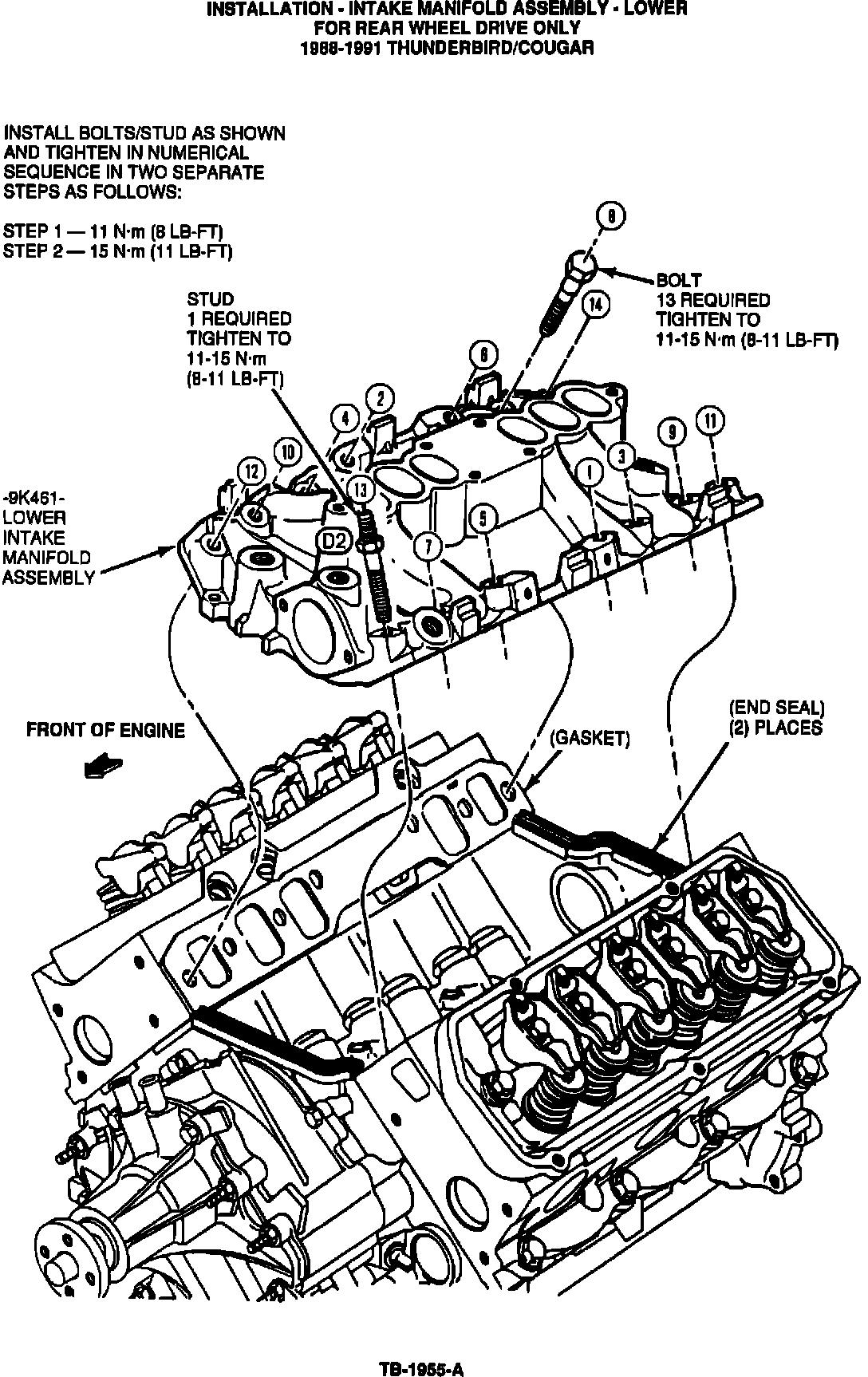

Figure 2: EFI Shown, SC Similar:
