LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1989
>>
Taurus V6-232 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
X - Integrated Relay Control Module
>>
X56 - X58
X56 - X58

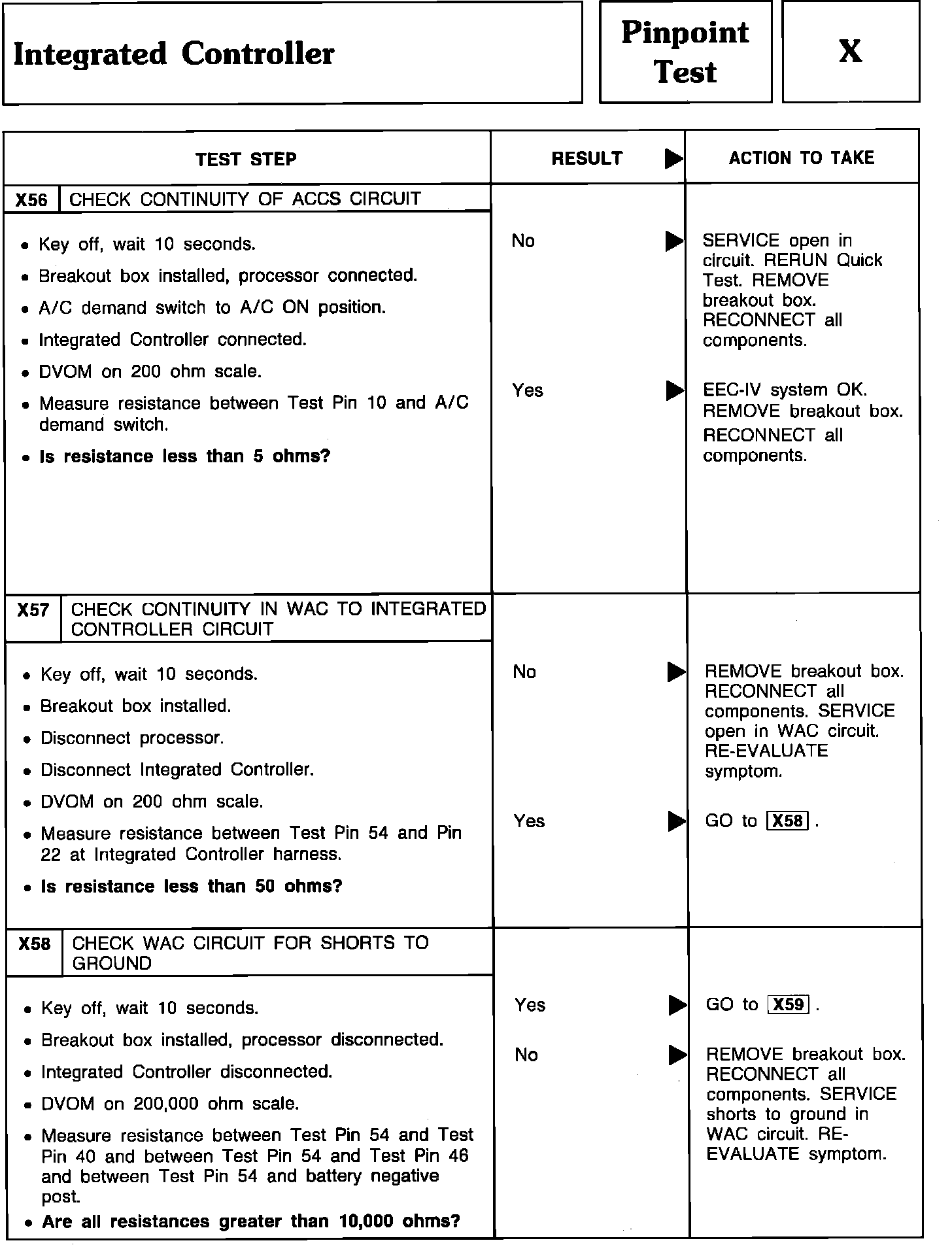

Pinpoint Test X56 Thru X58 - Integrated Controller:
