X - Integrated Relay Control Module
>>
X100 - X101
X100 - X101

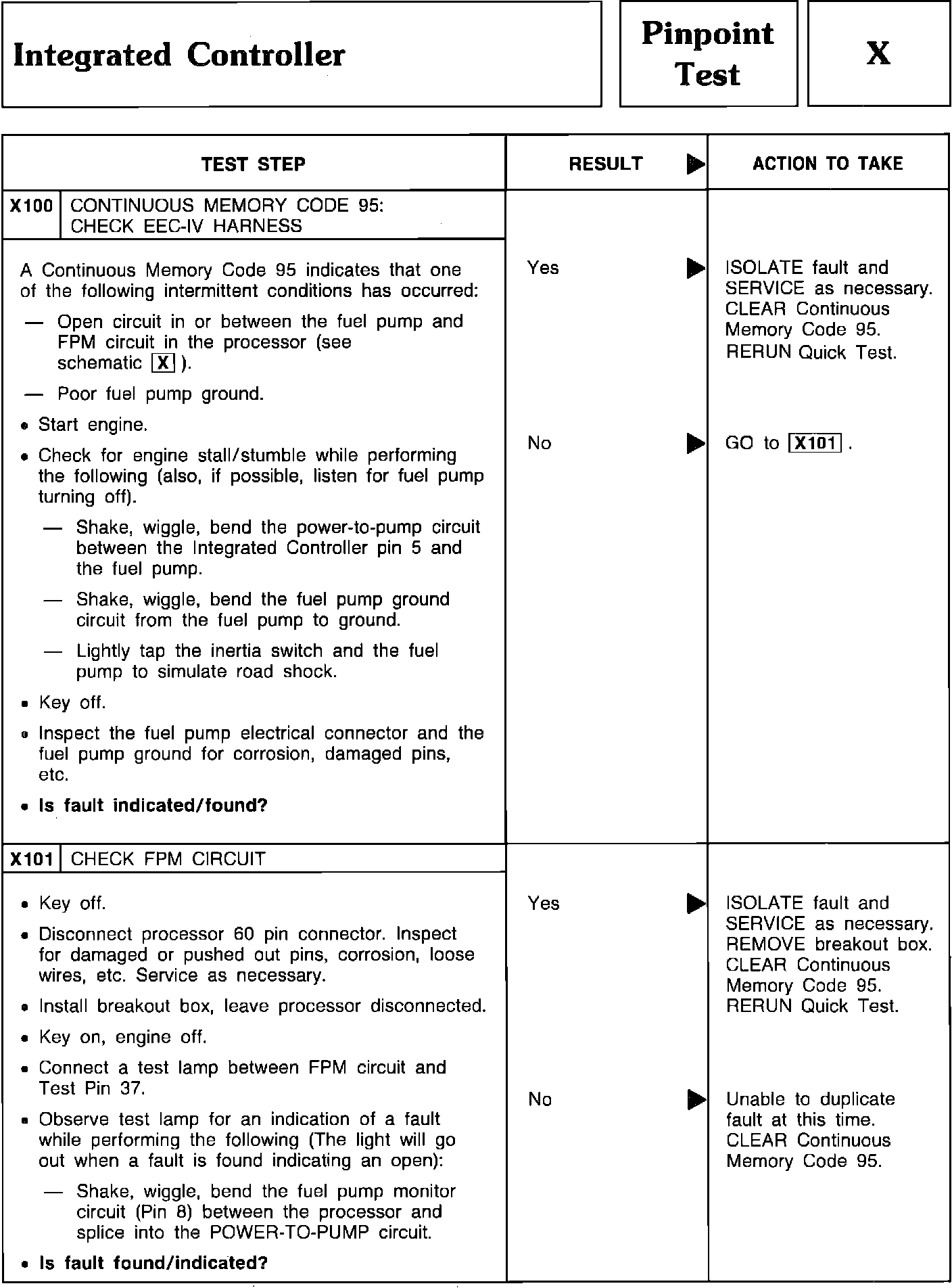

Pinpoint Test X100 & X101 - Integrated Controller:
