X - Integrated Relay Control Module
>>
X30 - X32
X30 - X32

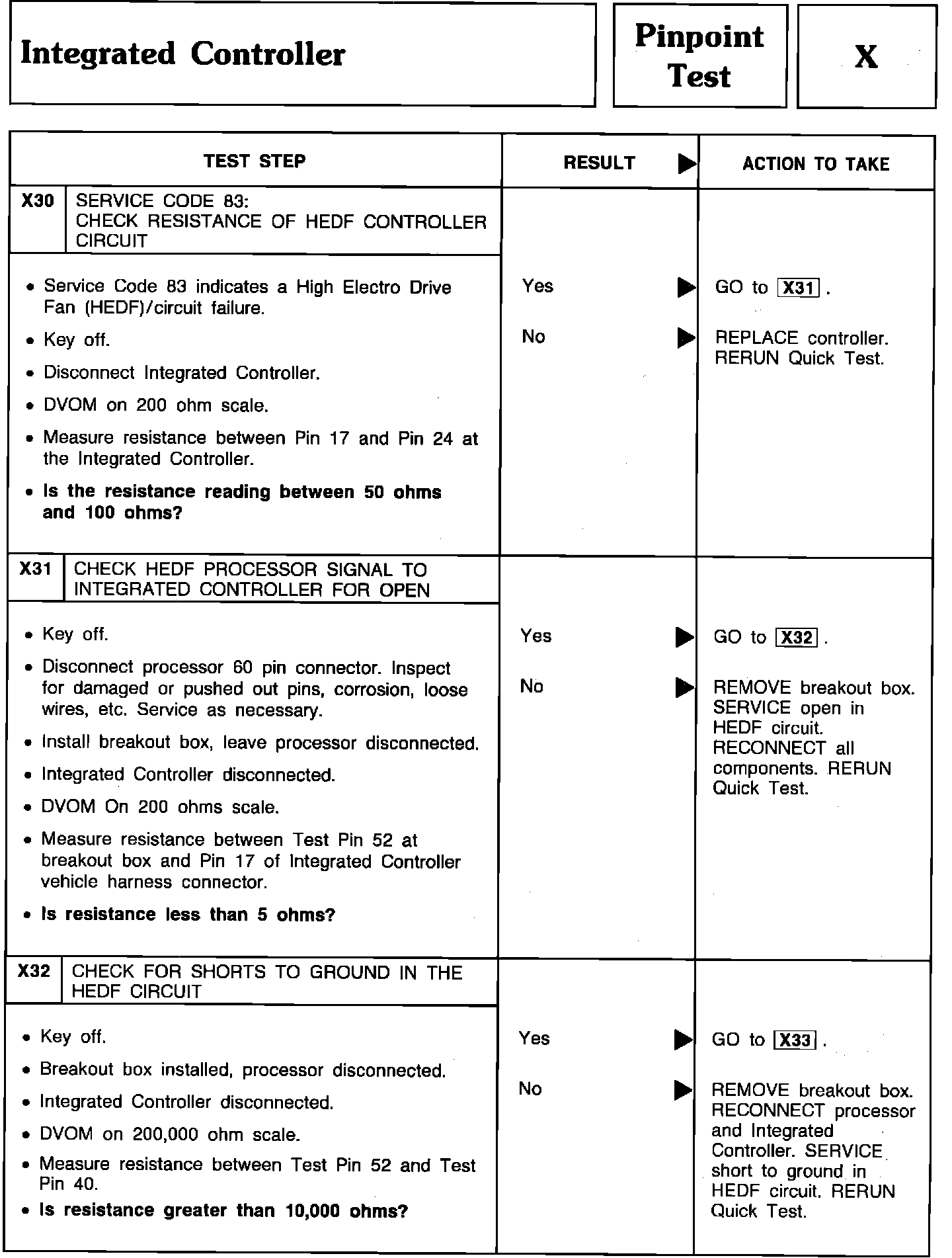

Pinpoint Test X30 Thru X32 - Integrated Controller:
