Home >> Ford >> 1989 >> Ranger 2WD V6-177 2.9L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Barometric Pressure Sensor

Barometric Pressure Sensor

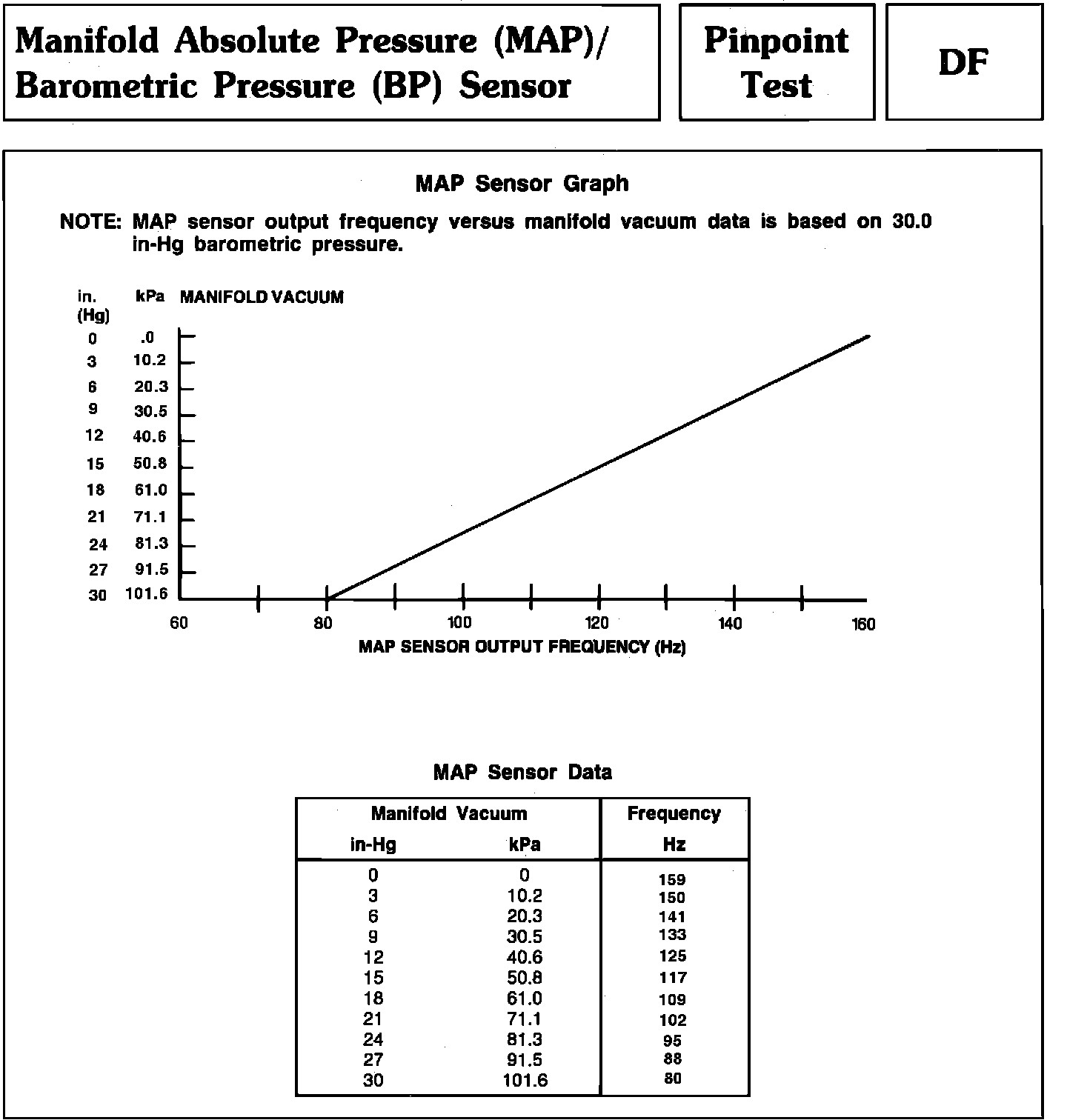

Pinpoint Test DF - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) Sensor:



MANIFOLD ABSOLUTE AND BAROMETRIC PRESSURE SENSORS:
