Computers and Control Systems: Locations

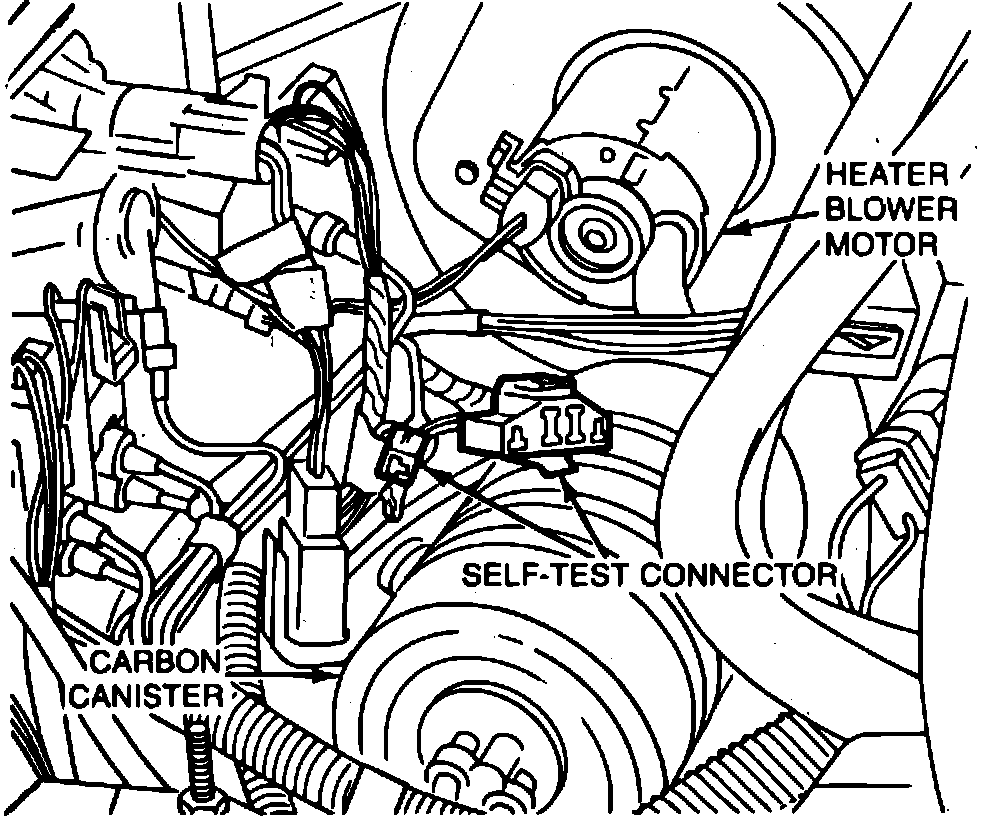

Self-test connector location. Bronco II & Ranger:

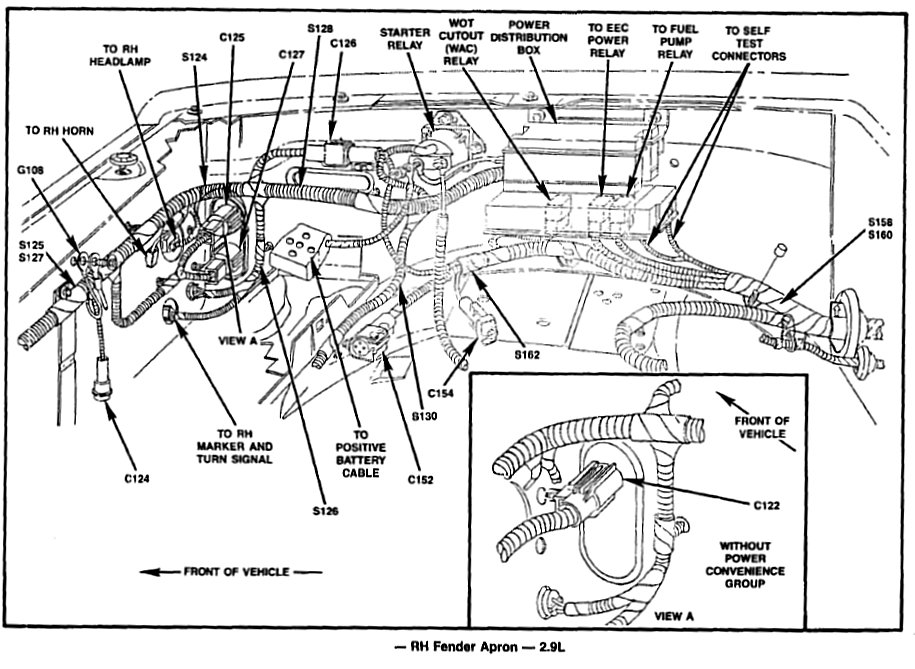

2.9L

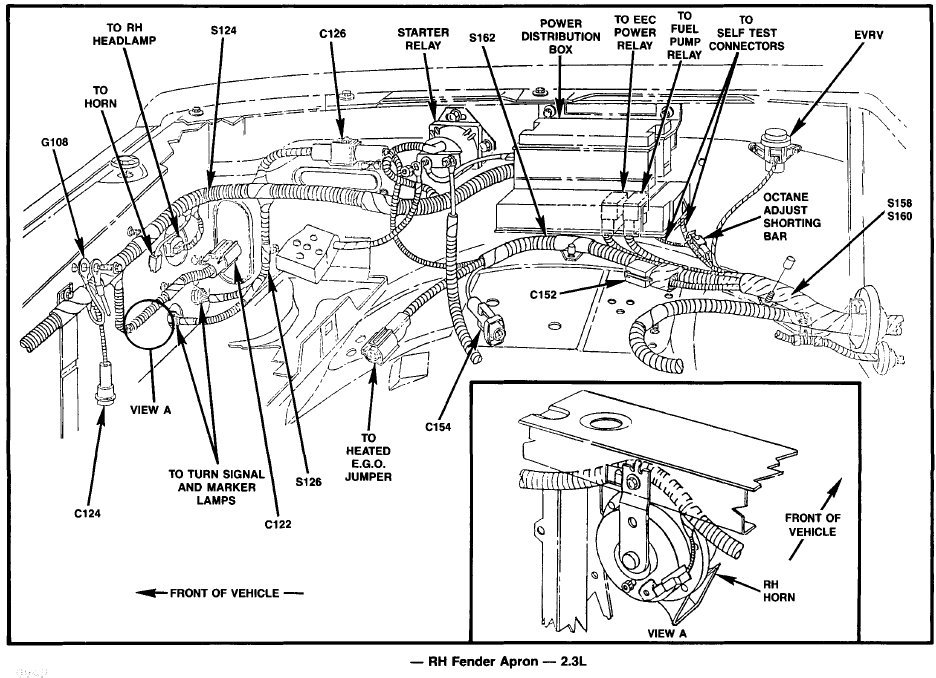

2.3L
