SP19: Speed Control Switch Check (Will Not Set)
SP19: Speed Control Switch Check (Will Not Set)

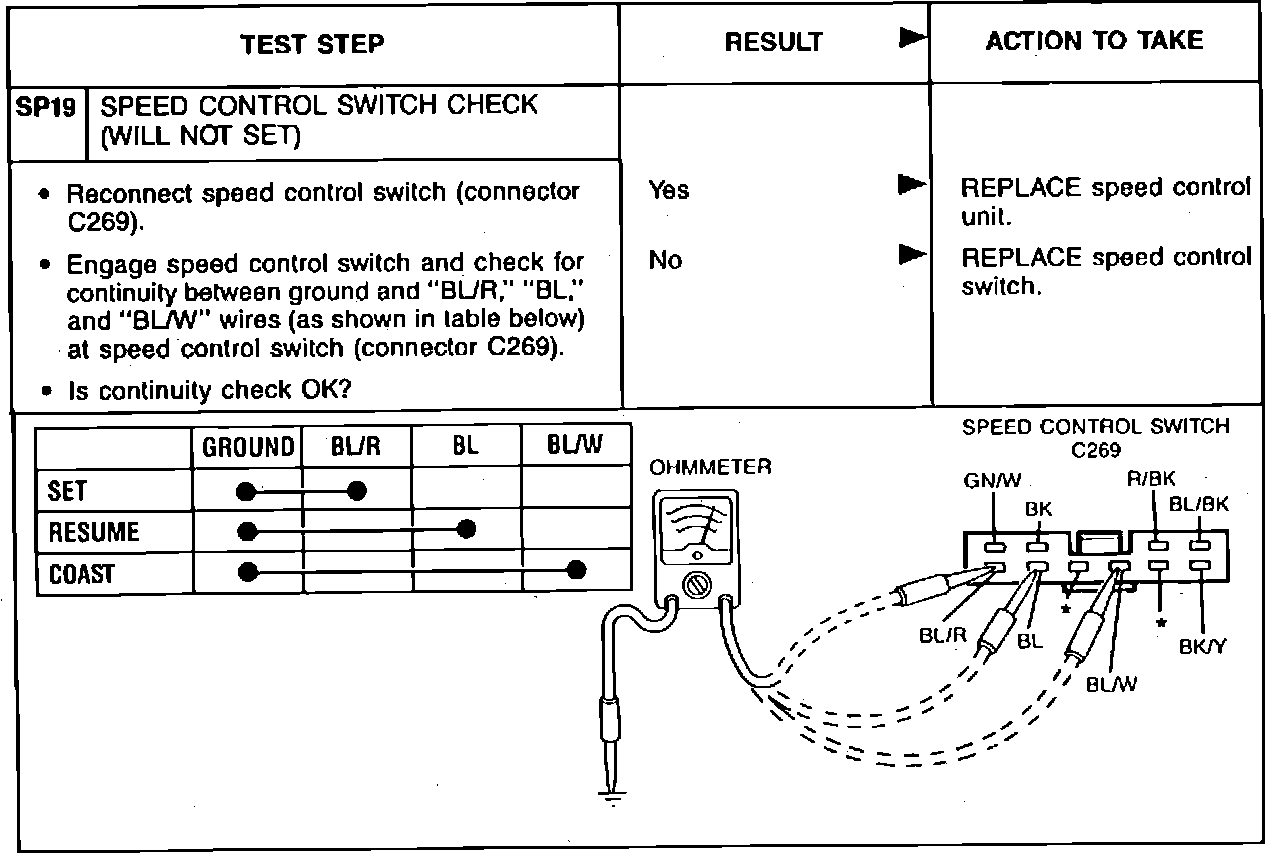

Fig. 77 Diagnosis and Testing (Part 19 Of 30):
