Home >> Ford >> 1988 >> Thunderbird V6-232 3.8L >> Repair and Diagnosis >> Lighting and Horns >> Lamp Control Module >> Locations

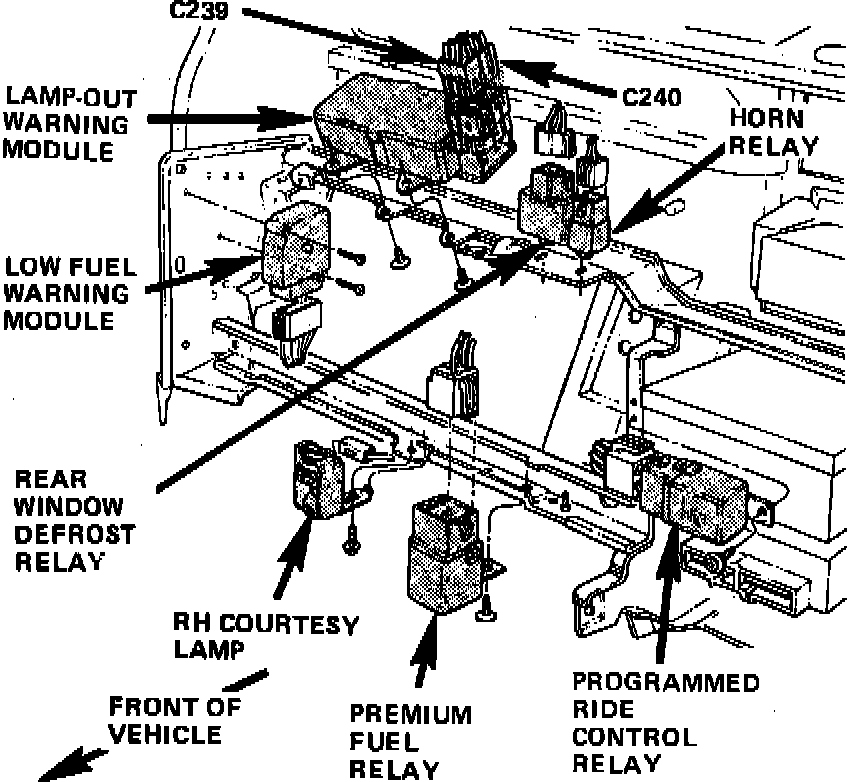

Lamp Control Module: Locations

RH Side I/P Wiring:




Behind RH Side Of I/P
