Home >> Ford >> 1988 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch >> Testing and Inspection >> W/ MTC

W/ MTC

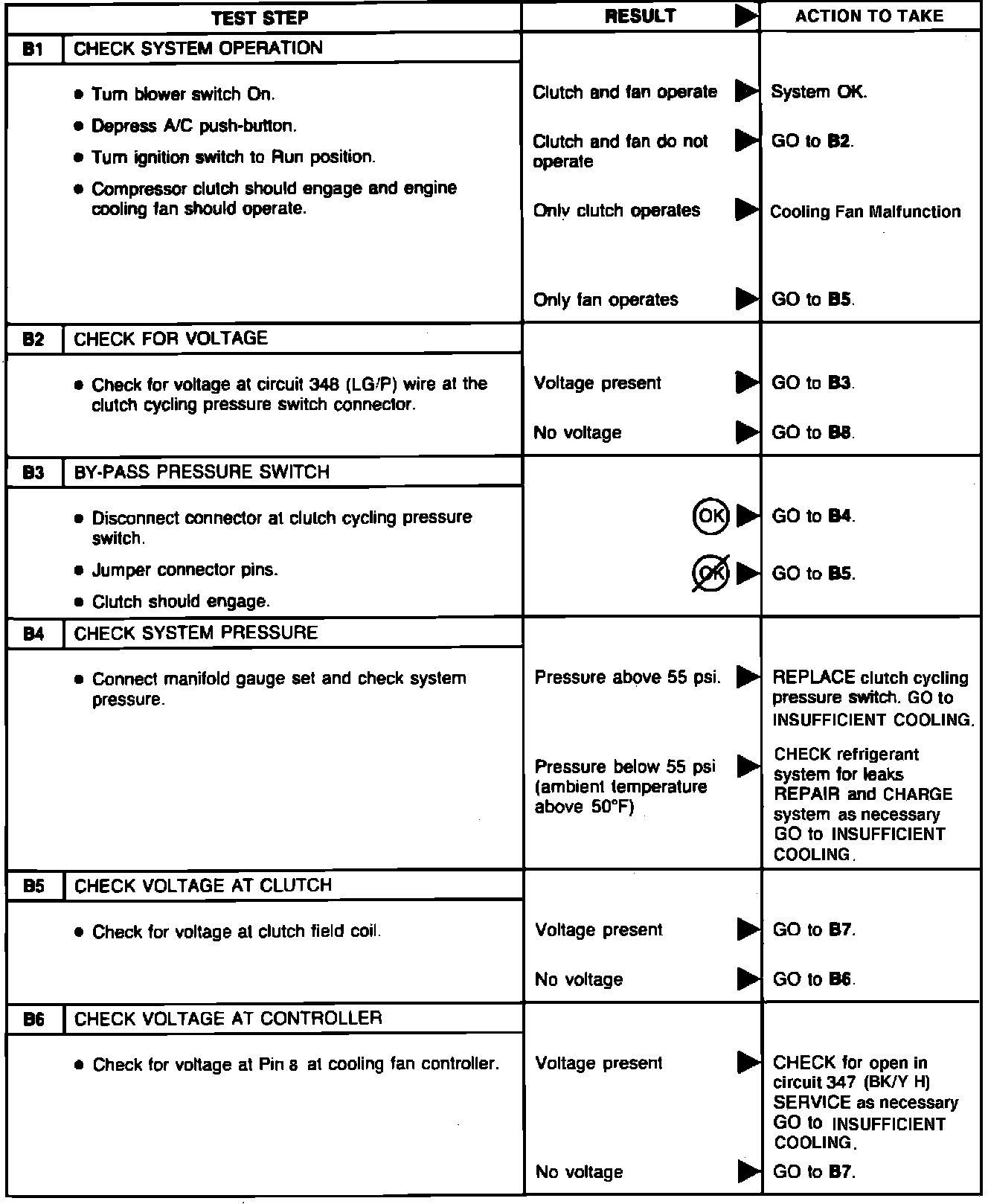

Compressor clutch diagnosis (Part 1 of 2).:

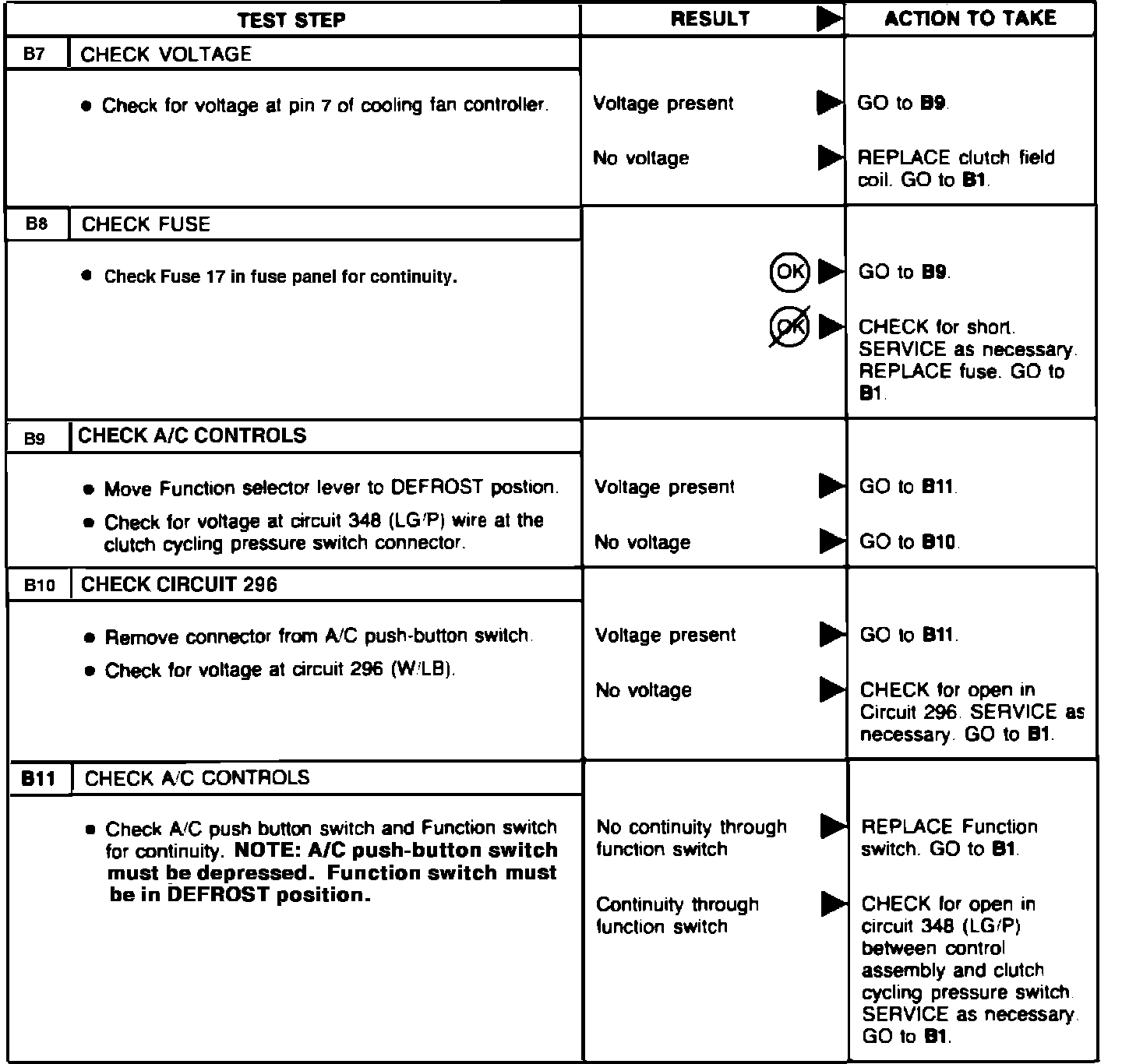

Compressor clutch diagnosis (Part 2 of 2):
