Feedback Carburetor System
>>
Wiring Diagrams
Wiring Diagrams

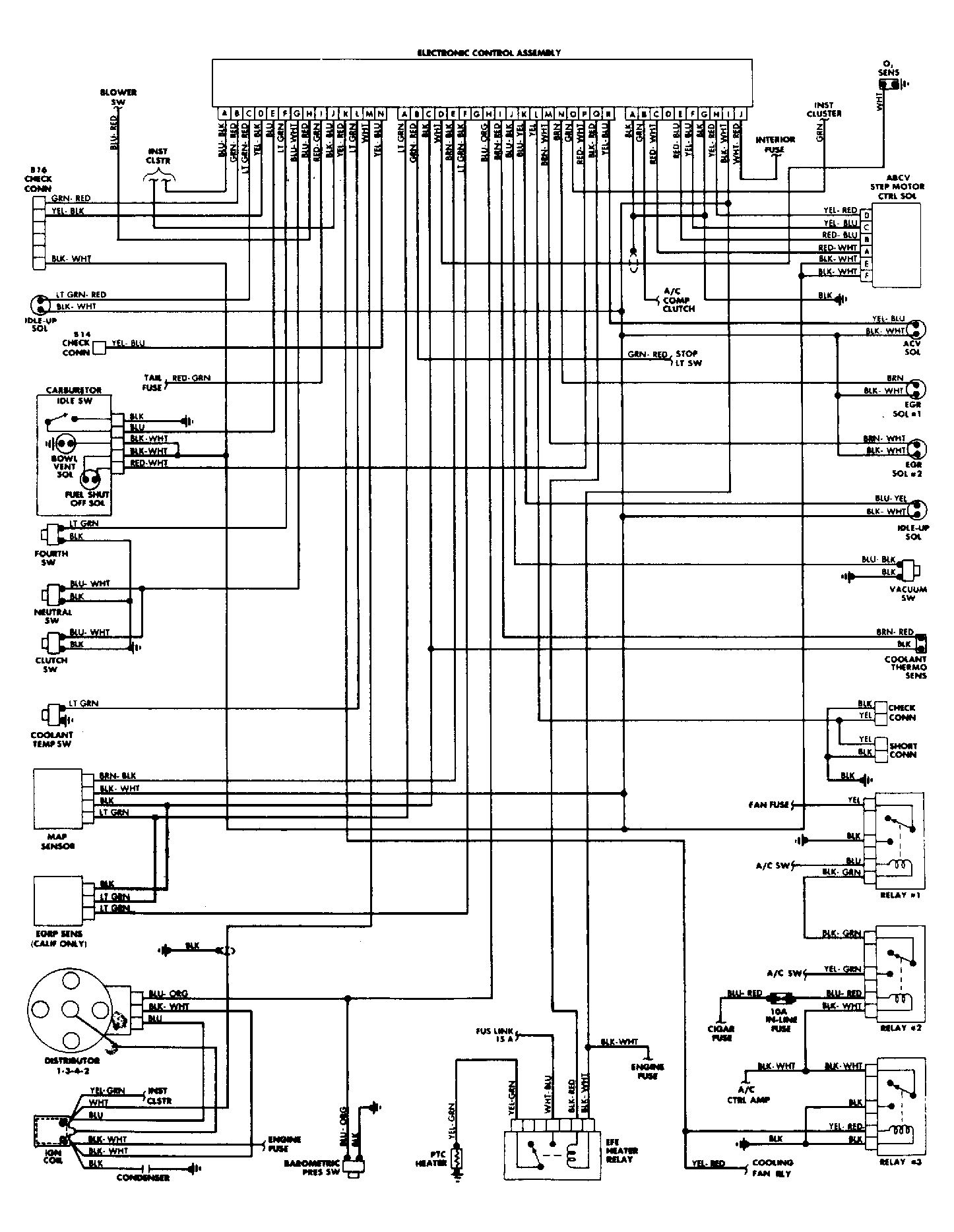

Fig 1: Exhaust Emission System Wiring Schematic (Festiva)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
