Engine Control Module
Engine Control Module

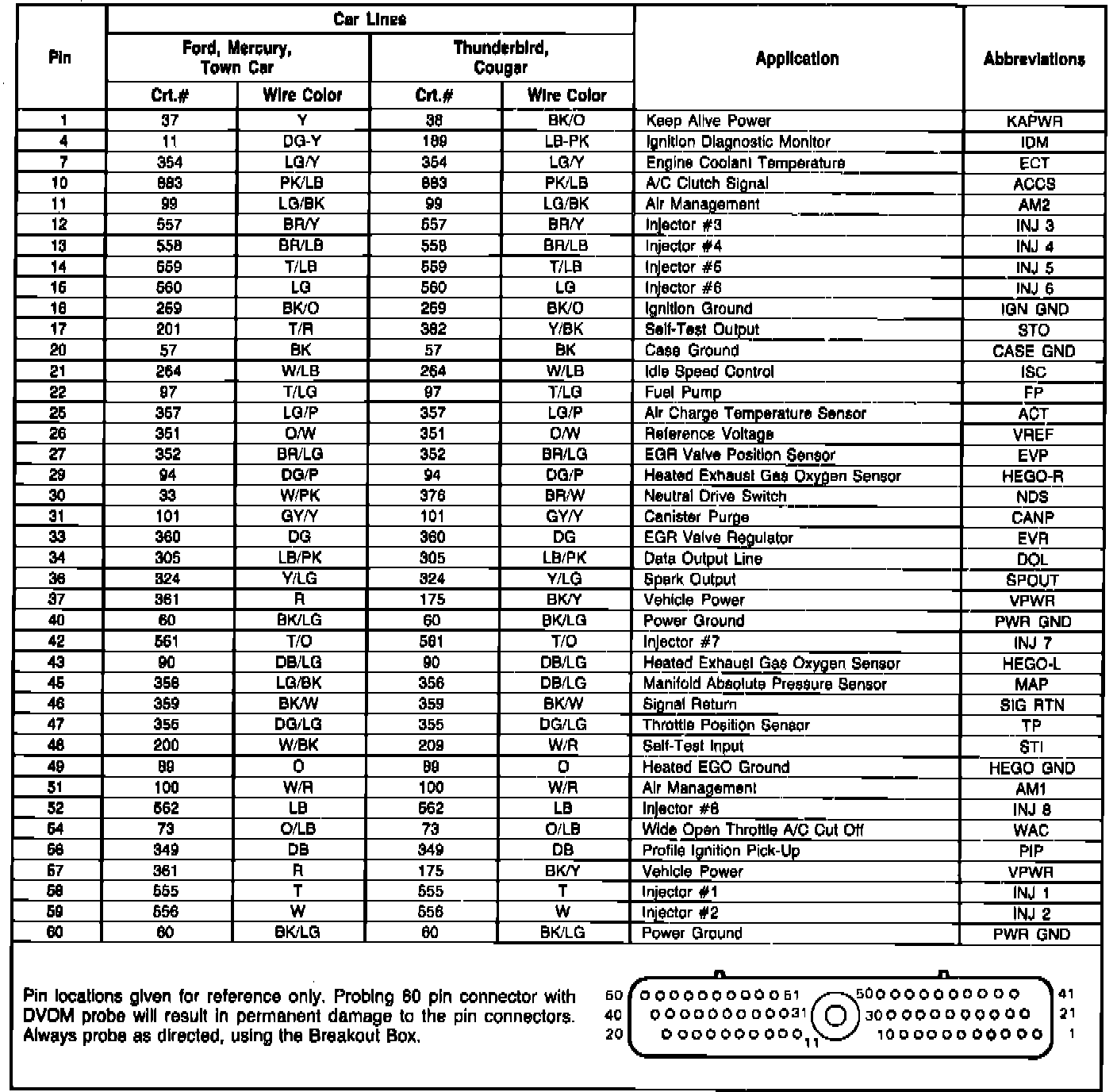

Fig. 319 EEC-IV module connector pin usage. 1987 Ford, Mercury & Lincoln Town Car w/V8-302 SEFI engine:
