LEMON Manuals: Even more car manuals for everyone
Home >> Ford >> 1987 >> Tempo AWD L4-140 2.3L HSC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Timing >> Testing and Inspection >> Steps 10 Through 12

Steps 10 Through 12

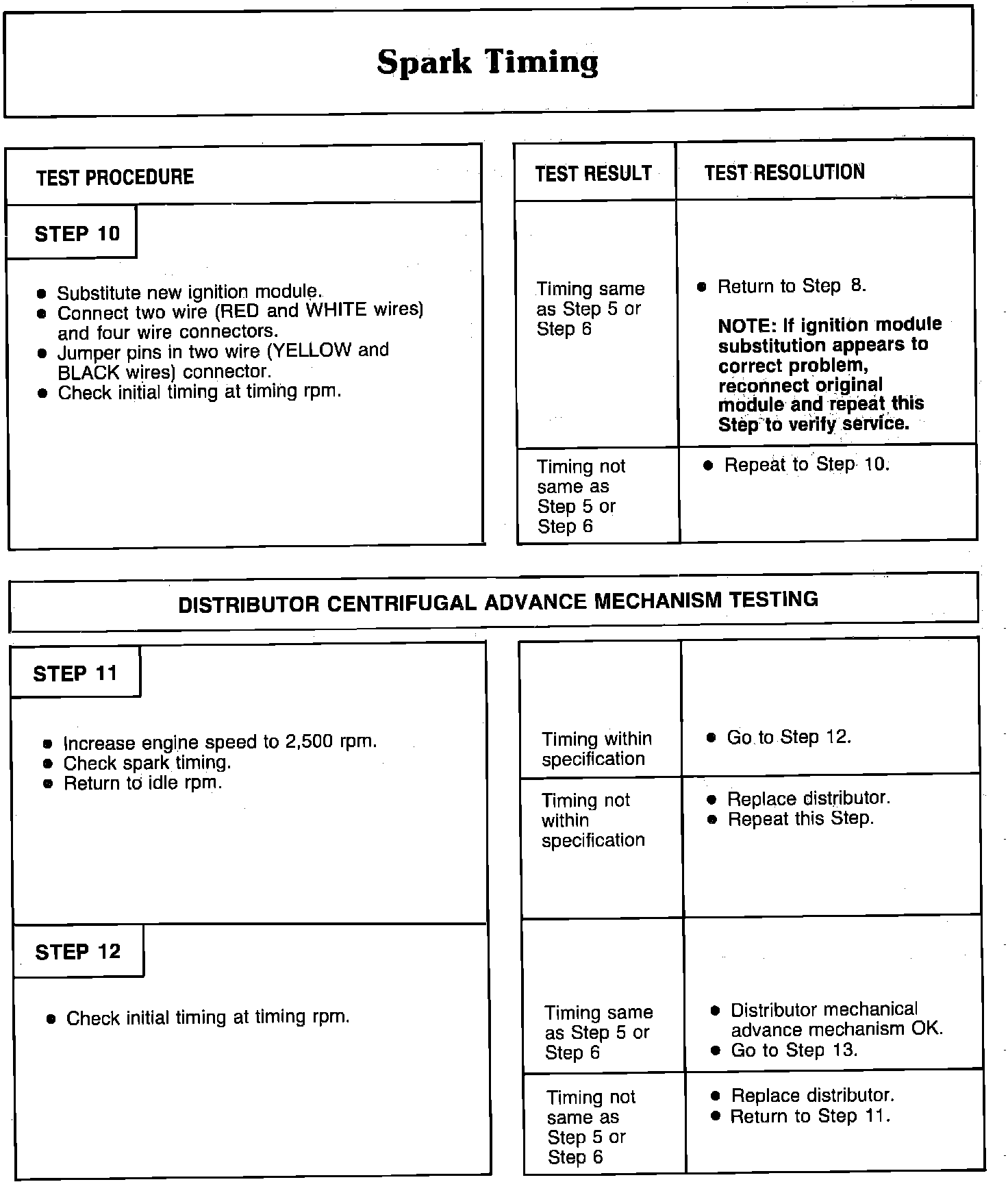

Spark Timing, Steps 10 thru 12:
