Home >> Ford >> 1987 >> Tempo AWD L4-140 2.3L HSC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

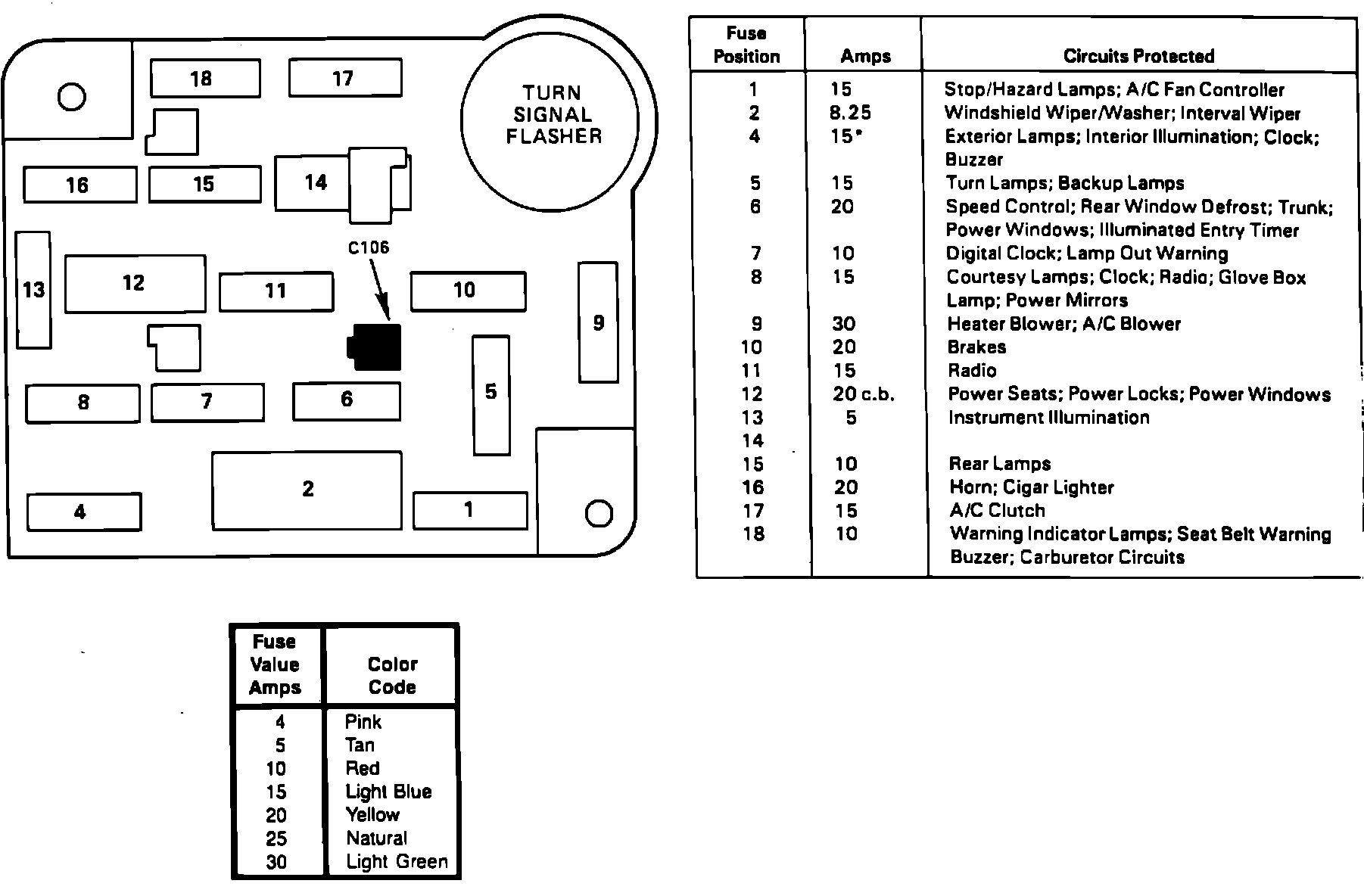

Fig. 1 Fuse Panel:
