Home >> Ford >> 1987 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Relay >> Locations

Starter Relay: Locations

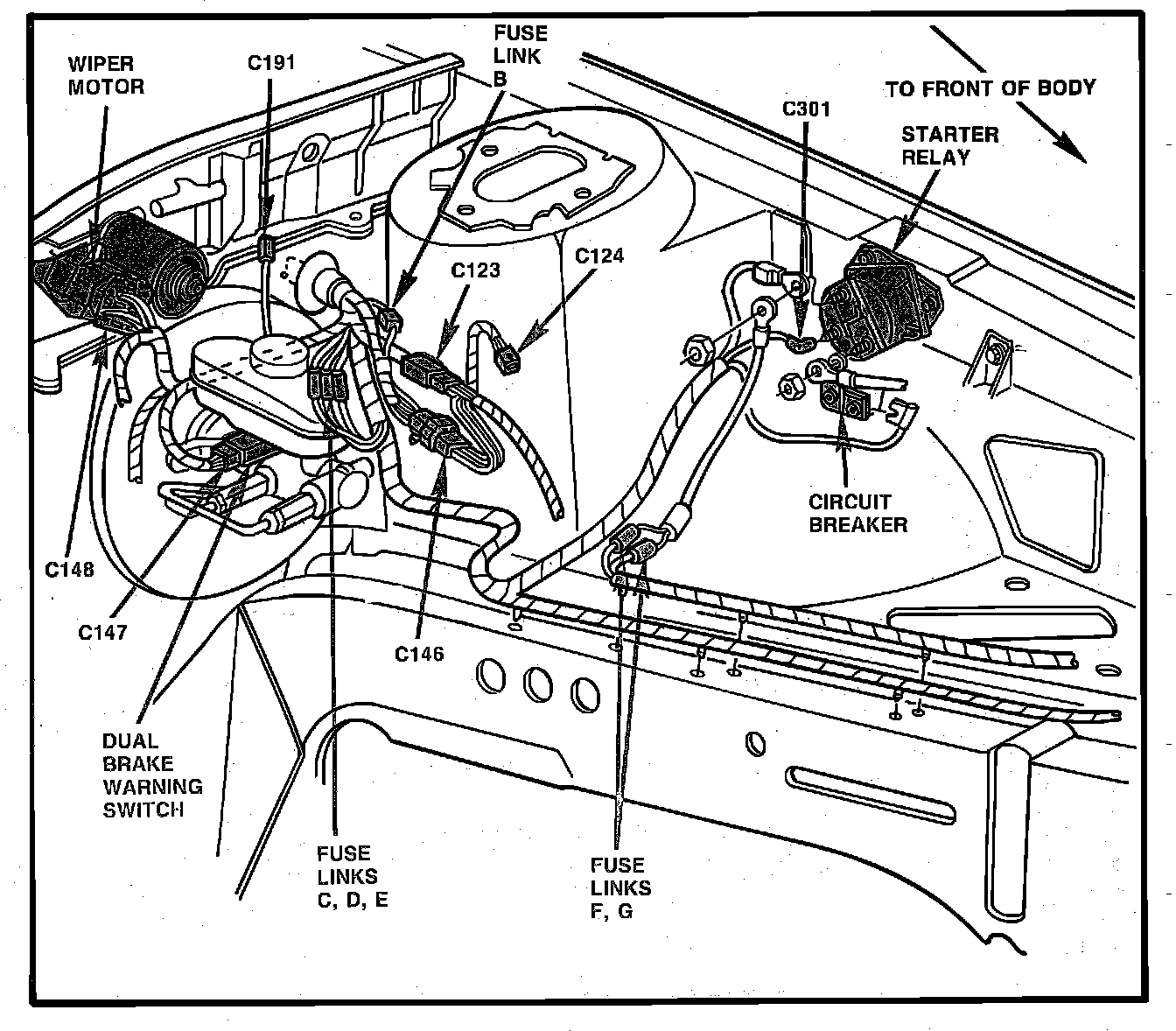

Component Locations - LH Apron Wiring:
