Evaporative Emissions System: Locations

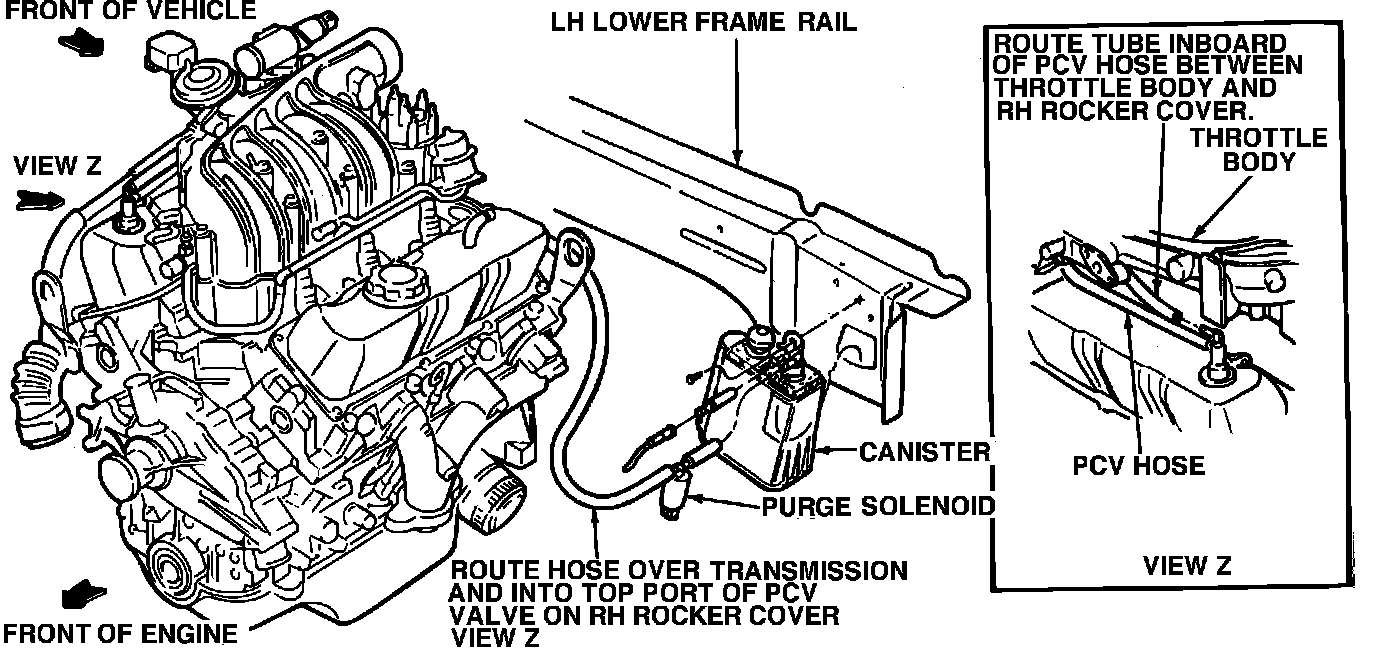

Fig. 13 Canister Venting System. 1986 - 88 Taurus & Sable W/V6-182 Engine.:
