Home >> Ford >> 1987 >> Taurus V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

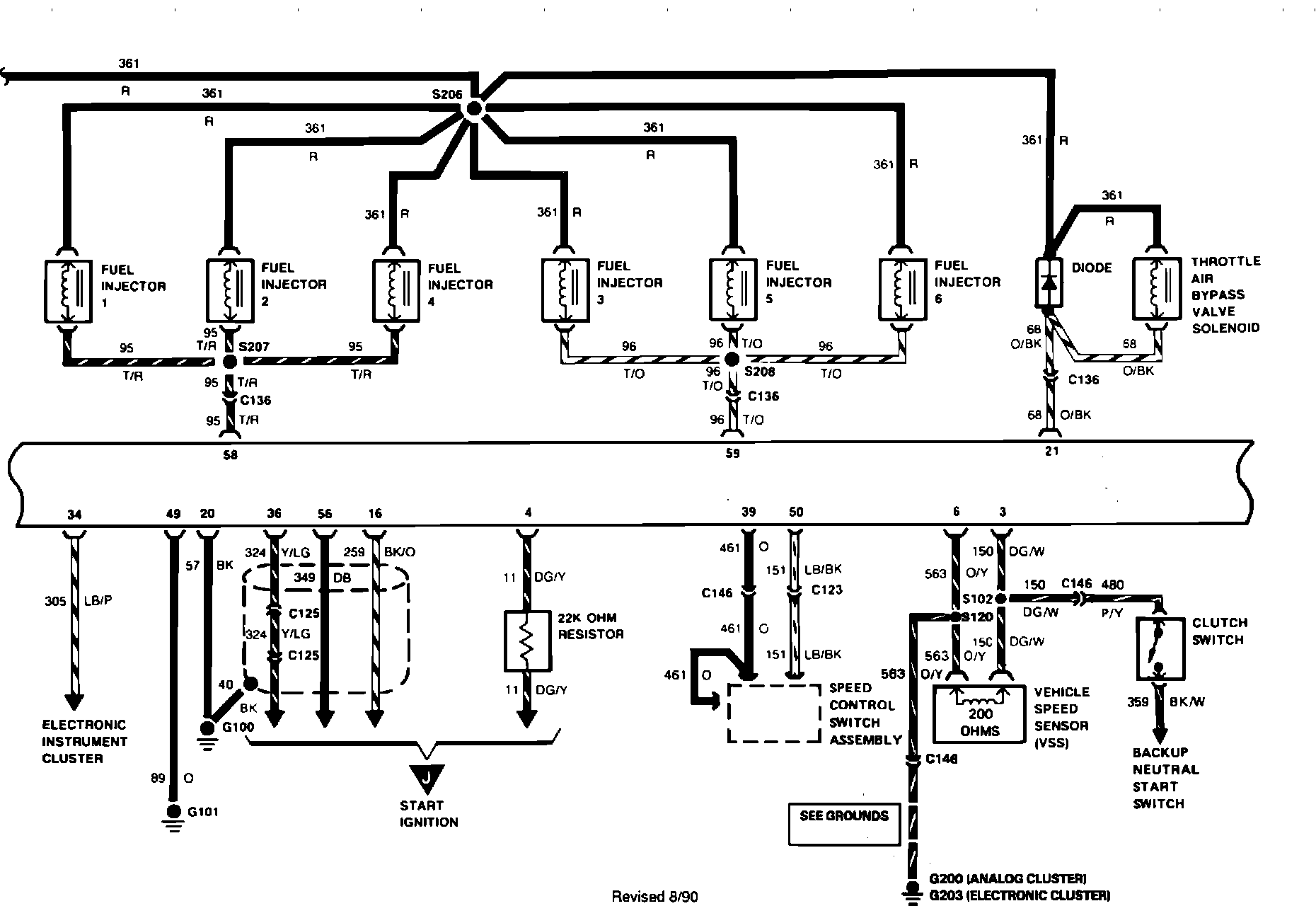

Wiring Diagram - Electronic Engine Control:

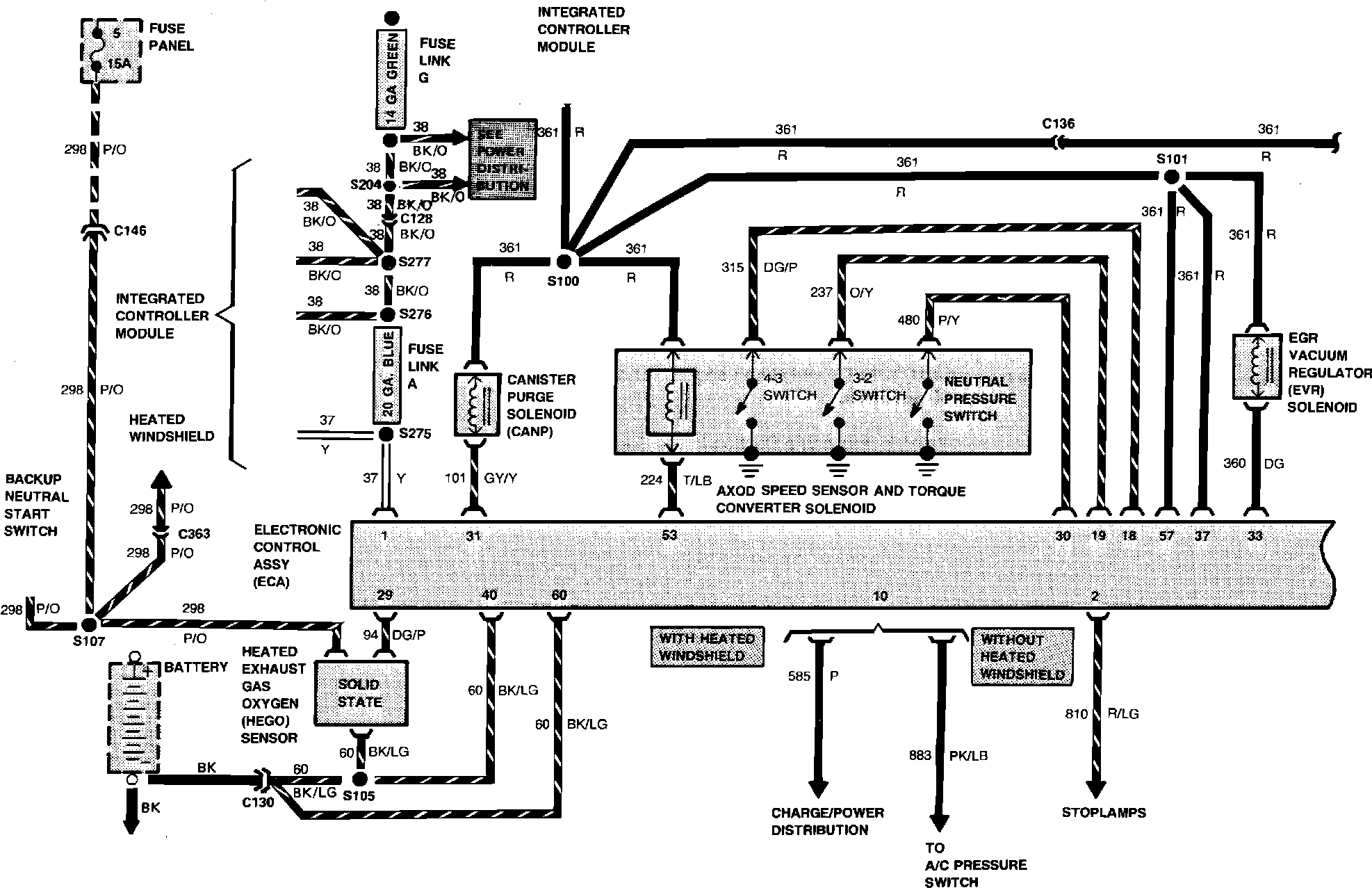

Wiring Diagram - Electronic Engine Control:

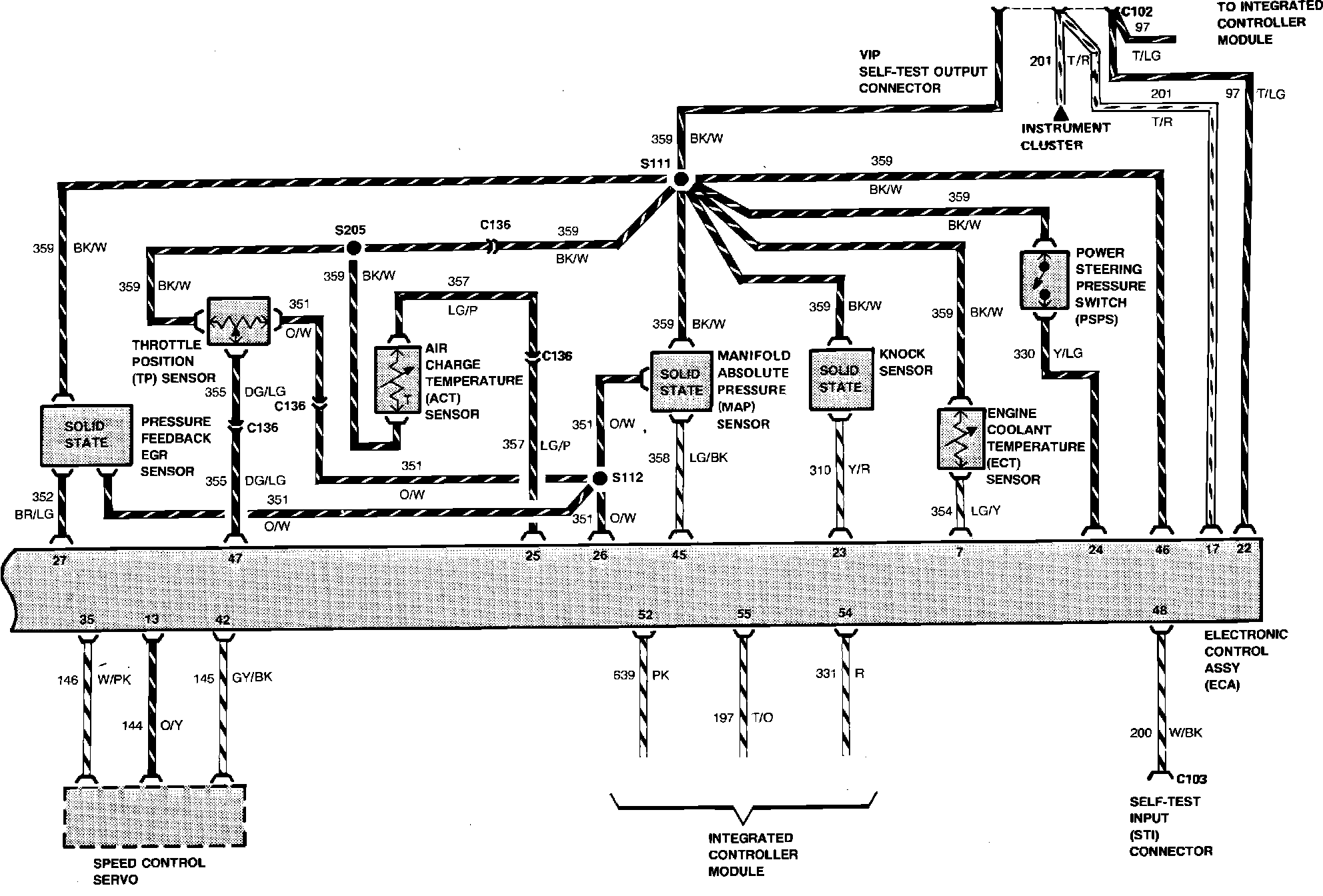

Wiring Diagram - Electronic Engine Control:






Wiring Diagram - Integrated Controller:
