Home >> Ford >> 1987 >> Taurus L4-153 2.5L HSC >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Control Module >> Locations

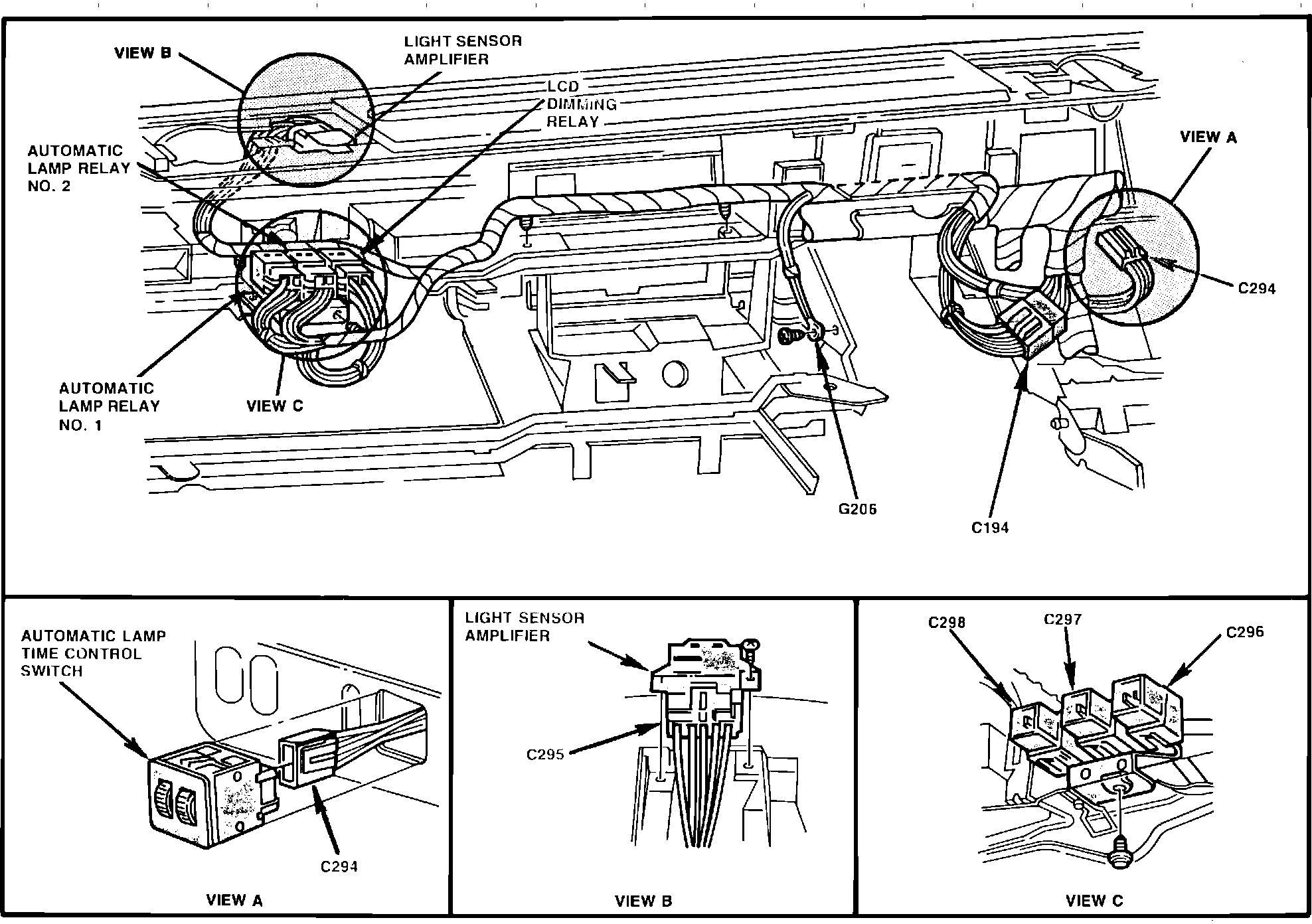

Headlamp Control Module: Locations

Instrument Panel Wiring, Autolamps.:




Behind I/P To Right Of Radio

Applicable to: 1986-87 Models
