Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
G: Speed Sensor
G: Speed Sensor

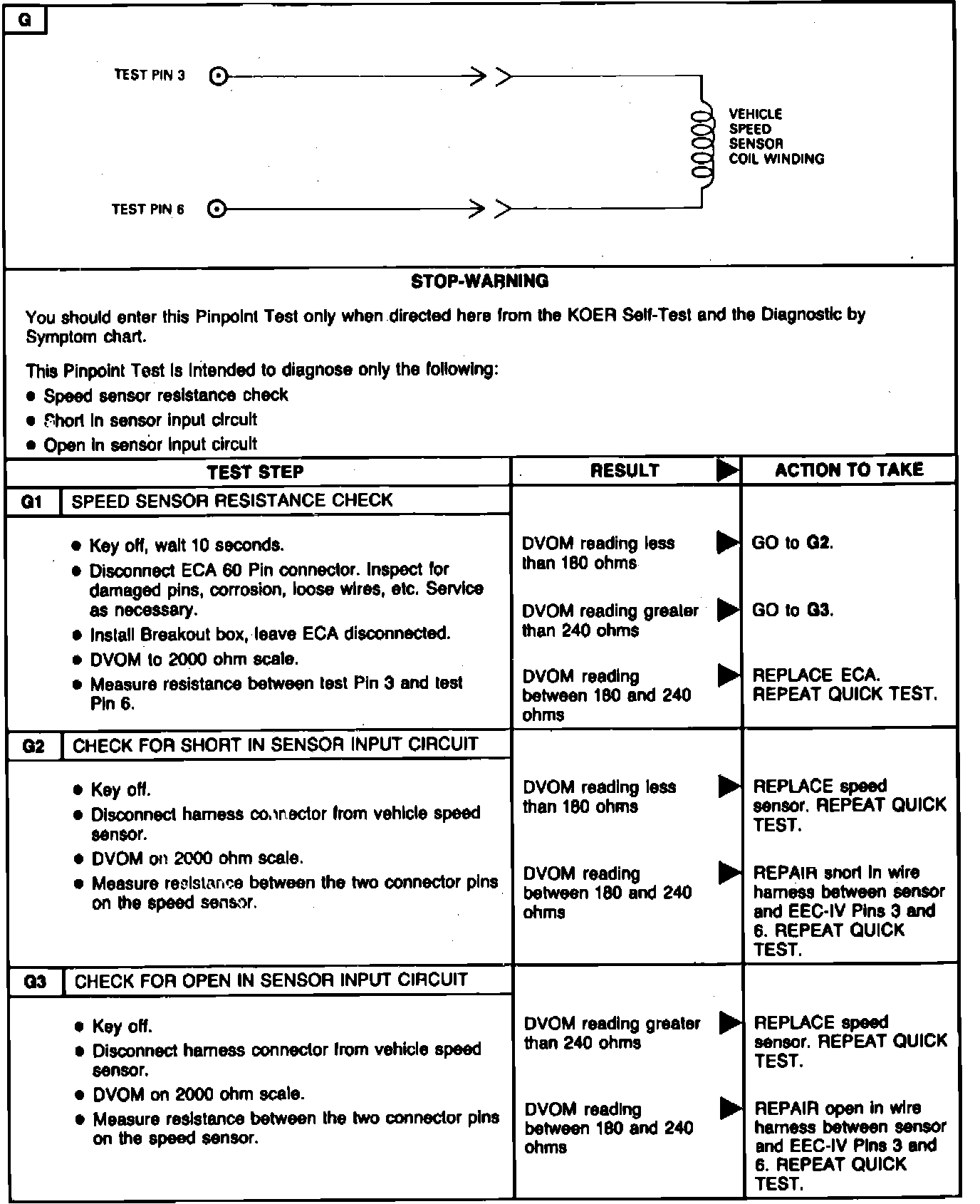

Fig. 26 Speed sensor, Pinpoint Test G:
