Home >> Ford >> 1987 >> Ranger 2WD L4-122 2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Timing >> Testing and Inspection >> Steps 10 Through 12

Steps 10 Through 12

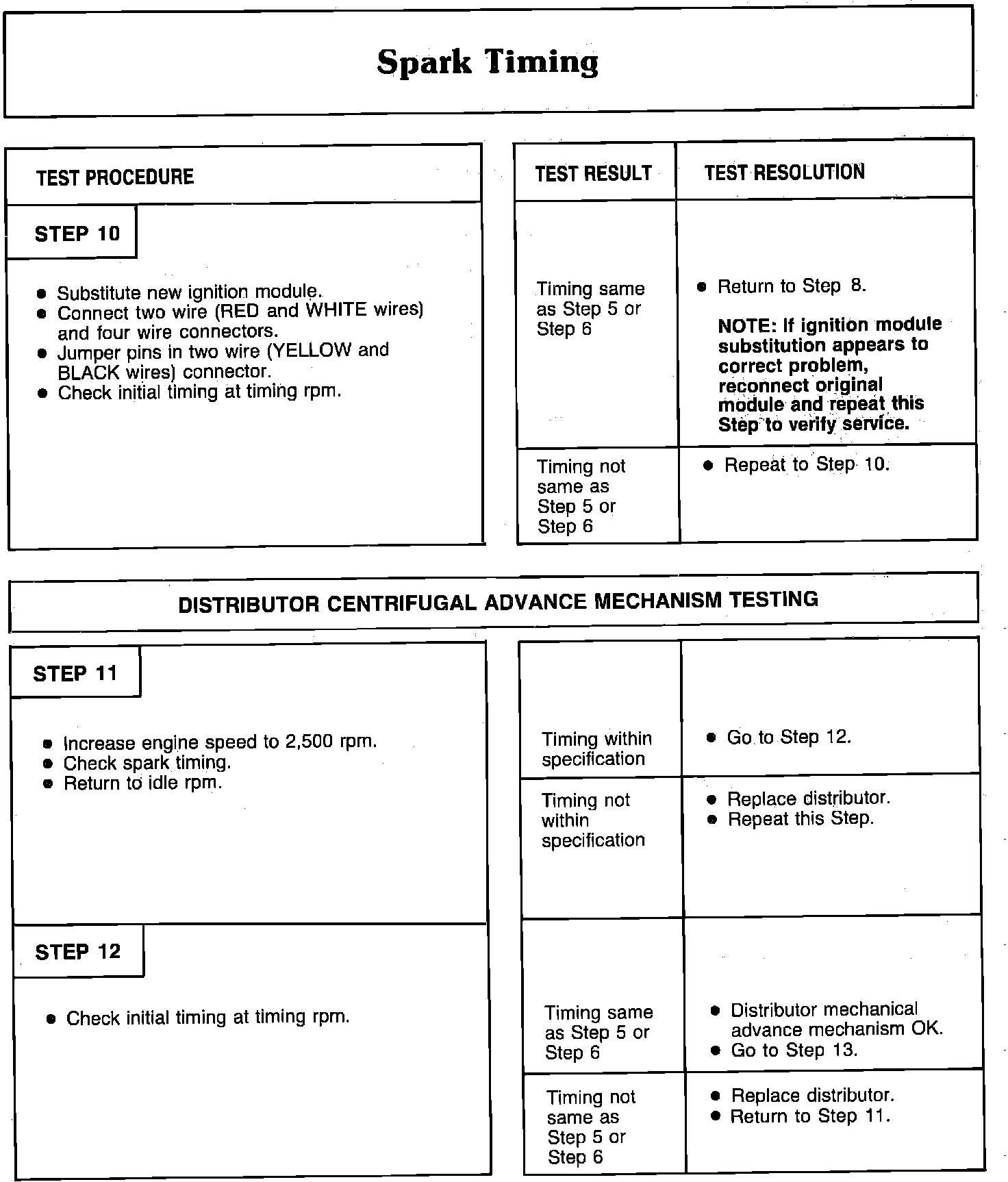

Spark Timing, Steps 10 thru 12:
