Home >> Ford >> 1987 >> E 350 Van V8-6.9L DSL >> Repair and Diagnosis >> Powertrain Management >> Glow Plug System >> Glow Plug Control Module >> Locations

Glow Plug Control Module: Locations

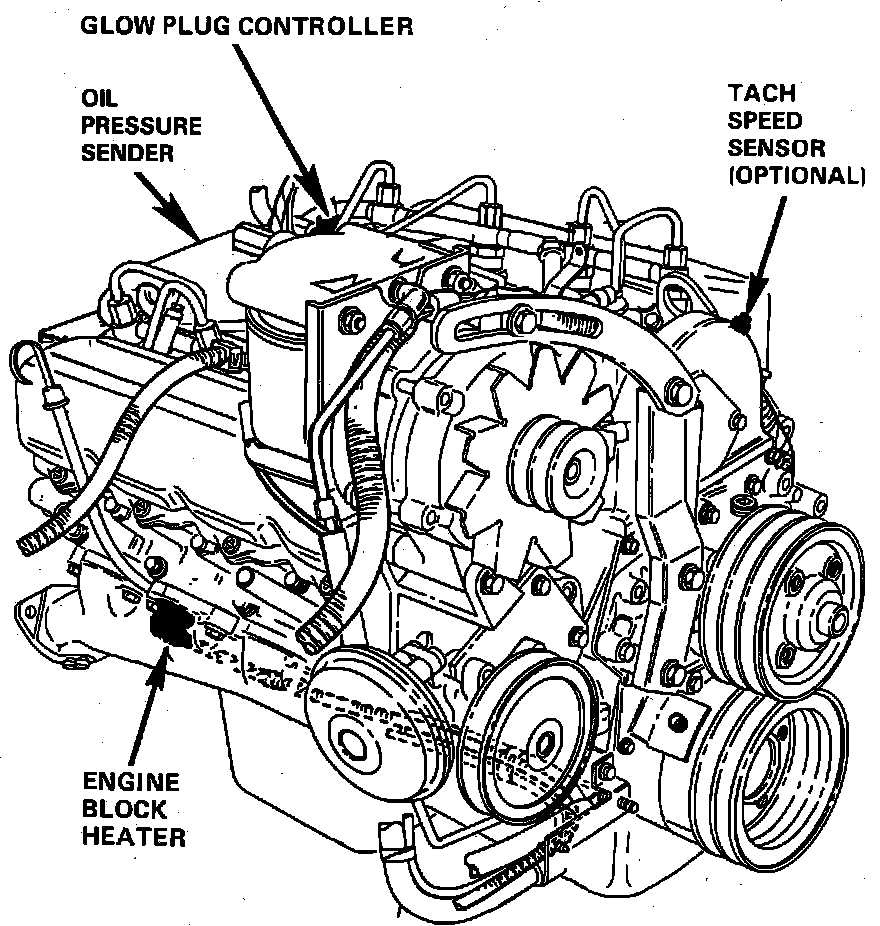

LH Side Of Engine.:

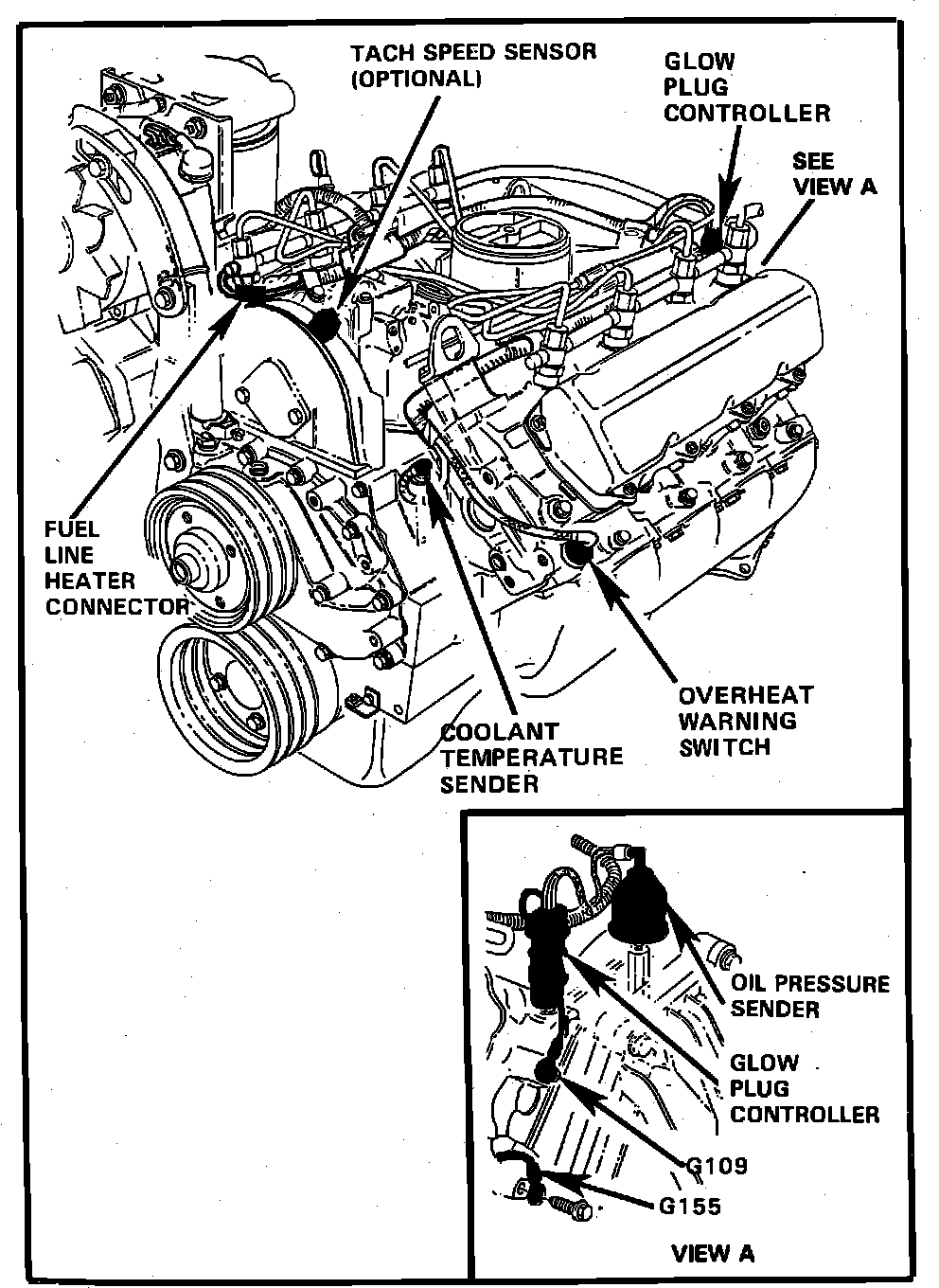

RH Side Of Engine.:
